SKU: M49-MRO-TMK-0
30 reviews
Price:
$185.00

Description

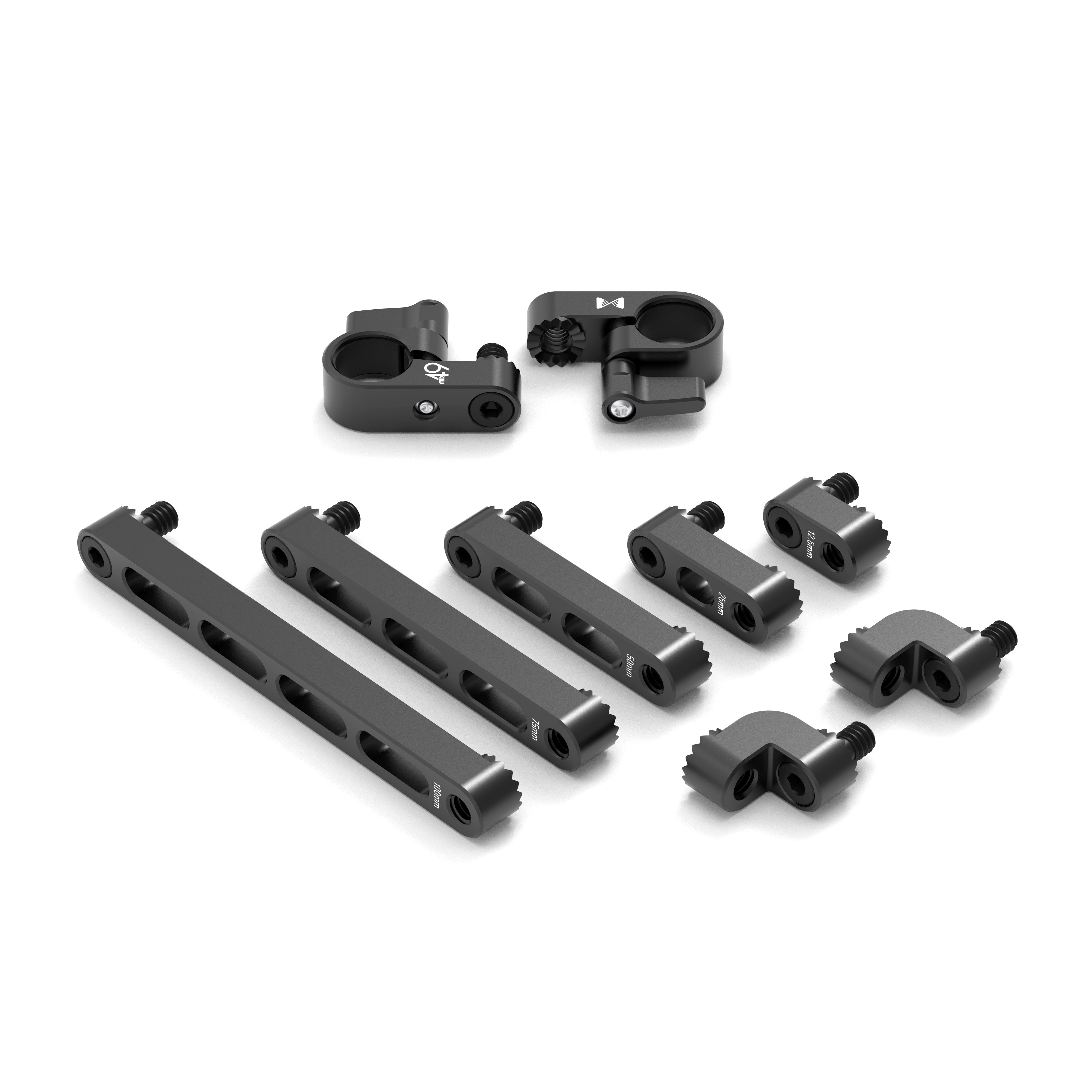

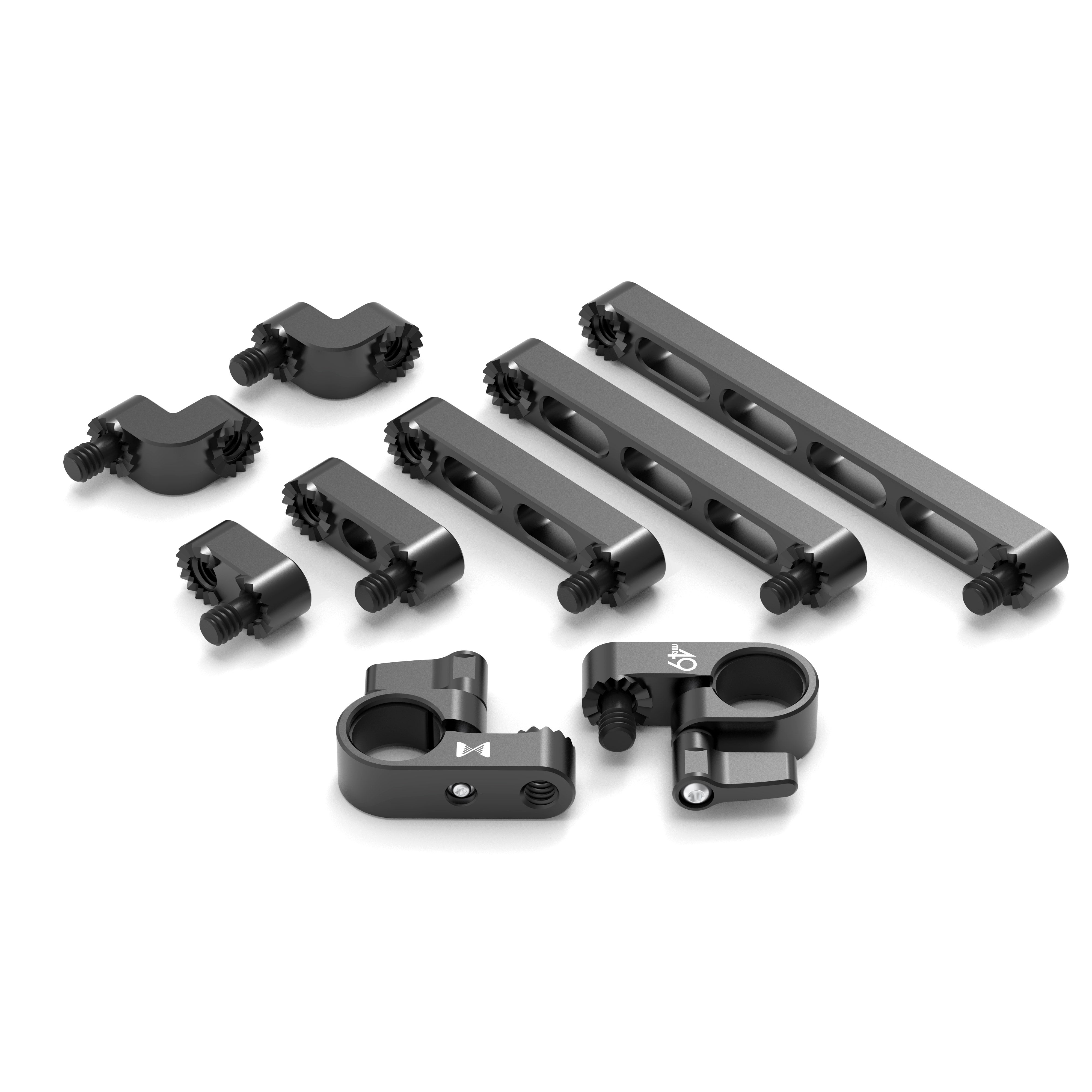

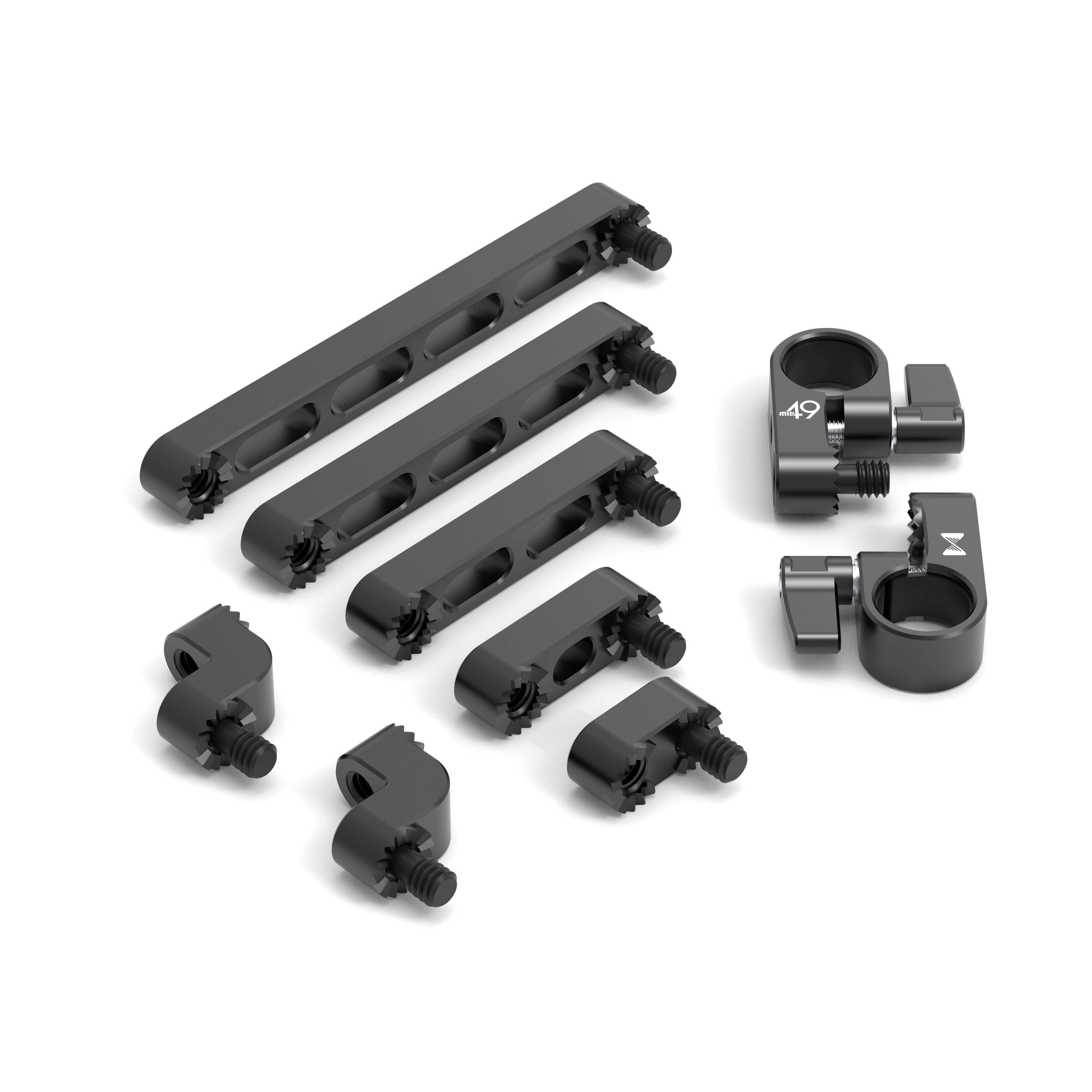

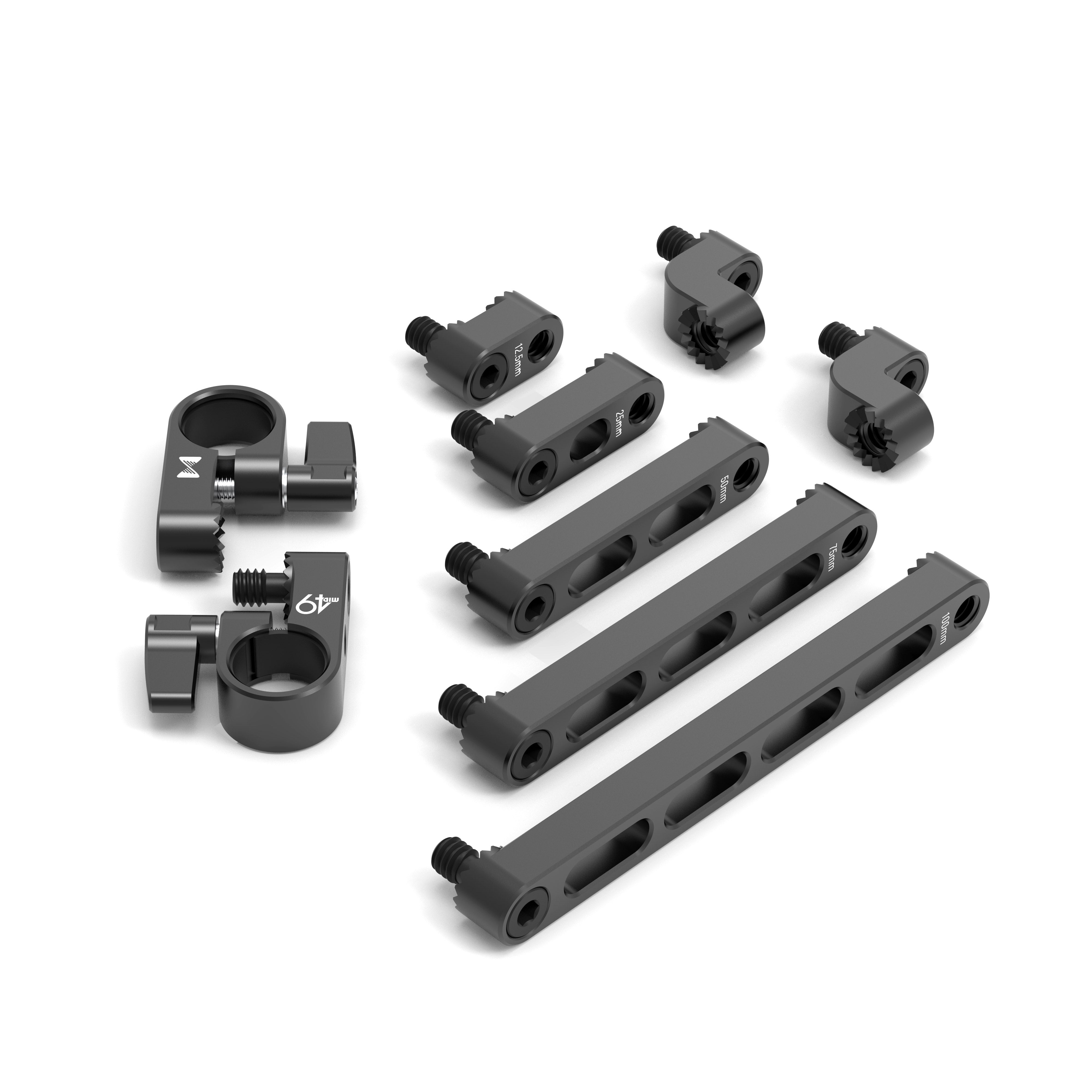

The Micro Rosette TWIST Mount Kit (Build Your Own) is a modular accessory mounting arm with your choice of quick-release spuds on each end, allowing attachment of a wireless transmitter, monitor, audio receiver, and more to a camera.

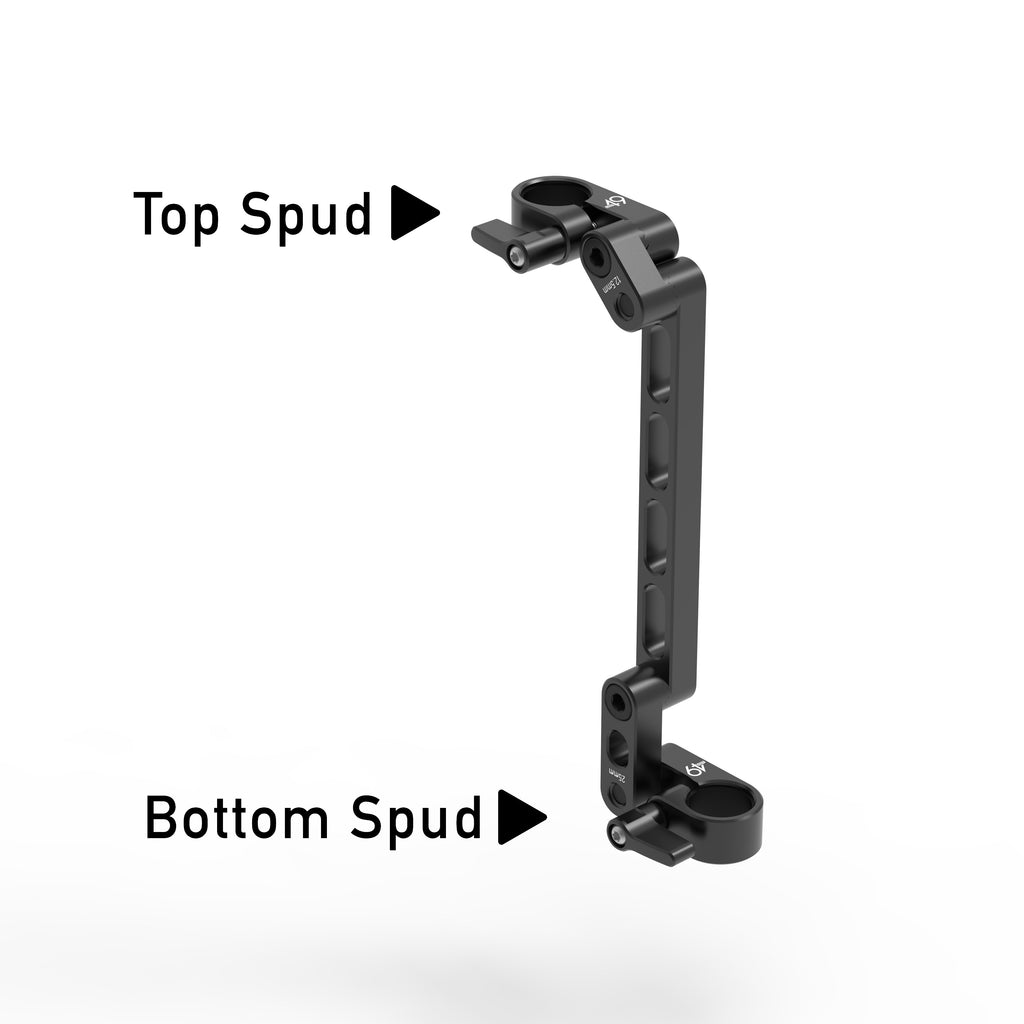

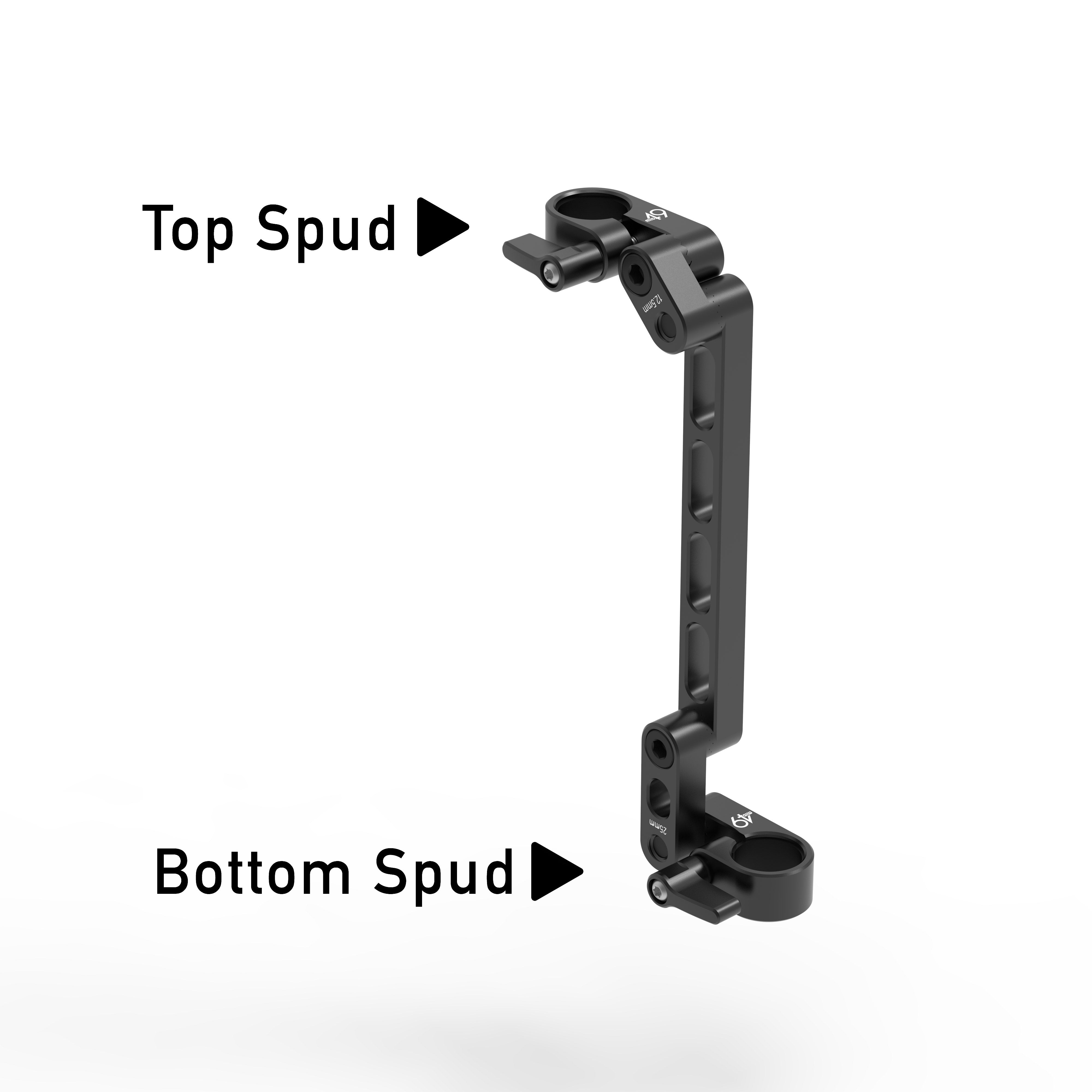

Install the bottom spud on your camera or cheeseplate and the top spud on your monitor or accessory, then link them together with a Micro Rosette Arm.

Micro Rosette to TWIST Mount clamps have a variable friction design, so you can grab and twist the arm or accessory without loosening a thumbscrew.

Extension arms have serrated teeth to allow for angled configurations in increments of 22.5º, a captive 1/4-20, and lengths of 12.5mm, 25mm, 50mm, 75mm, and 100mm.

Two 90º bend pieces are also included for off-axis configurations.


Choose your Spuds:
  • No Spud
    • A 15mm friction hole with no mounting spud
  • ARRI 1/4-20
    • ARRI 1/4-20 with removable 3mm locating pins 10.4mm center to center
    • Second set of holes for 3mm pins 15mm center to center
    • Works with any cheese plate or accessory with ARRI standard 1/4-20 holes
    • Works with Blackmagic Design PYXIS Monitor
    • Works with recent SmallHD monitors like Indie 5, Cine 5, and Ultra 5
    • Works with ARRI Camera Control Monitor CCM-1
  • ARRI 3/8-16
    • ARRI 3/8-16 with removable 3mm locating pins 15mm center to center
    • Works with any cheese plate or accessory with ARRI standard 3/8-16 holes
    • Works with Atomos Shogun Ultra Monitor-Recorder (ATOMSHG002)
  • Canon C400, C300mkIII, C500mkII, LM-V2
    • Works with Canon C400, C300mkIII, C500mkII, and LM-V2
  • ARRI M6 Rosette
    • Works with Z CAM 2.89" EVF101
    • Works with original PORTKEYS OEYE
  • Sony / PortKeys 1/4-20
    • Attaches to any of the Sony cameras with Sony locating pins like Burano, FX6, and FX9
    • Works with Sony Burano EVF Pivot Adapter
    • Works with PORTKEYS LH7P (be careful, the monitor is plastic)
    • Works with PORTKEYS 5” BM5 IV
  • L Bracket 1/4-20
    • Includes the slotted L Bracket with two 1/4-20 screws
    • Works with PORTKEYS LEYE III (note their HDMI cable may conflict with NATO rail in certain positions
    • Works with original RED DSMC1 EVF
  • Female ARRI 1/4-20
    • Works with any 1/4-20 product, including those with ARRI spaced locating pins (3mm diameter pin on 10.4mm spacing center to center)
  • Female ARRI 3/8-16
    • Works with any 3/8-16 product, including those with ARRI spaced locating pins (3mm diameter pin on 15mm spacing center to center)
  • 1/4-20 Rosette
    • Works with 1/4-20 Rosette on the Kinefinity EAGLE SDI (or HDMI) e-Viewfinder
    • Works with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVF
    • This is NOT a regular ARRI rosette
  • Old-Style SmallHD 1/4-20
    • Older style SmallHD 1/4-20 with wide locating tabs
    • Works with legacy 5" SmallHD monitors like 501, 502, Focus 5, Focus Bolt, Action 5
    • Works with legacy 7" SmallHD monitors like 701, 702, Focus 7, Indie 7, Cine 7
  • ARRI Viewfinder Wedge
    • Works with ARRI standard EVF wedge products like EVF-1, EVF-2, MVF-1, MVF-2
    • Works with other ARRI wedge adapters like ARRI VFA-4, K2.0015520, etc.
    • Works with 3rd party products that utilize ARRI-style mounting wedges.
  • Blackmagic Viewfinder Wedge
    • Includes the NATO rail, Knuckle, and spud for Blackmagic Design dovetail wedges
    • Works with URSA Cine EVF - CINEURSAB/EVF
    • Works with URSA Cine EVF Extension - CINEURSAB/EVFEXT
    • Works with PYXIS Monitor Kit - CINEURSABB/AMKIT
  • Action Cameras (GoPro‚ DJI Osmo Action‚ Insta360)
    • Standard receptacle for 2-prong action camera feet
    • Works with GoPro, DJI Osmo Action, Insta360
    • Works with many other 3rd party action camera products
  • Sony FX6
    • Attaches to the FX6 monitor to provide a rigid "flop stop" mount
    • Monitor folding capability is maintained
  • Male Hot Shoe
    • Clamps to standard camera shoe mounts
  • Female Hot Shoe
    • Female shoe receptacle for standard shoe accessories
  • NATO Rail
    • Standard NATO rail with safety pins on each end
    • Mounting area between pins is 30mm
  • NATO Clamp
    • Standard NATO clamp with ratcheting thumbscrew
    • Clamping area between outside edges 21mm
  • Tripod Expansion Adapter
    • Includes a 5mm locating pin and 1/4-20 screw for attaching small cameras with a standard "tripod" mount
    • Remove the locating pin and screw this adapter into any two 1/4-20 threaded holes between 16.5 and 33mm center to center
    • Threaded ARRI 1/4-20 and 3/8-16 holes also available
  • Sony Venice Viewfinder Wedge (DVF-EL200)
    • Works with Sony Venice Viewfinder Wedge (DVF-EL200)

  • All Cameras
