Description

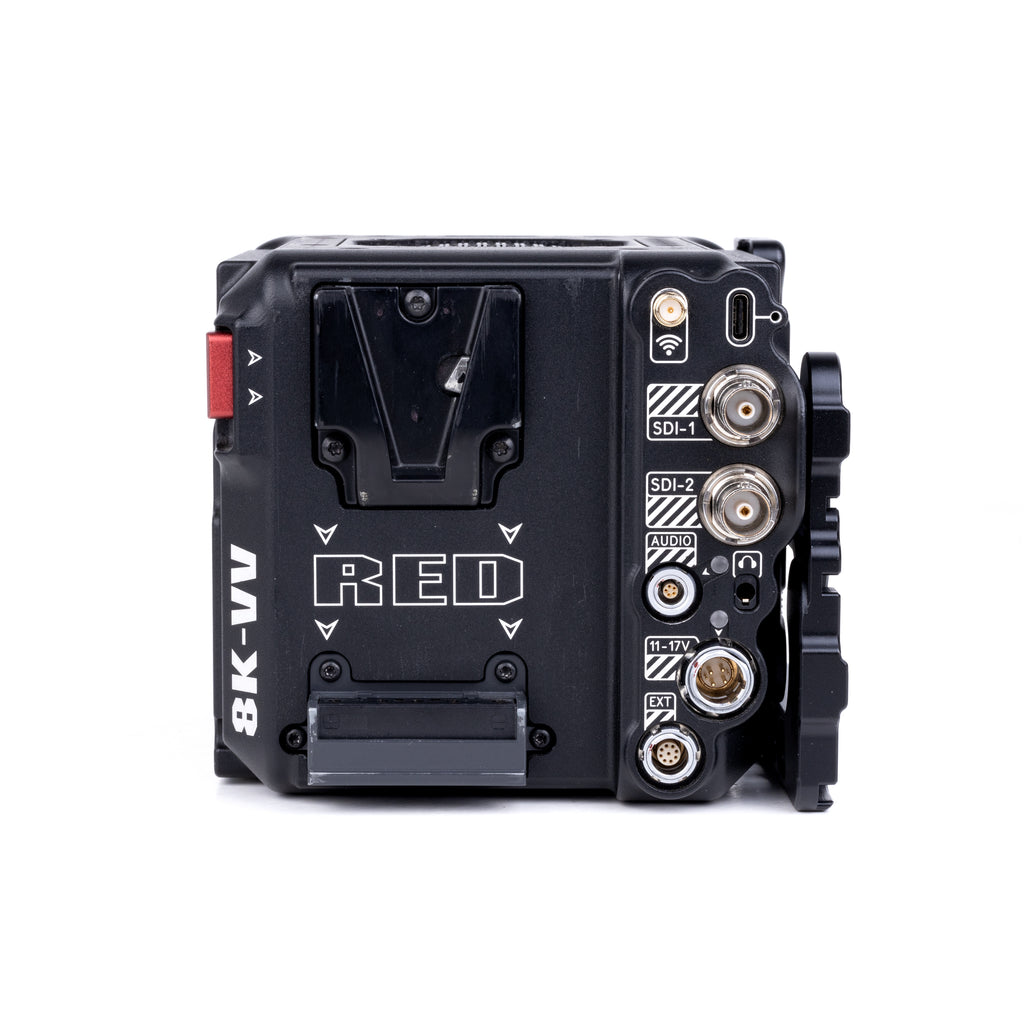

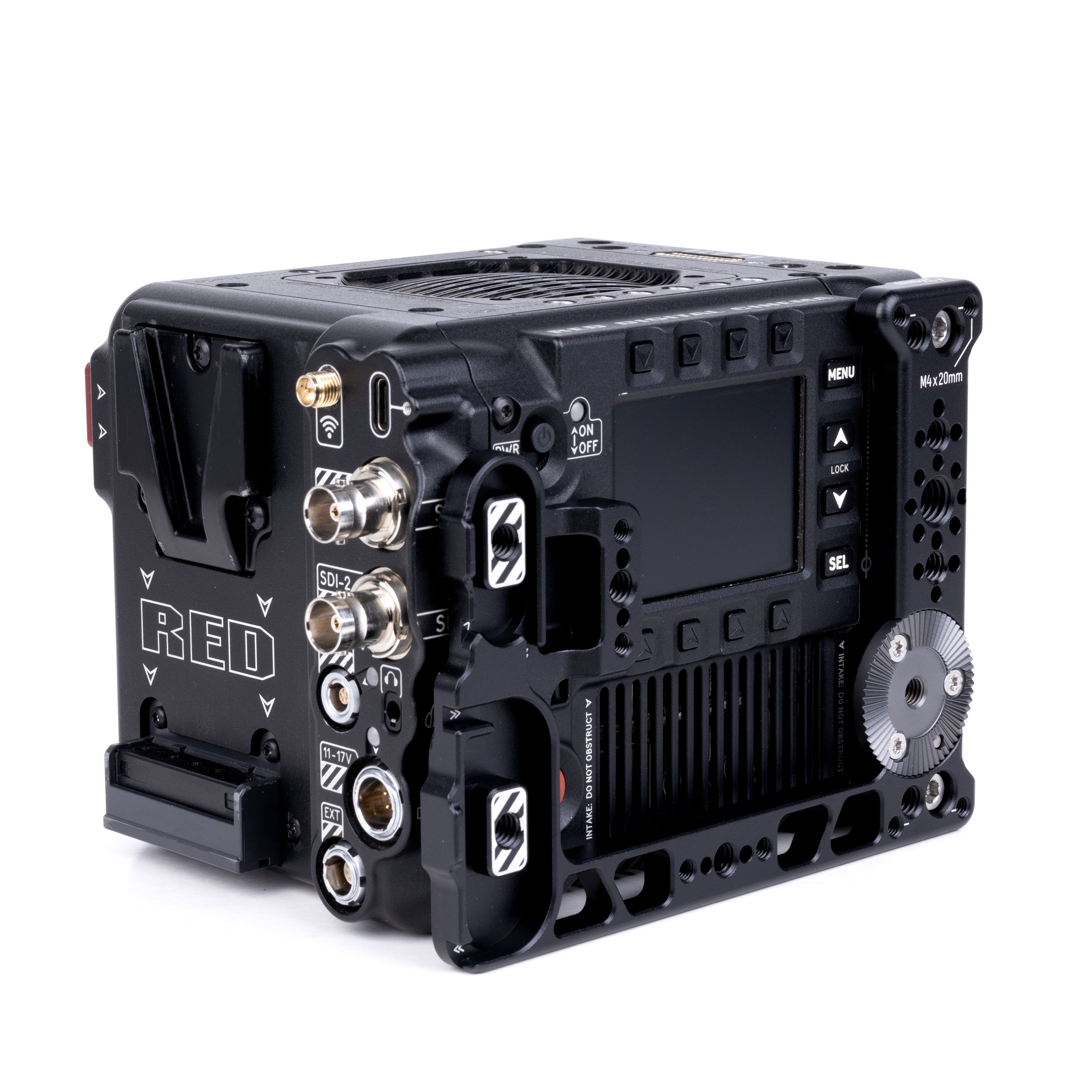

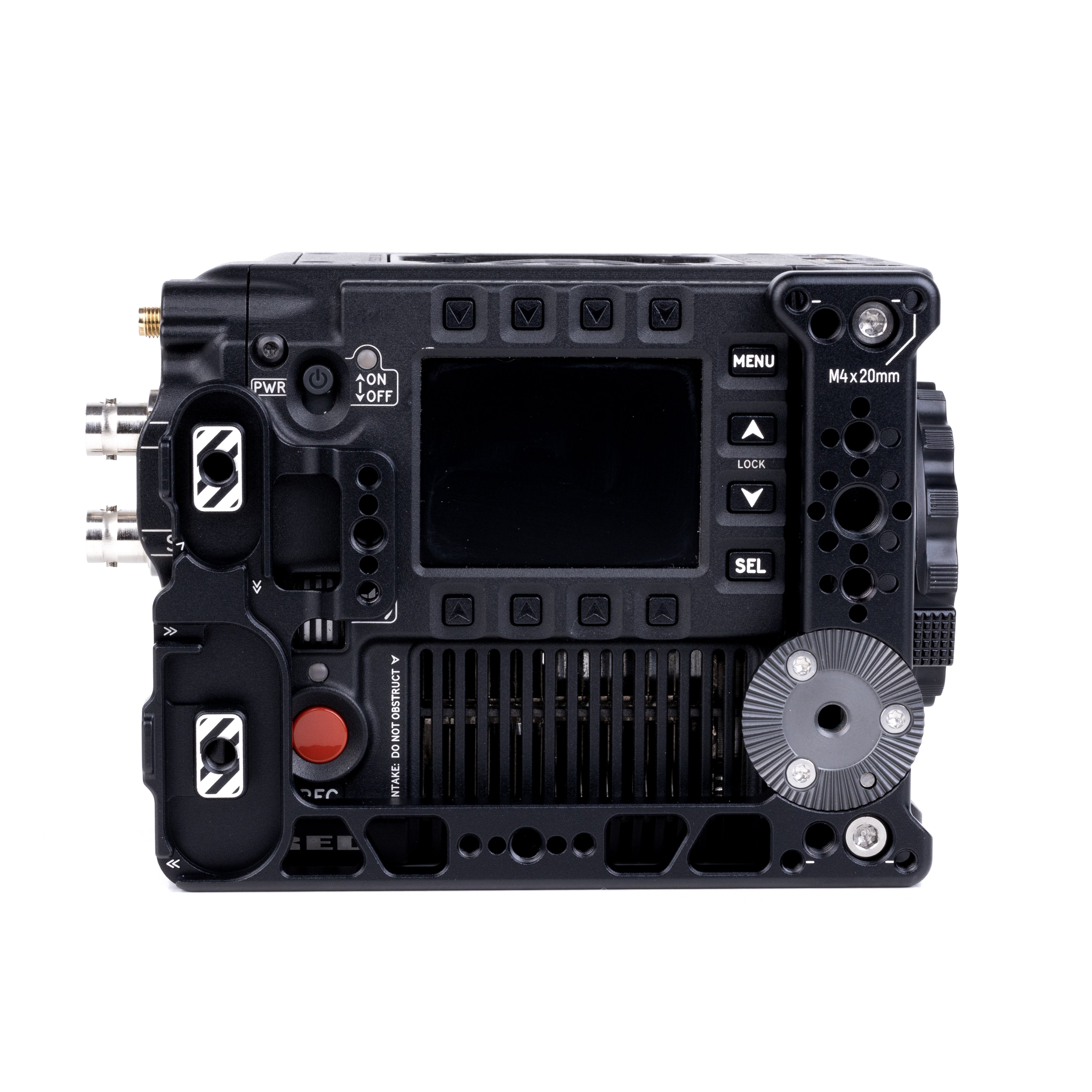

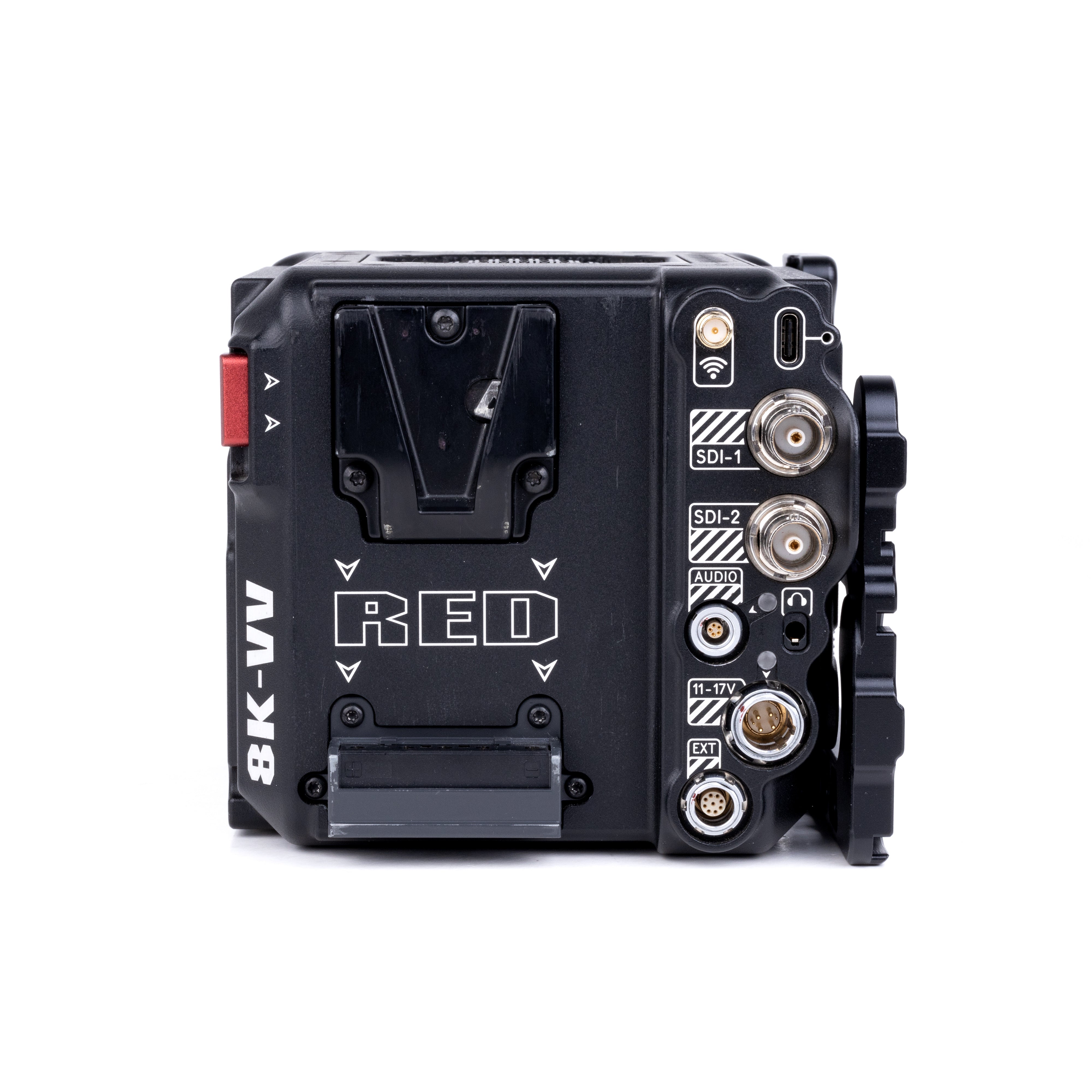

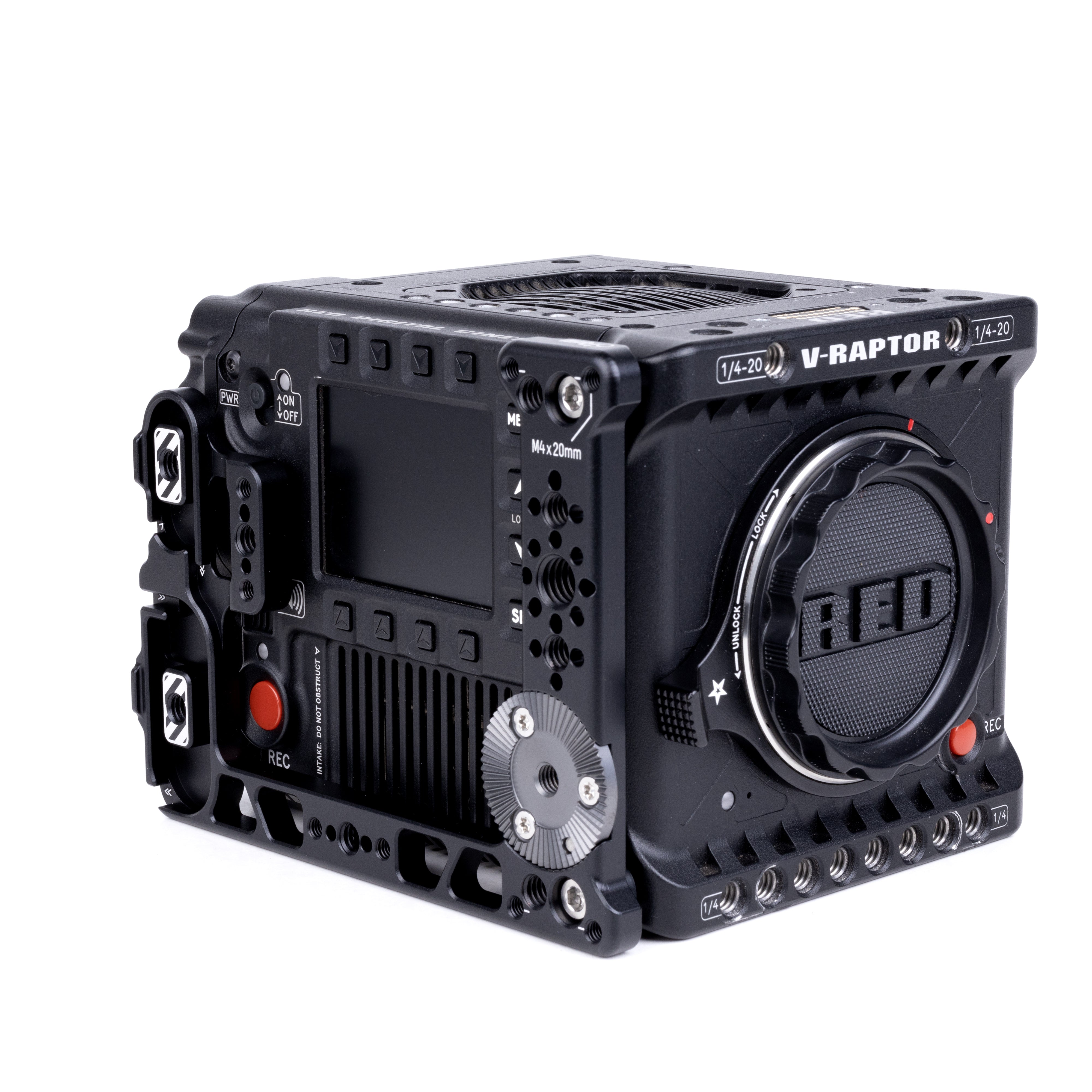

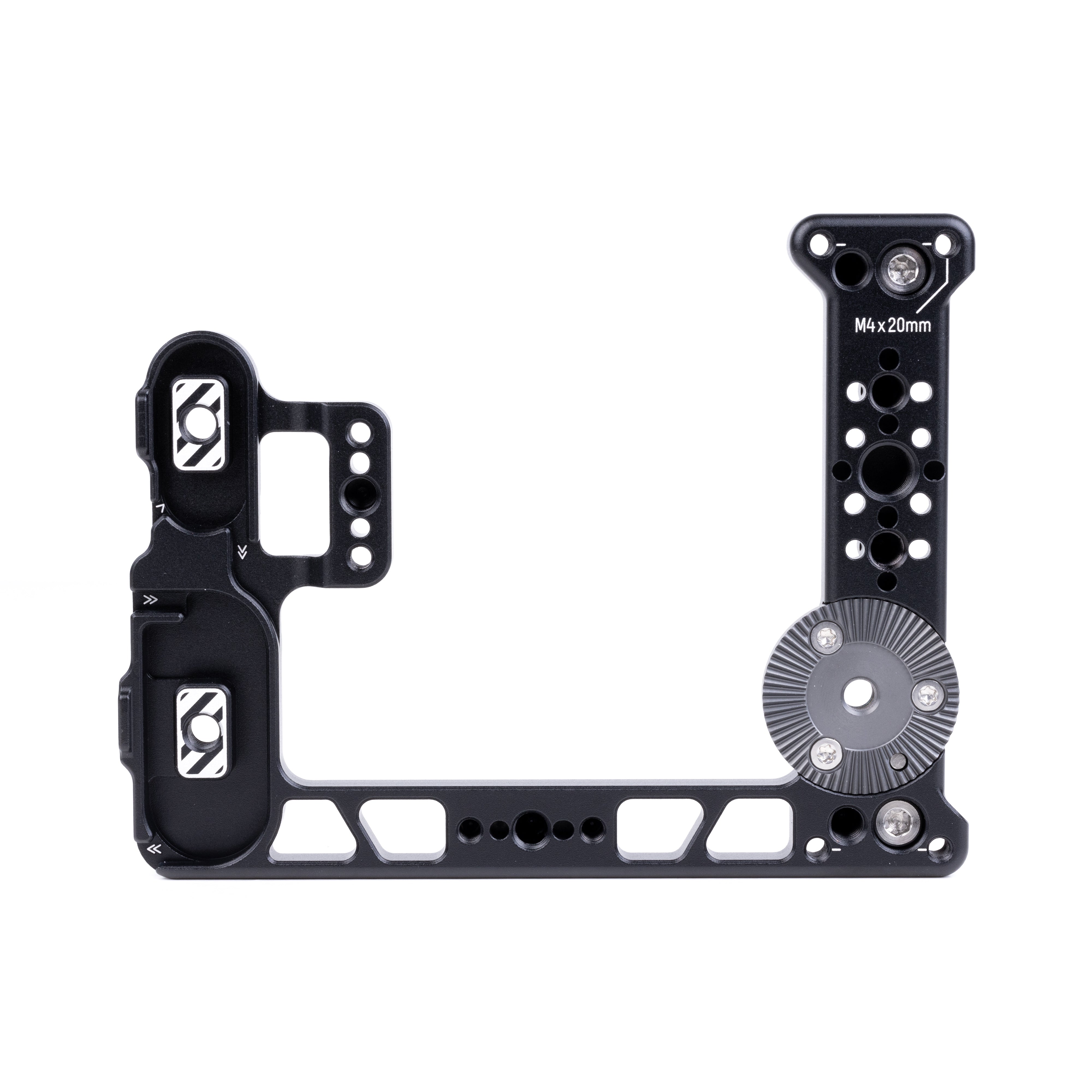

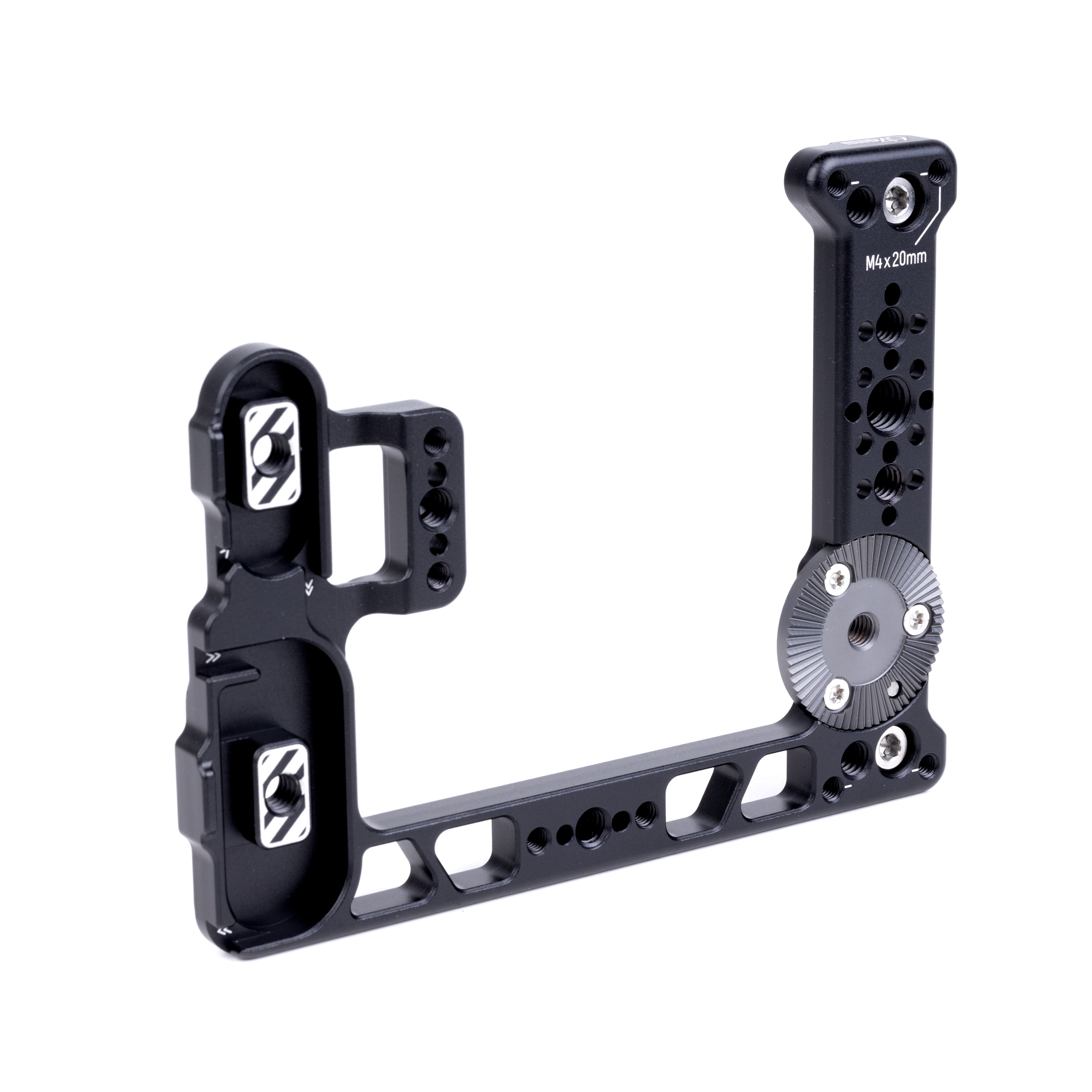

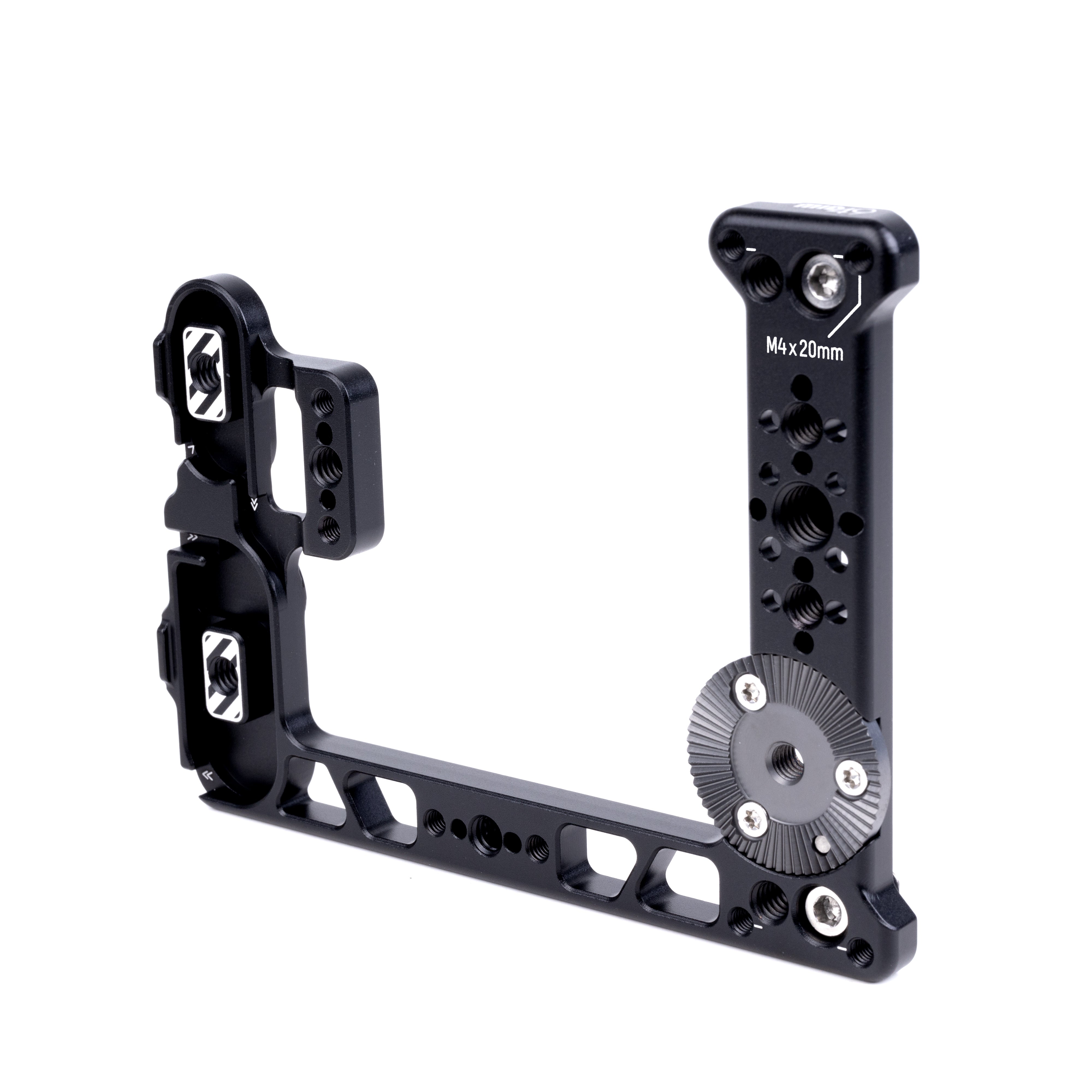

Breakout Side Plate for RED V-Raptor attaches to the side of the RED V-Raptor and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Two offset 1/4-20 holes matching RED's spacing allow certain 3rd party products to be attached like GDU Atlas Side Handle (Raptor, Right). Rear 1/4-20's provide ideal mounting locations for Audio Breakout AB-1 (V-Raptor) and EXT Breakout EB-1 .
Recessed cable loops in the side plate allow for clean cable management.
The side plate compatibility with other manufacturer's accessories is below:
| Manufacturer | Compatibility Notes |
| 8Sinn | Replaces side plate |
| Bright Tangerine | Replaces side plate |
| Came-TV | Replaces side plate |
| Ignite Digi | Incompatible with Keystone |
|
Kondor Blue |
Replaces side plate |
| Modern Film Tools | Replaces side plate |
| Octamas | Replaces side attachments |
| RED/CS | Replaces side plate and EXT side bar |
| Smallrig | Replaces side plate |
| Tilta | Replaces side plate and EXT function of power module |
| Vocas | Incompatible with top plate |
Please find the installation video here
Product Weight: 3.60oz (102g)
Product Dimensions (WxLxH): 5.41 x 4.25 x 0.47in (137 x 108 x 12mm)
