Audio Breakout AB-2 (ARRI Alexa 35, Alexa Mini LF)


Sale price$175.00

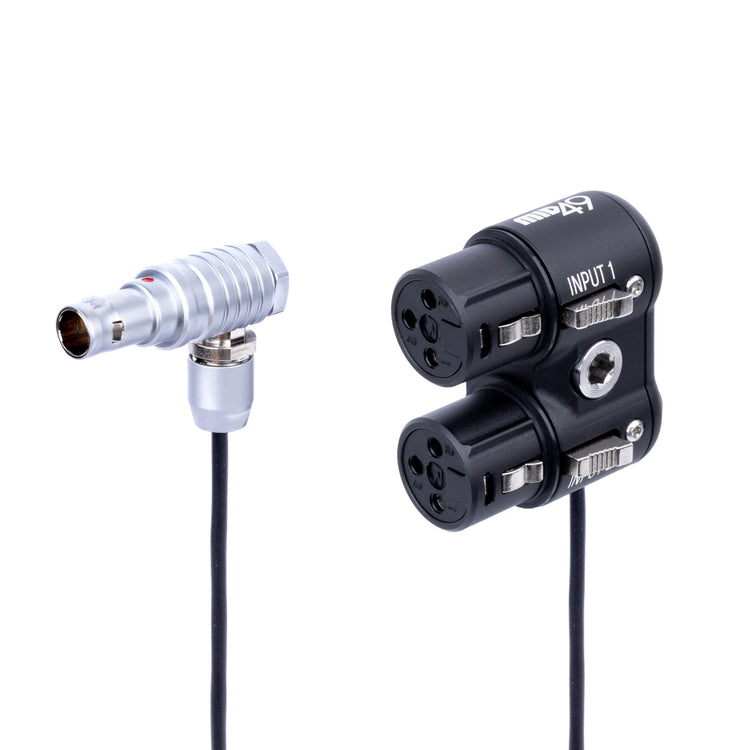

Audio Breakout AB-2 (ARRI Alexa 35, Alexa Mini LF) is a passive adapter that converts the camera's 6-pin 0B LEMO to two standard, full-size XLRs.

Attaches by a captive 1/4-20 screw and rubber pad to the camera body or side plates.

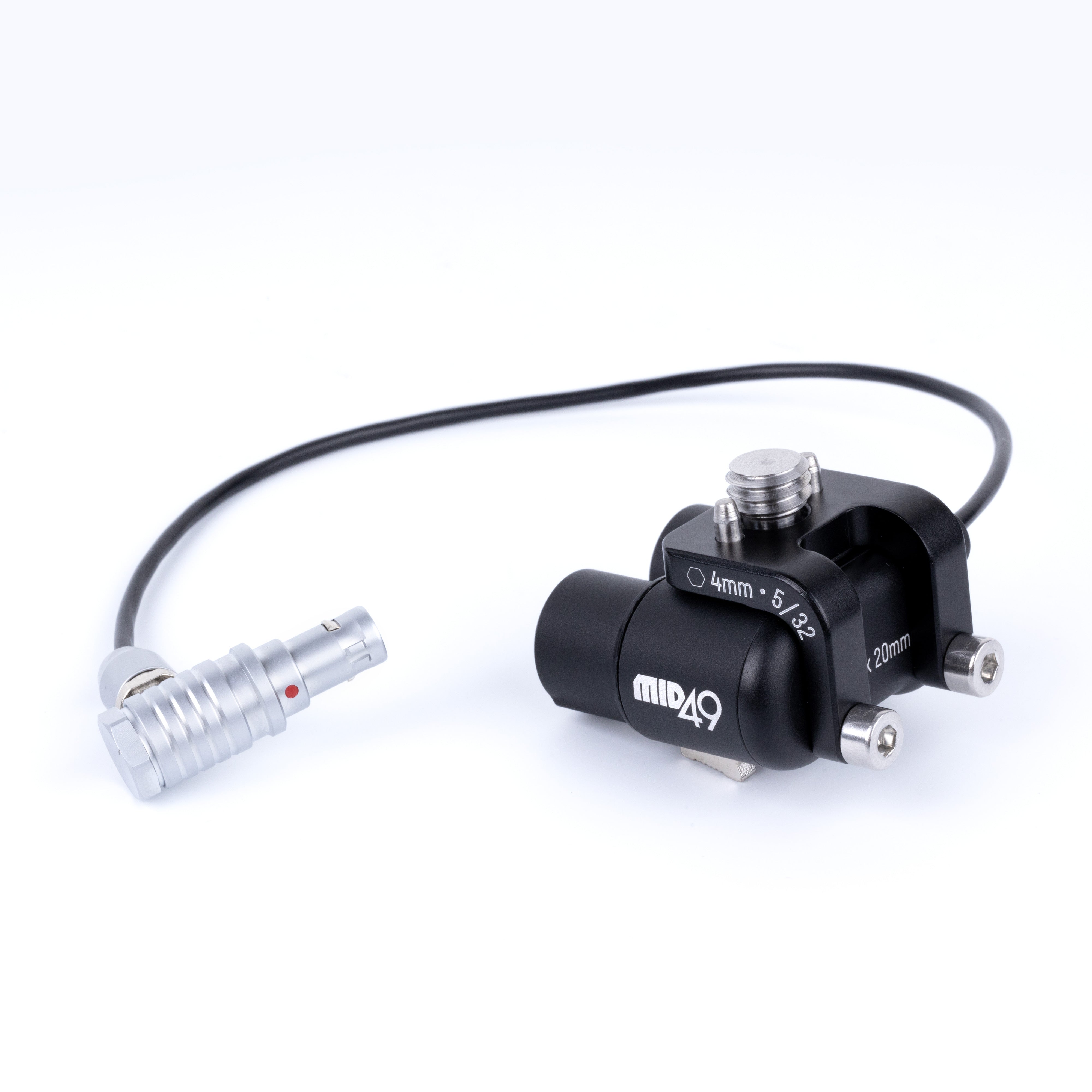

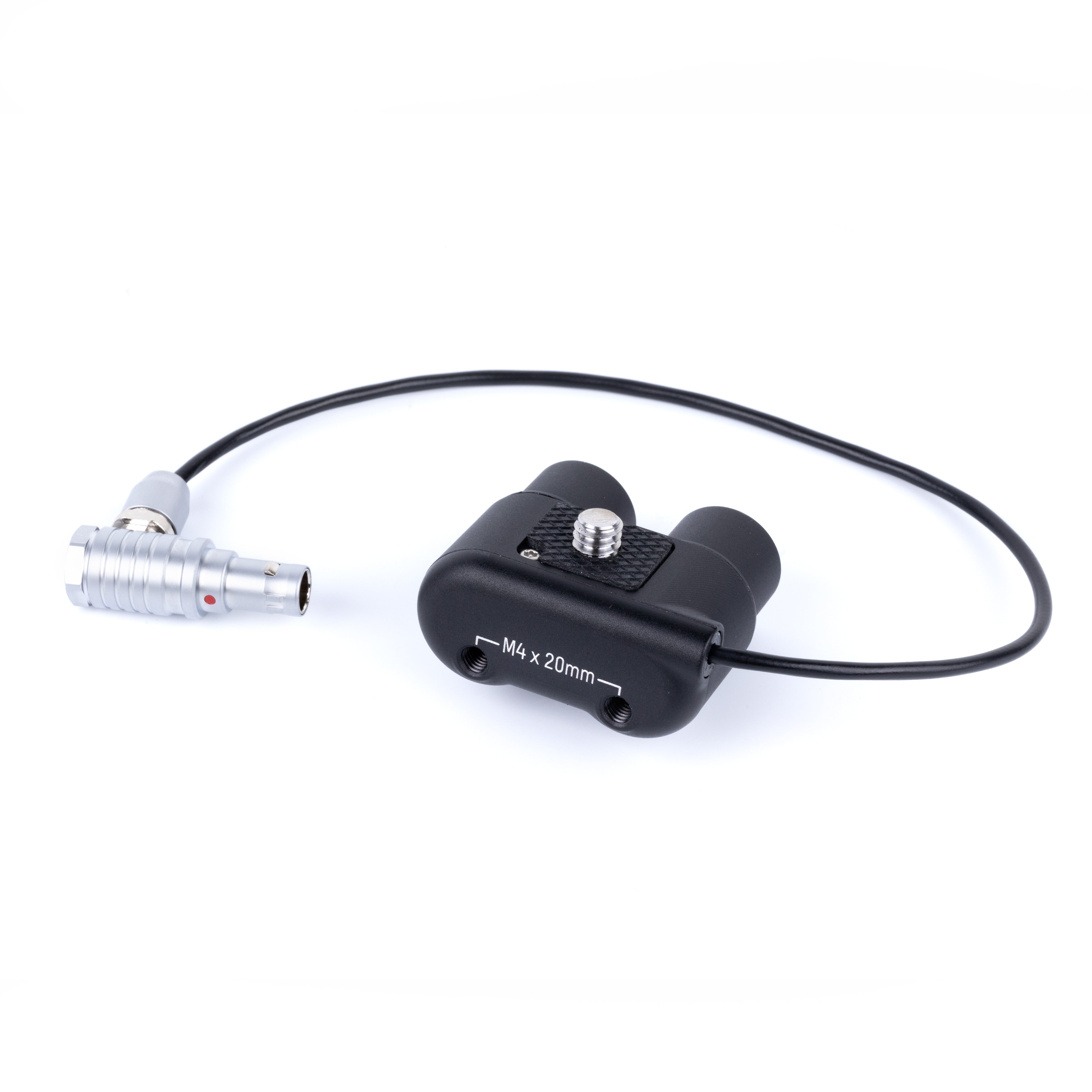

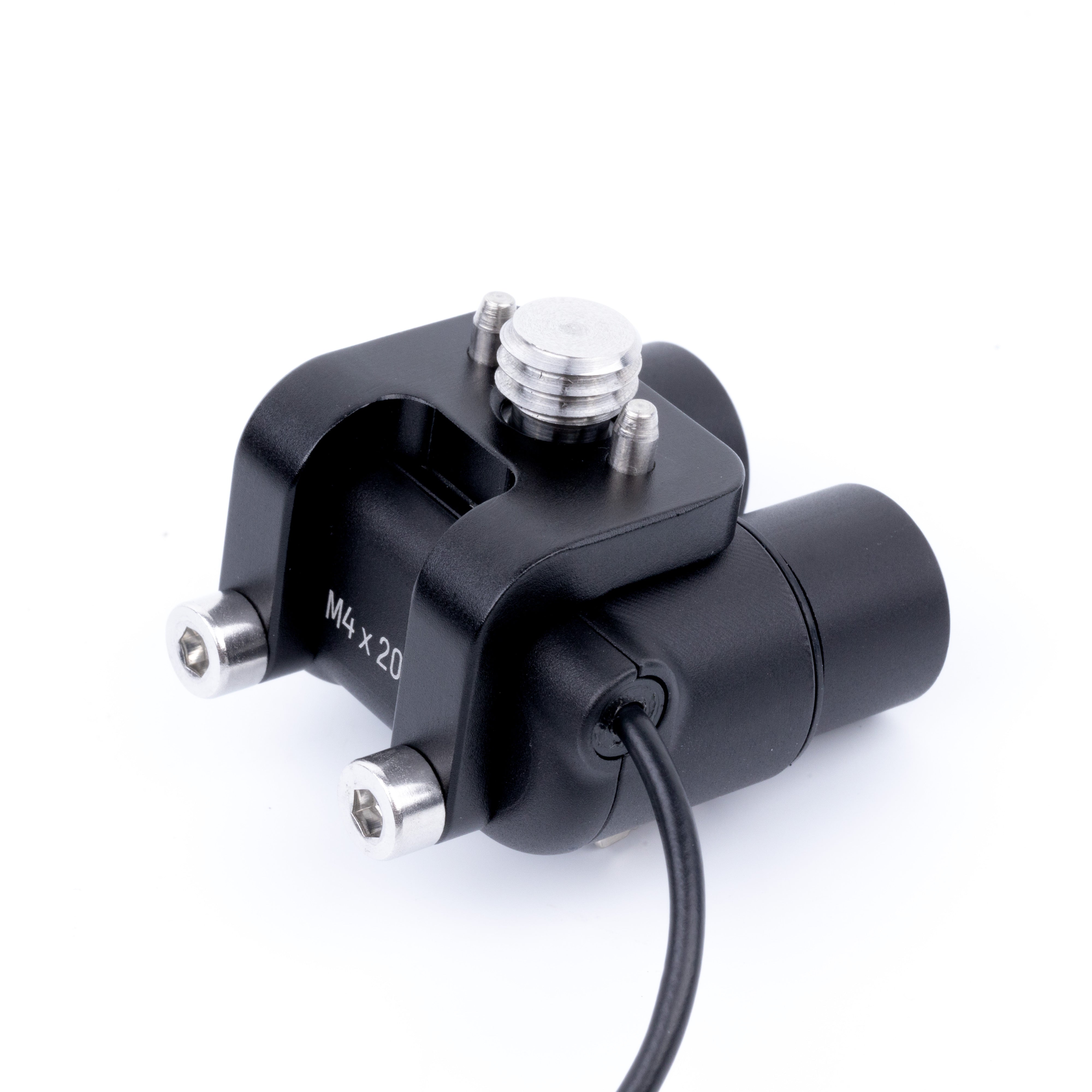

Two M4 threaded holes in 20mm ARRI spacing are available to add Breakout Box Side Mounting Bracket (ARRI 3/8-16) (sold separately), which allows AB-2 to attach using a 3/8-16 screw with ARRI locating pins.

Attaches easily to rods using the Single 15mm Rod Clamp or Single 19mm Rod Clamp  (sold separately).

8 inch (20cm) cable length with right angle LEMO-compatible connector.

Custom lengths are available by emailing

Product Weight: 1.50oz (42g)
Product Dimensions (WxLxH): 1.36 x 10.91 x 1.09in (35 x 277 x 28mm)
