Description
Available for pre-order, expected to ship in late September.

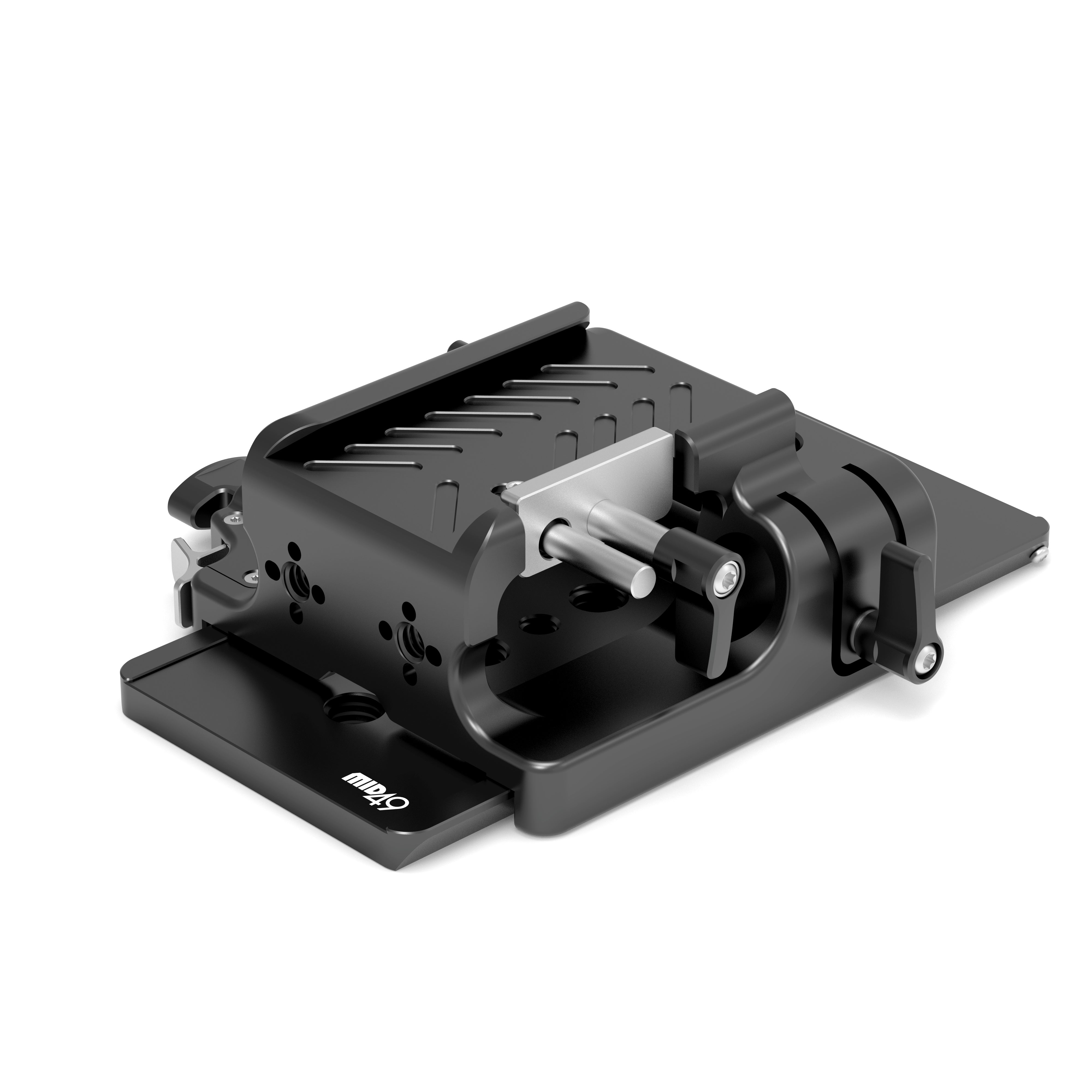

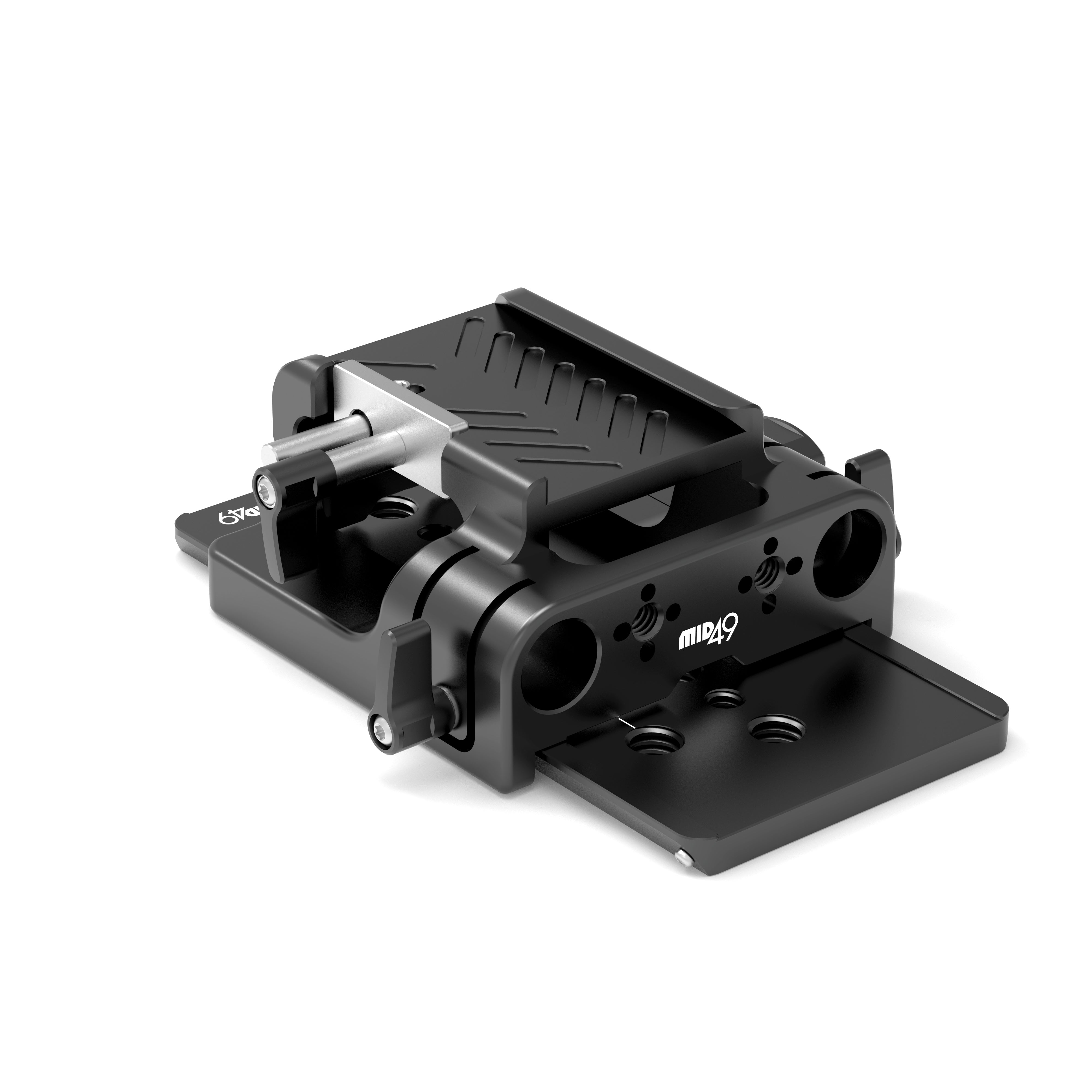

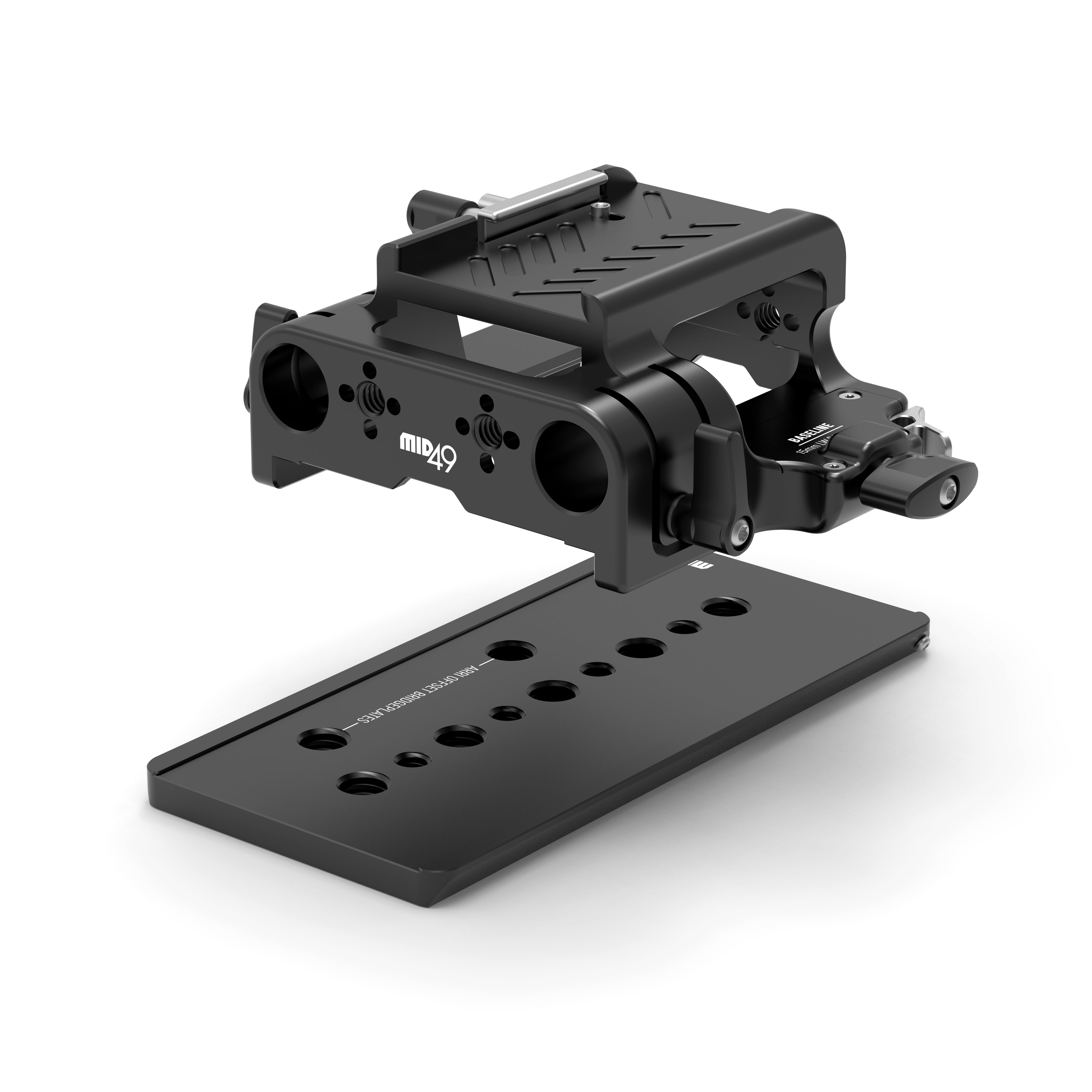

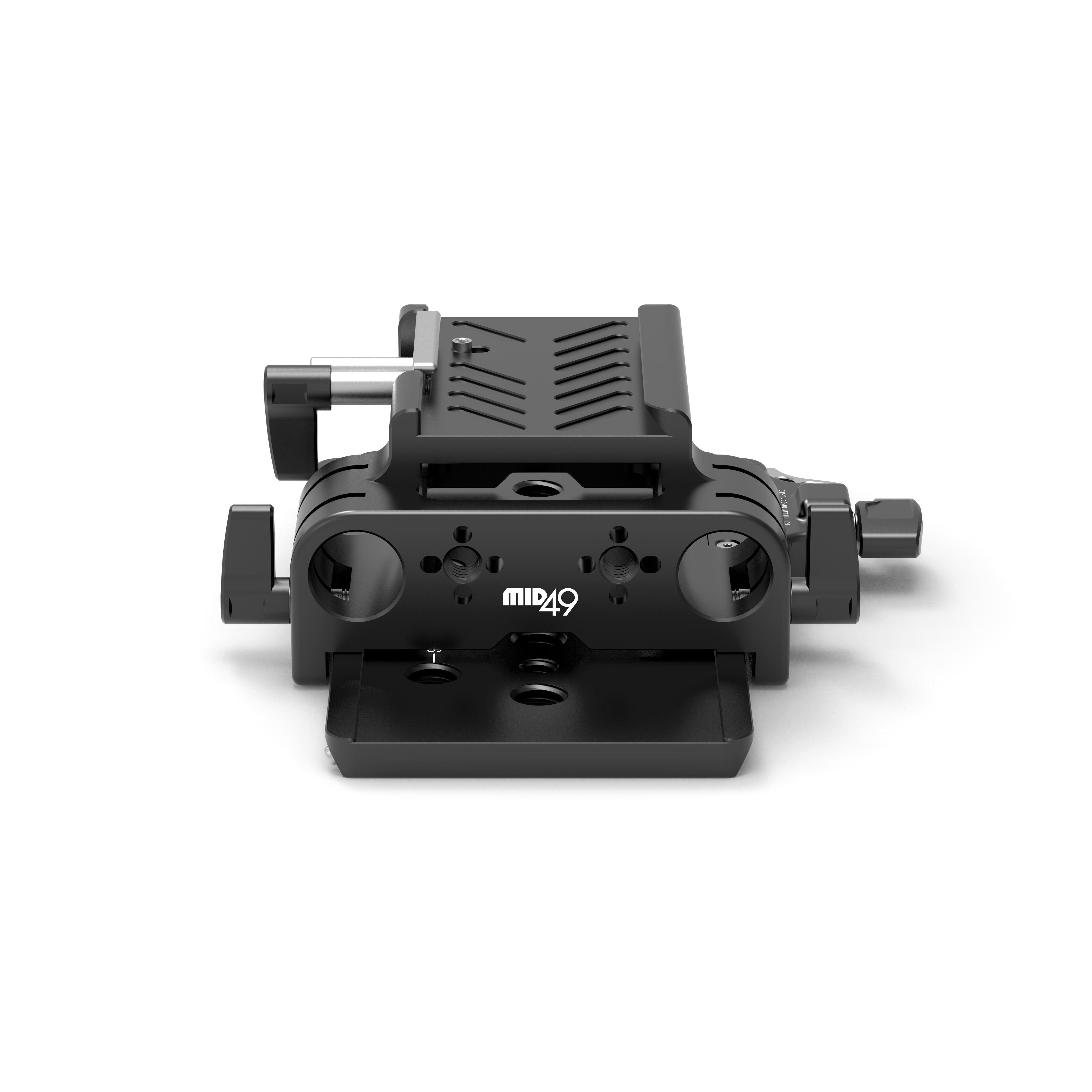

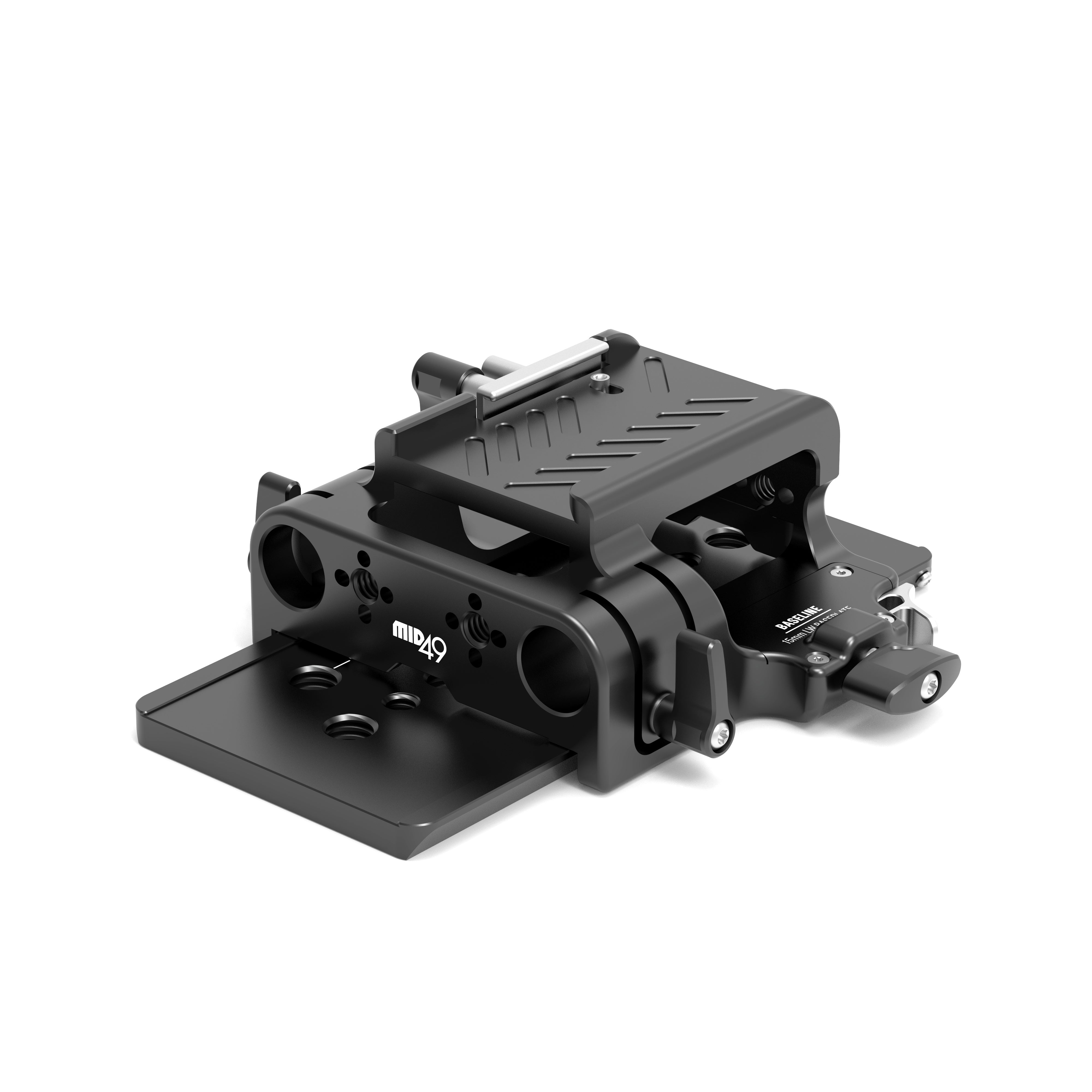

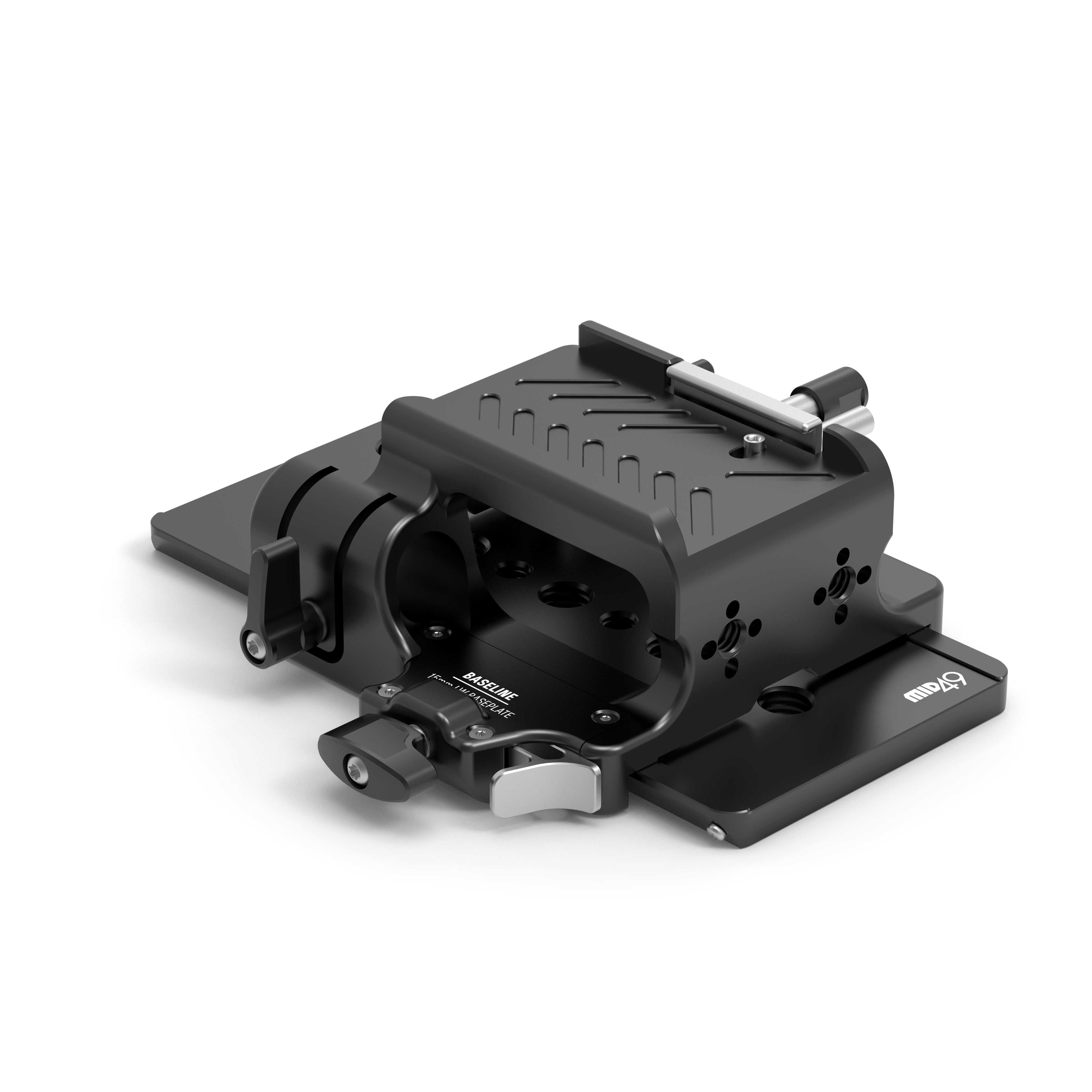

Baseline 15mm LW (Upper Cage Canon C50) holds two 15mm rods at 15mm lightweight spacing when combined with the Upper Cage Canon C50.
ARRI dovetail slot on the bottom attaches using a top-load locking mechanism to included Baseline ARRI Dovetail or other ARRI standard dovetails.

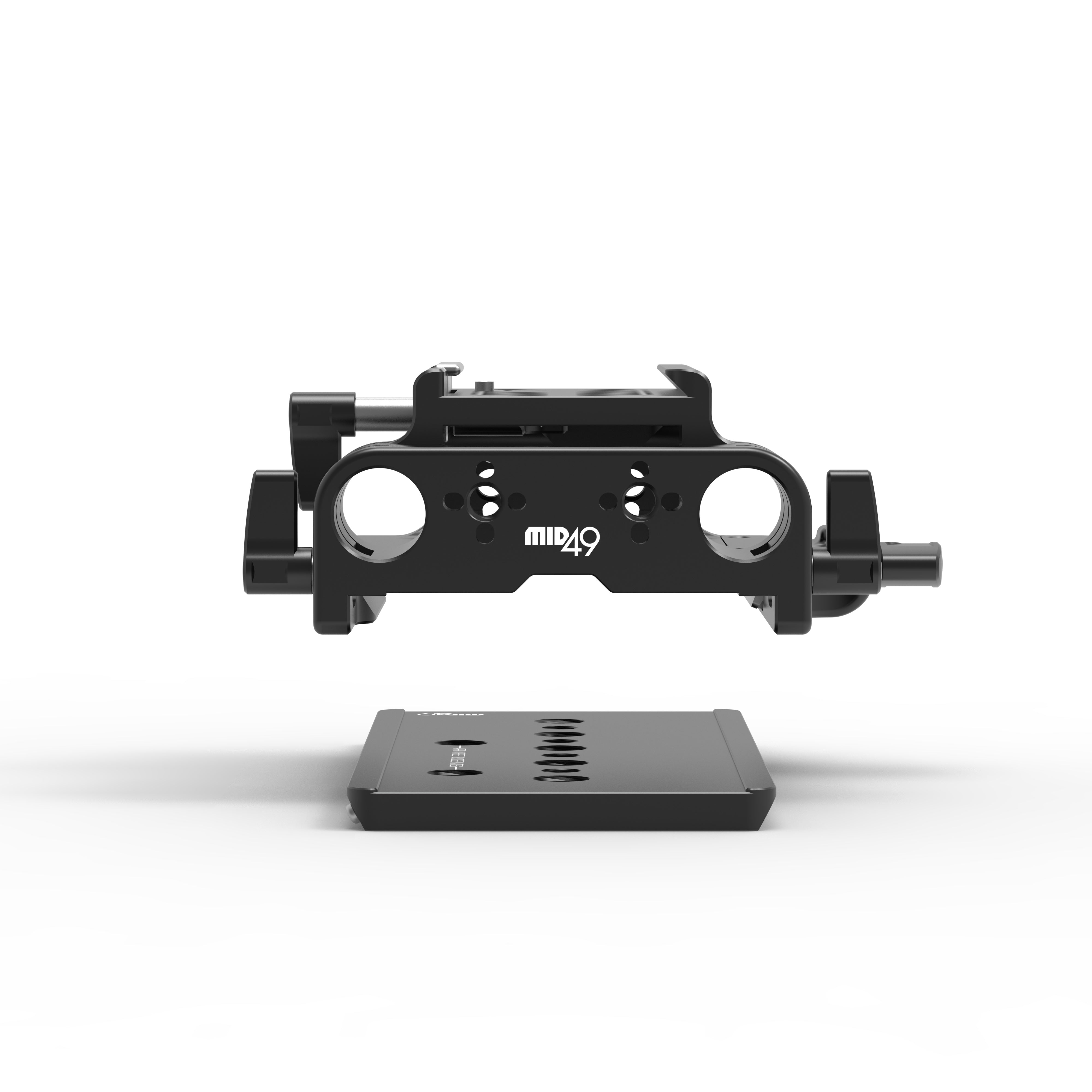

Loosen the thumbscrew and push the silver button on the operator's side to release the baseplate from the ARRI dovetail. To reattach, drop down and listen for the pop to know it has engaged. Adjust the position on the ARRI dovetail, then lock the ratcheting thumbscrew.
ARCA dovetail slot on top holds Baseline ARCA Dovetails and can be top-loaded, or installed from the back by sliding in. When sliding in from the back, a safety pin will engage with a pop when properly installed. Adjust the position, then lock the ratcheting thumbscrew. Top-loading can be achieved by loosening the thumbscrew, pulling out on the ratcheting knob, and turning the thumbscrew until ARCA clamp has opened fully. Reverse the process to tighten.
Product Weight: 5.50oz (156g)
