Description
Available for pre-order, ships Mid-December

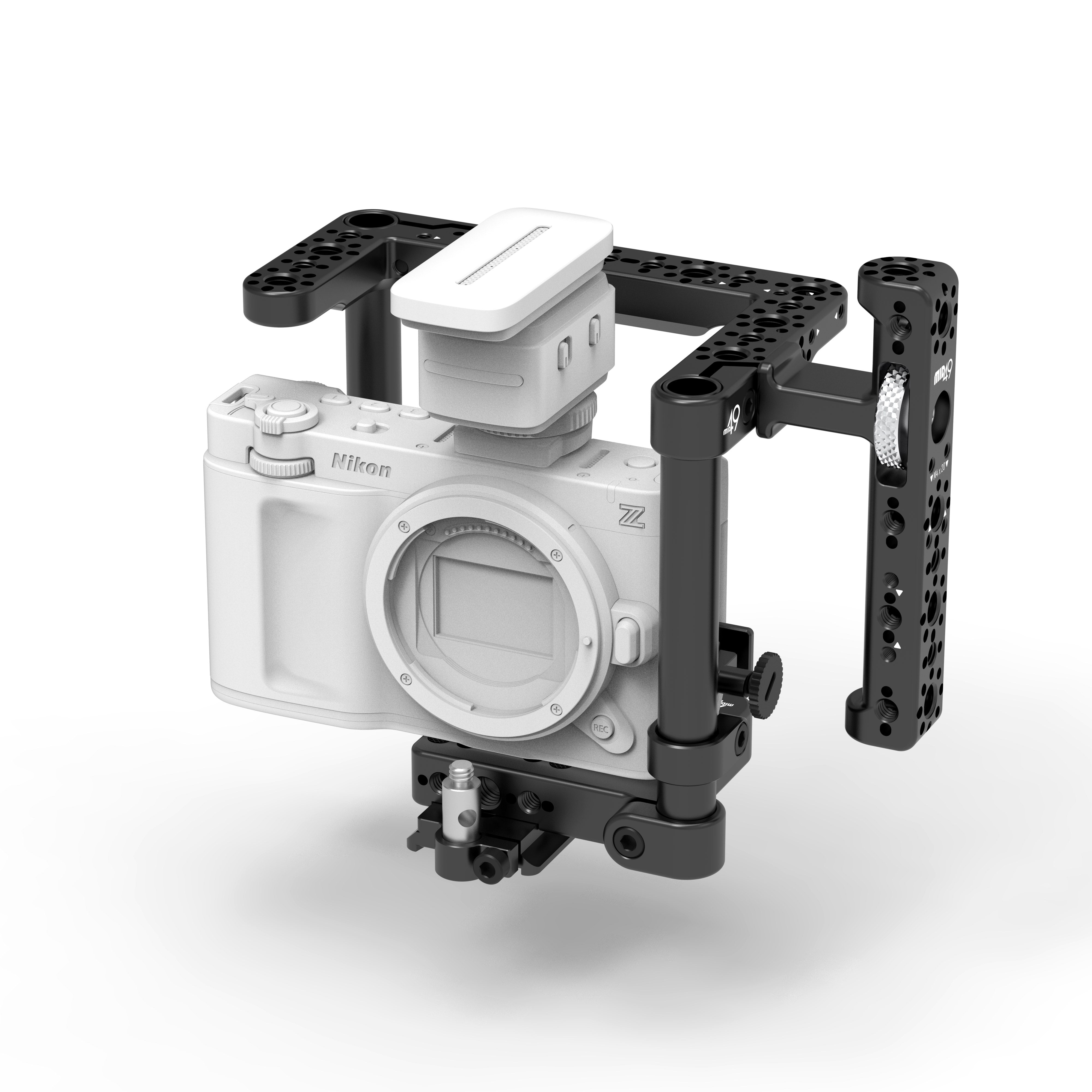

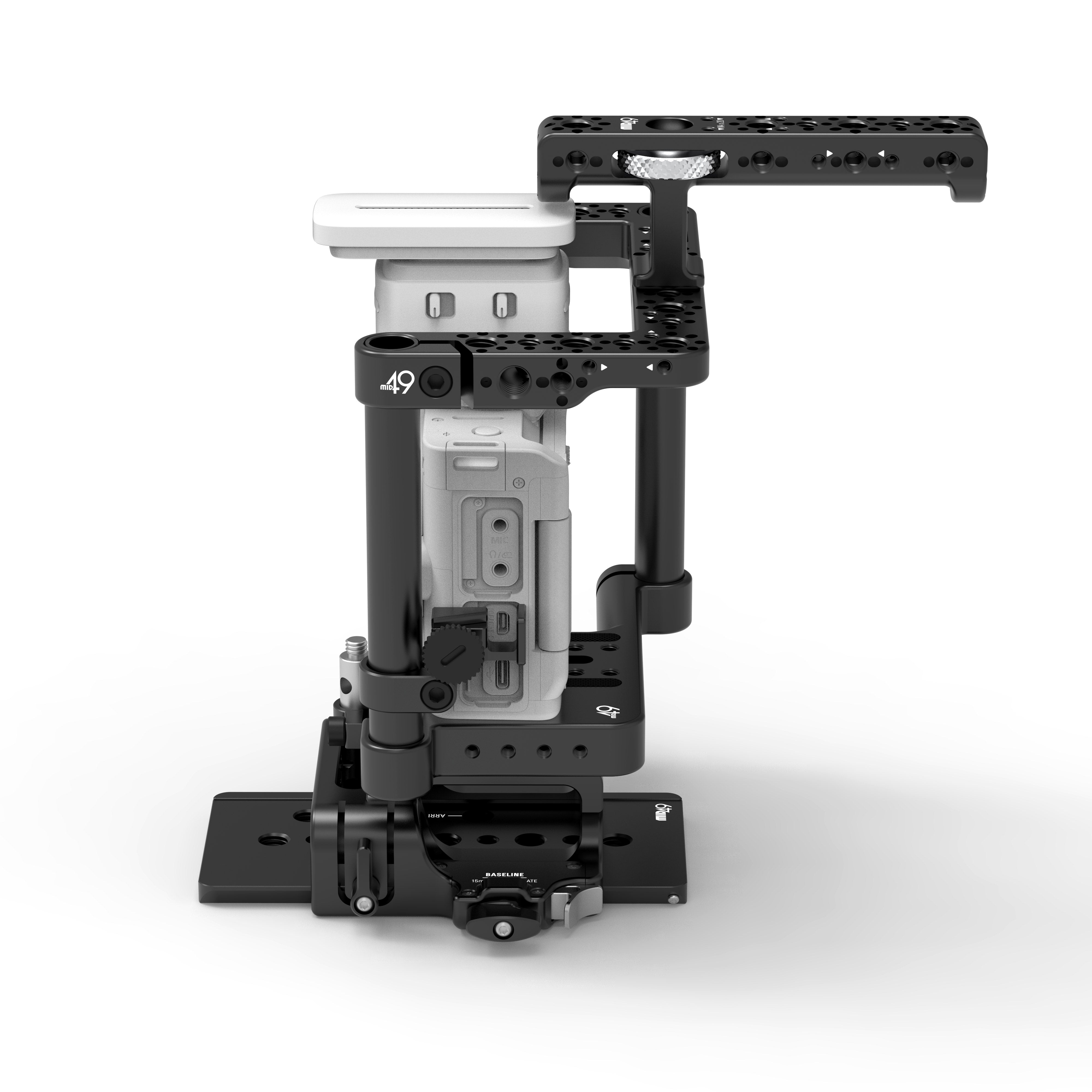

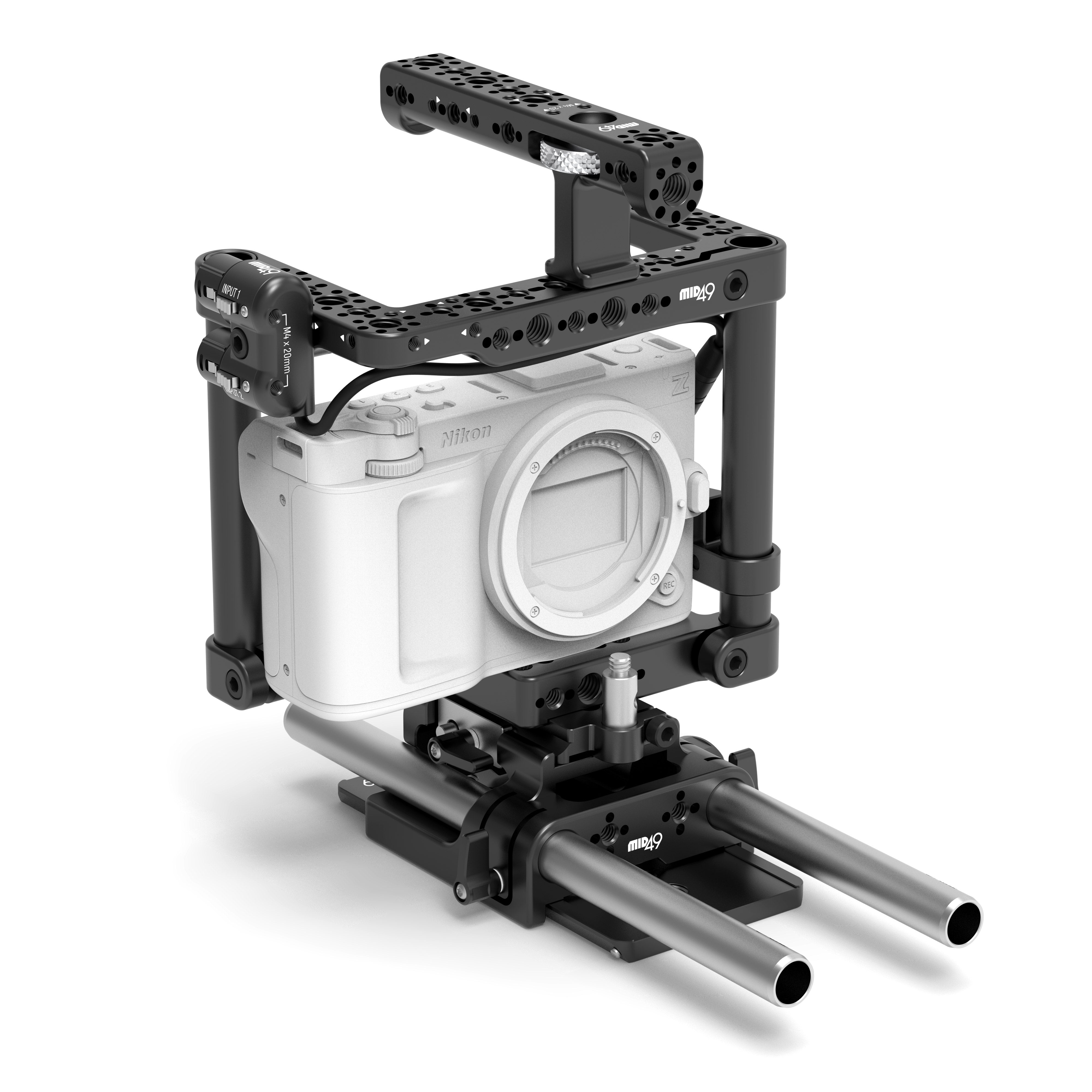

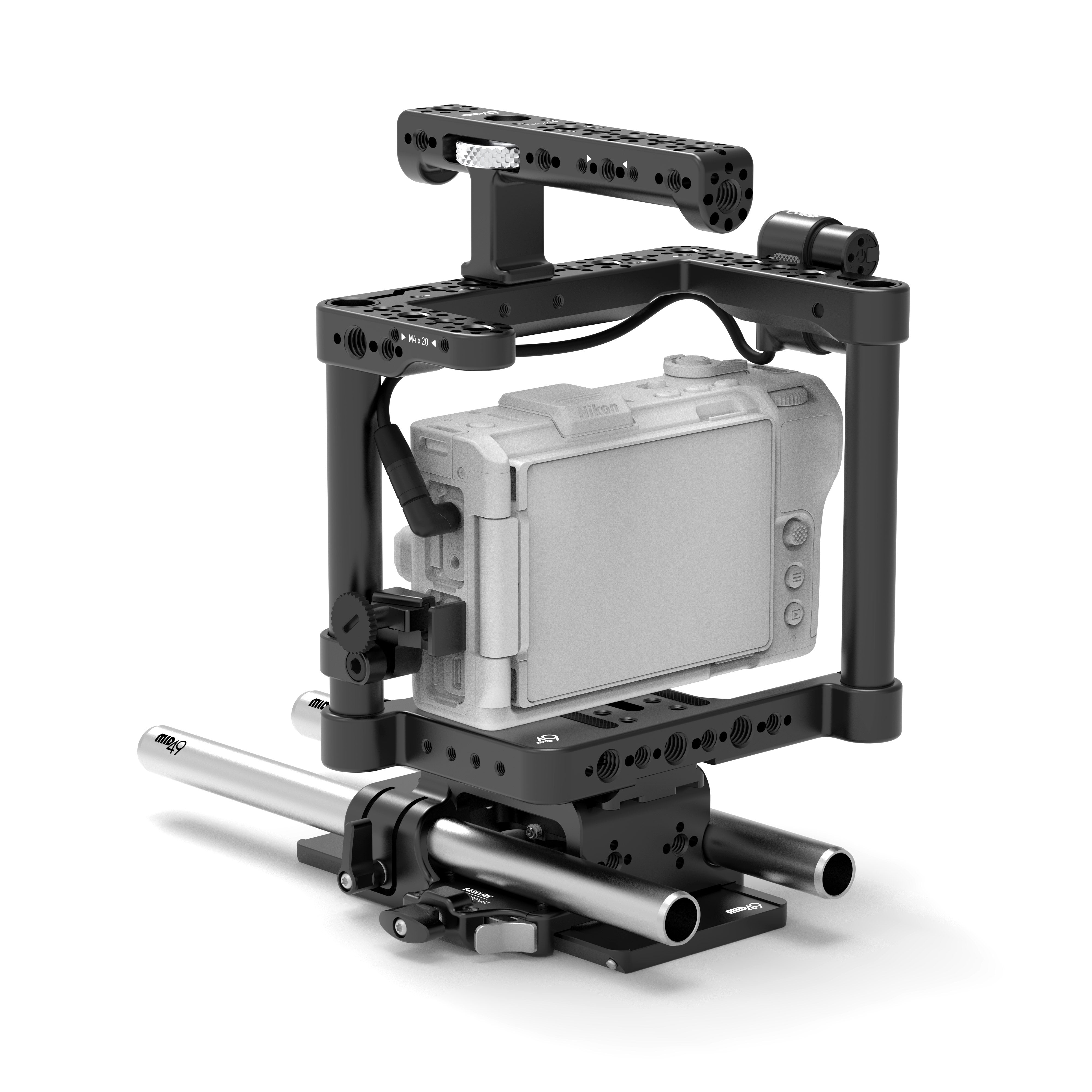

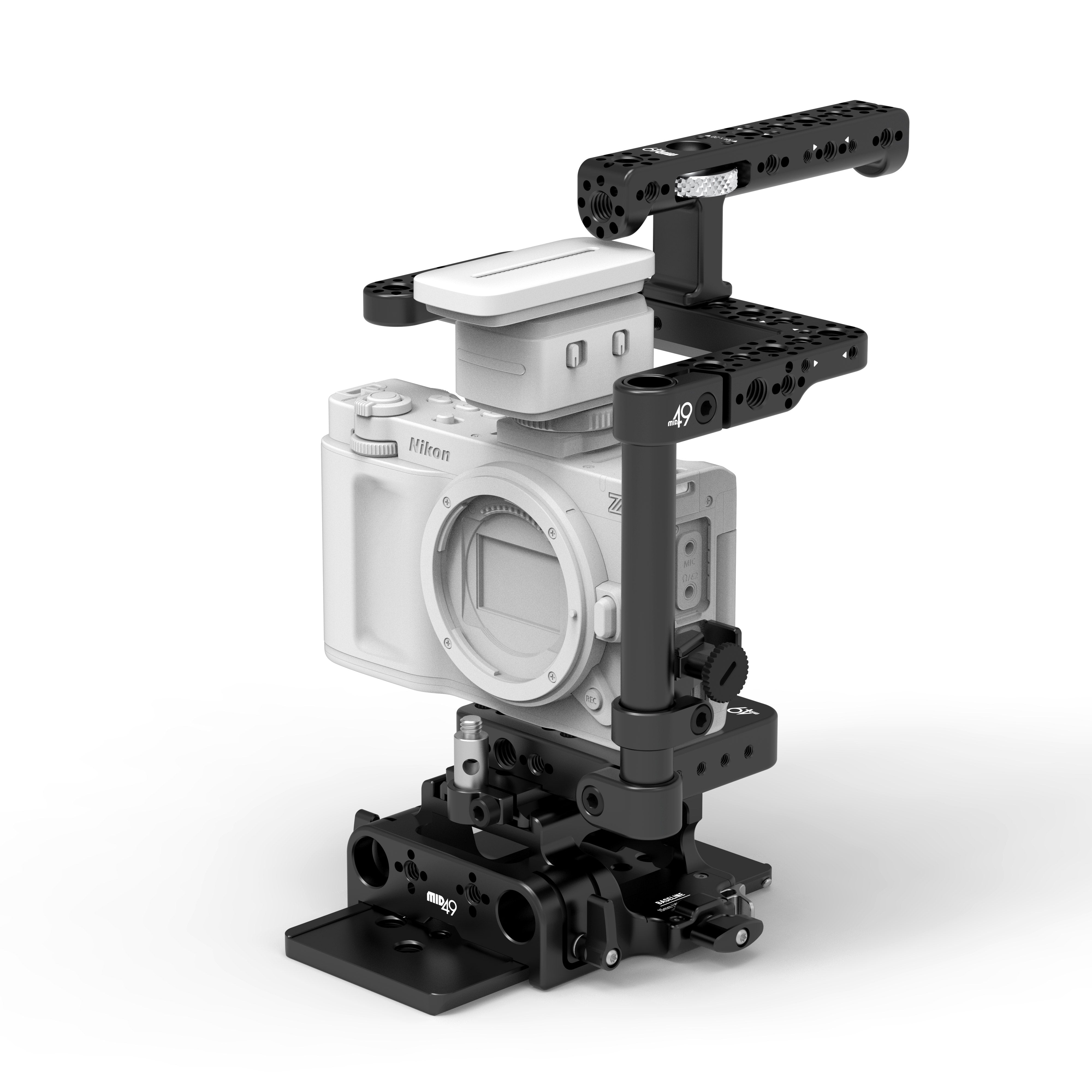

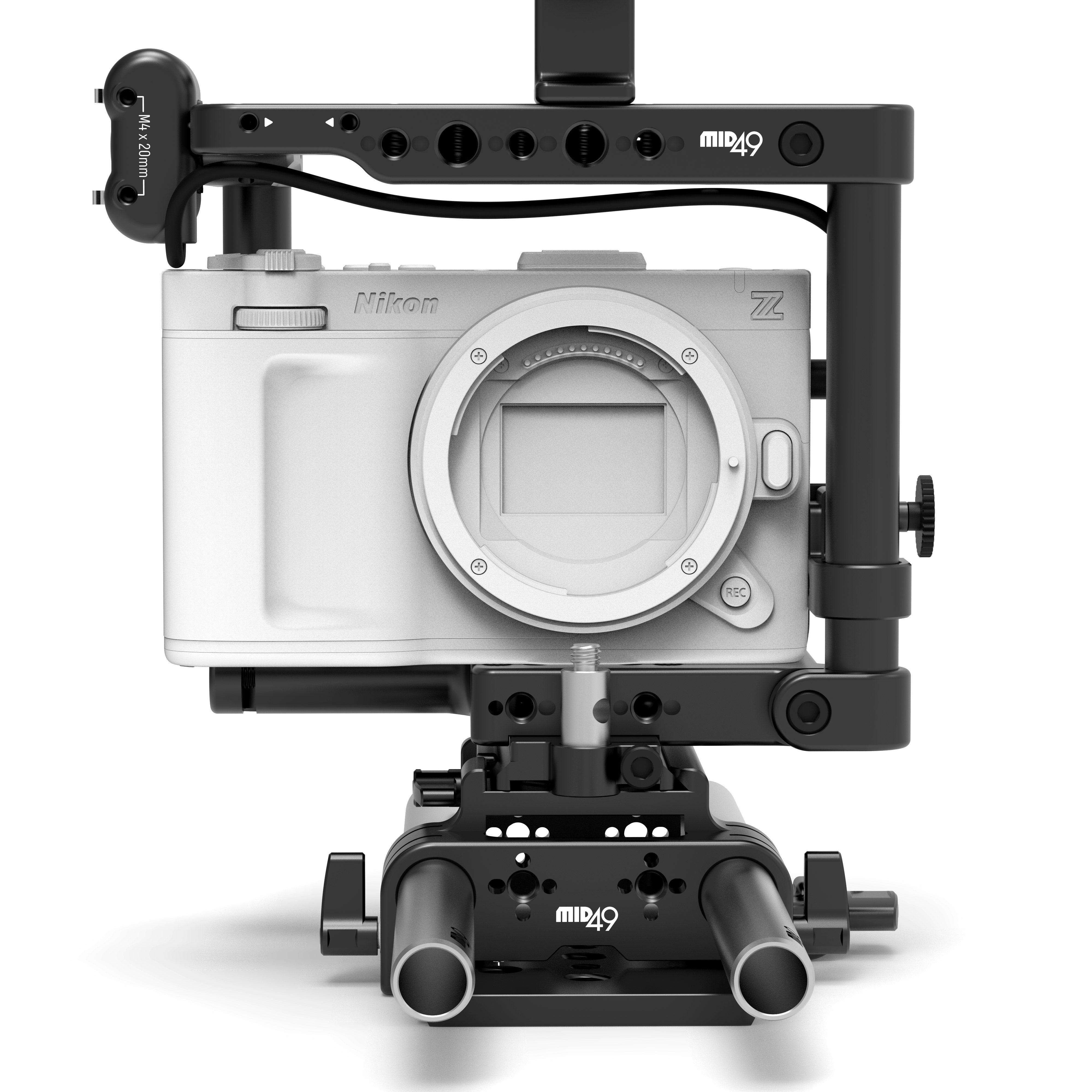

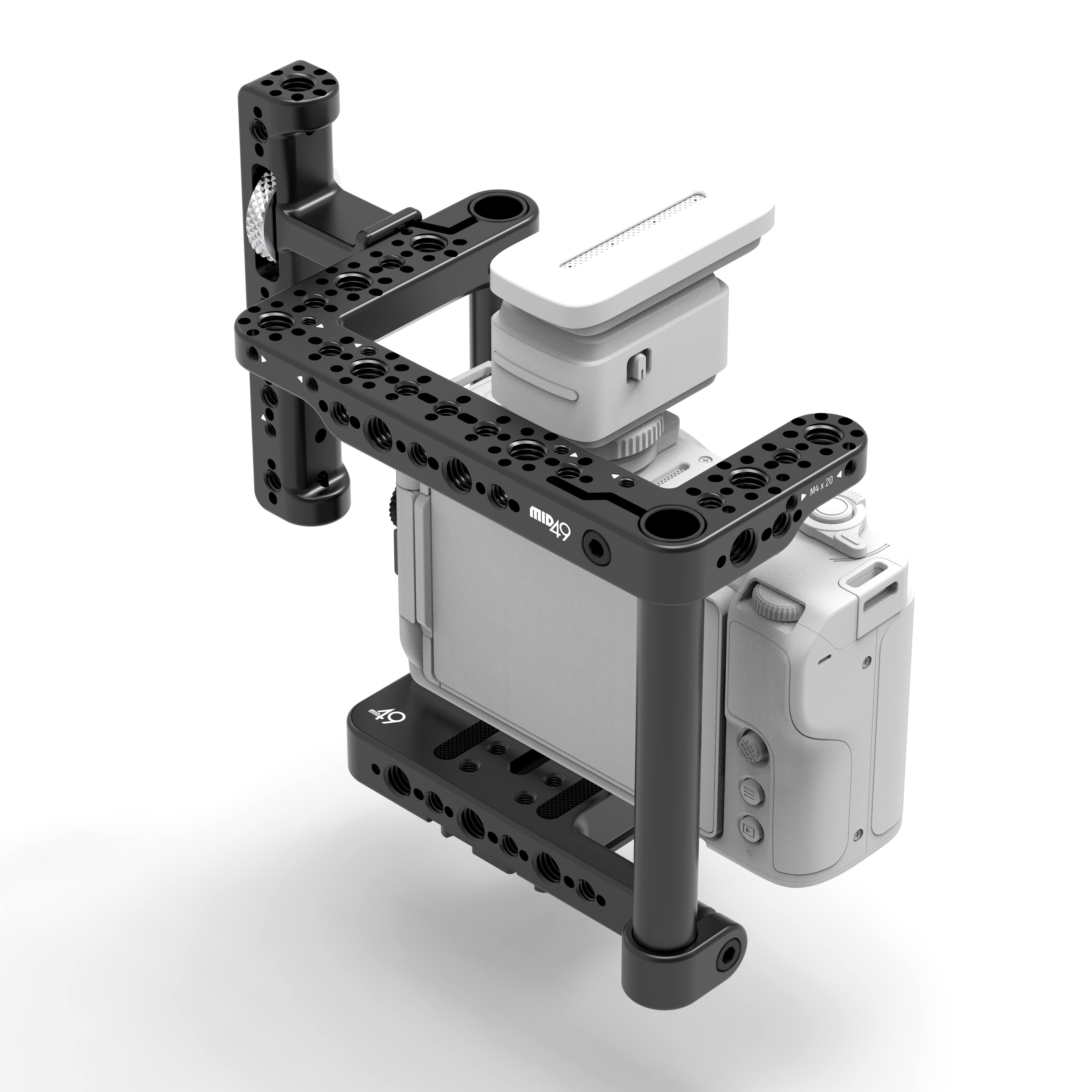

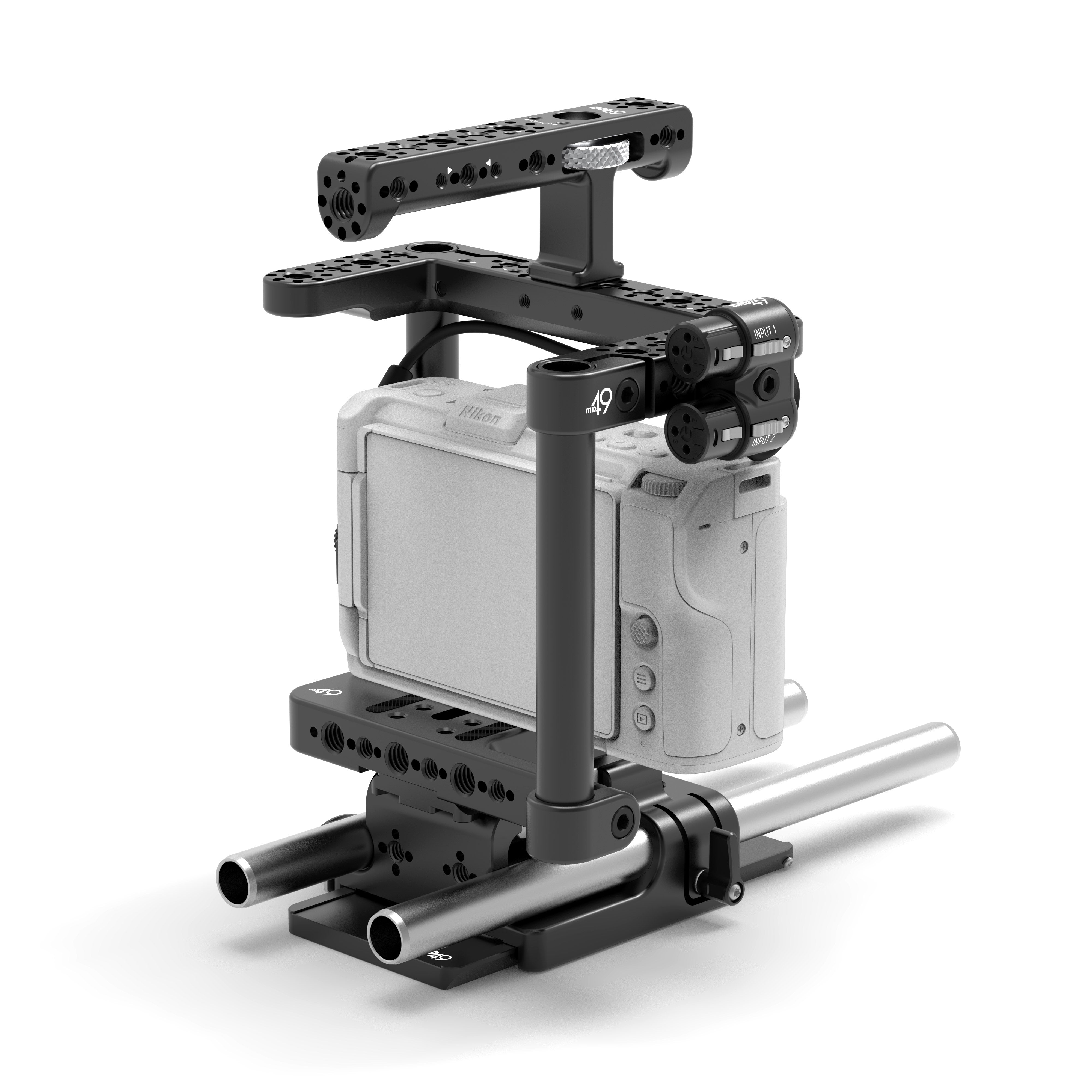

Mid Kit for Nikon ZR is an accessory kit that includes:
A form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places.

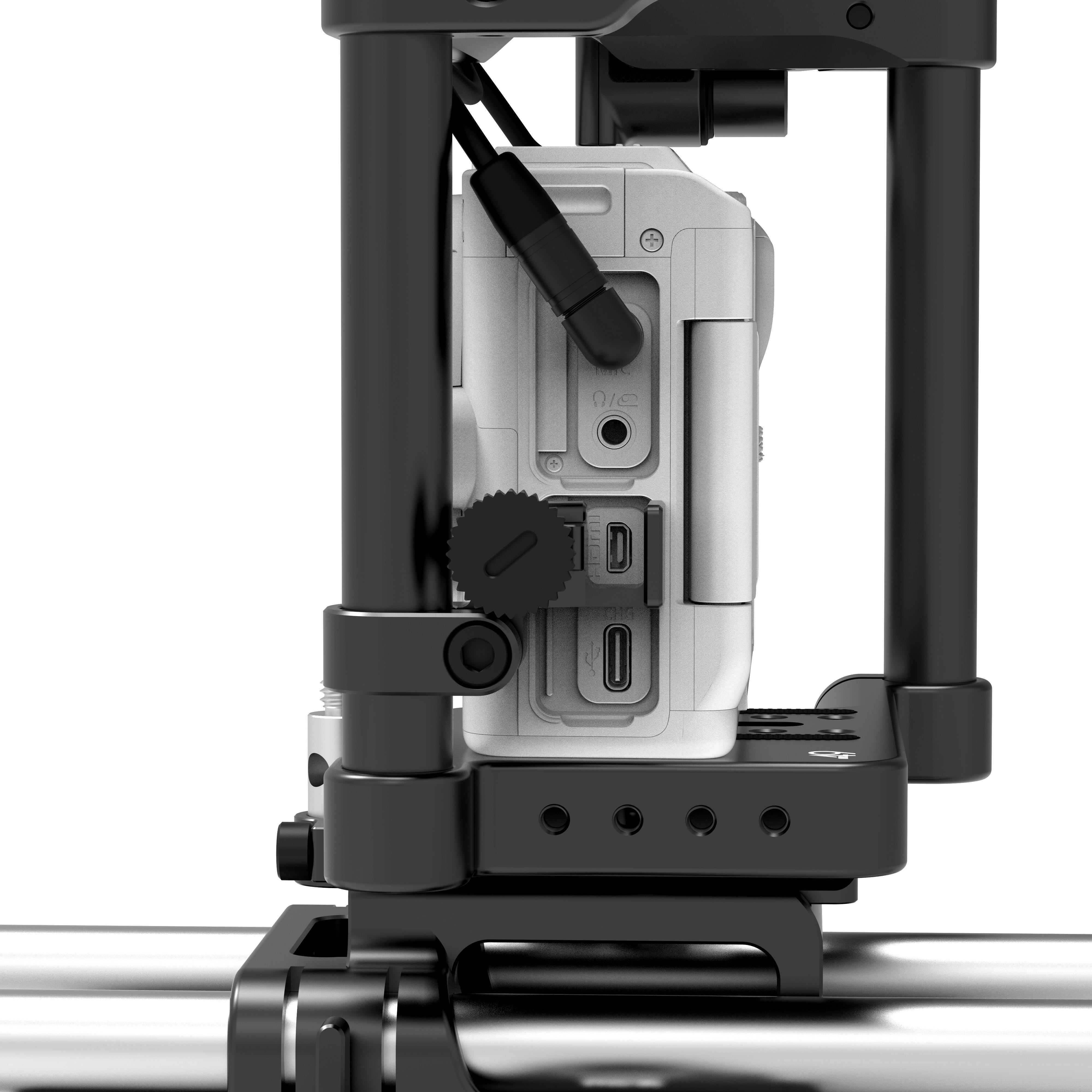

Swing-away HDMI lock protects the camera's micro-HDMI port from abuse while allowing the dust cover to be accessed.

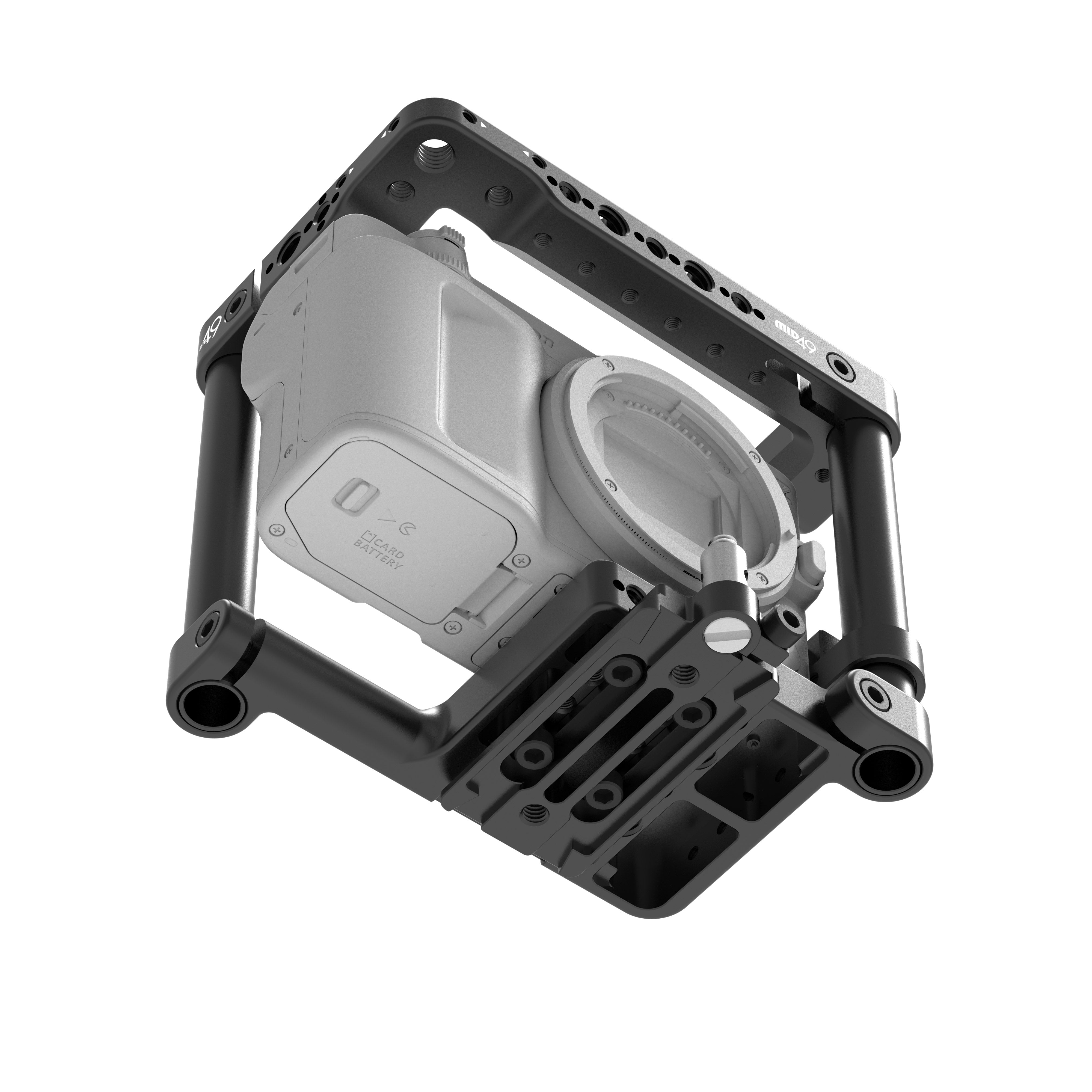

Combination battery and memory card door on the bottom is unobstructed for easy card changes.

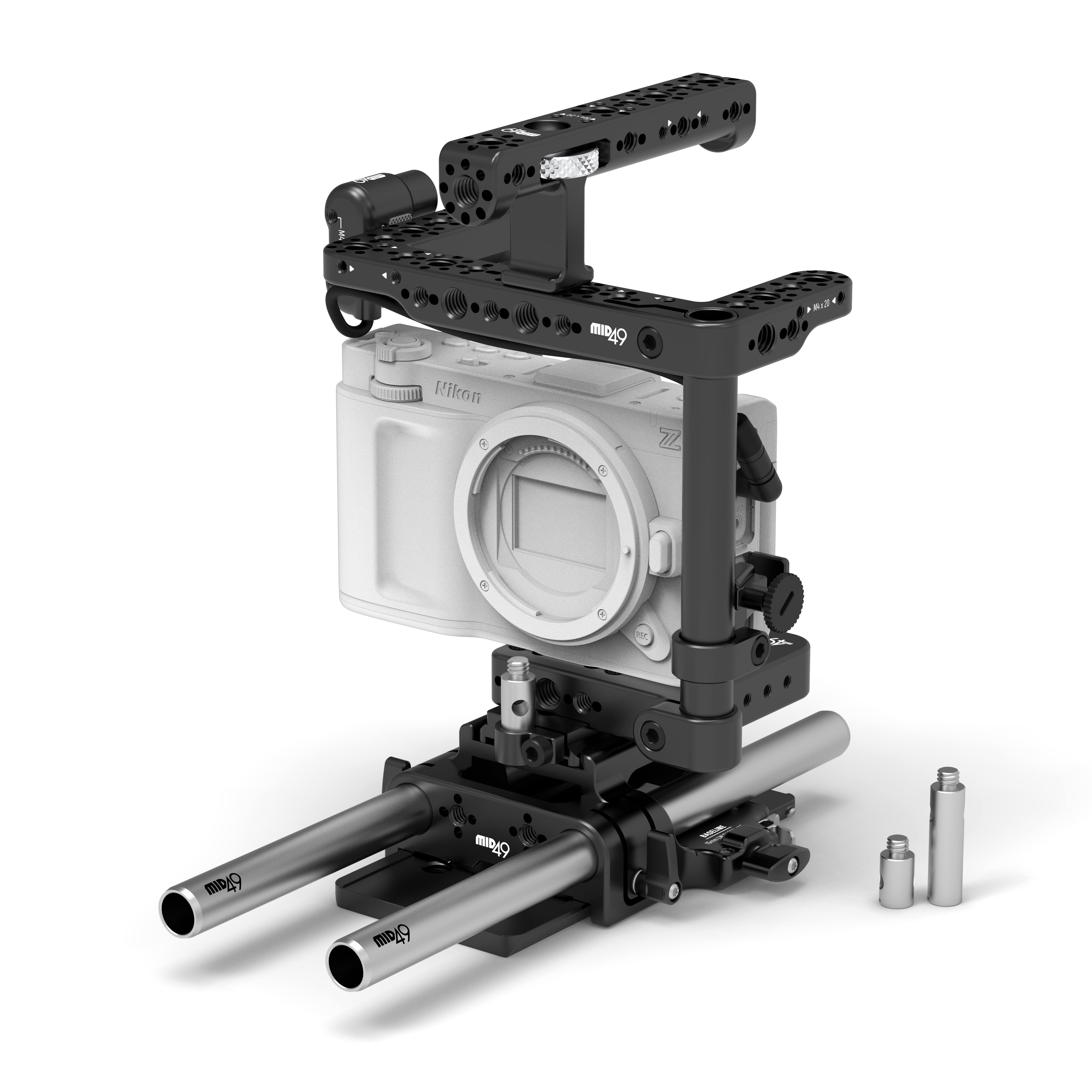

Lower ARCA Swiss dovetail has an adjustable lens support clamp with three included lengths of 1/4-20 support screw that attach to 3rd party lens adapters like Metabones, etc.
Baseline 15mm LW (Upper Cage Nikon ZR)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Low-profile thumbscrew and safety button allow access to the battery and memory card door.
Bolt On Top Handle (ARRI 1/4-20)
Top handle that attaches to a 1/4-20 hole with 3mm locating pin holes spaced 10.4mm center-to-center (ARRI standard).
Locating pins can be removed if alternative mounting is required. Threaded holes are also available at 15mm spacing, which is not standard but is found on some 3rd party cages.
1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes for accessory mounting are available in several places.
Audio Breakout AB-3 (Stereo 3.5mm TRS)
A passive adapter that attaches to the side of the Upper Cage and converts the camera's 3.5mm plug to two standard, full-size XLRs.
2x 15mm Rod (9 inch)
Stainless steel iris rods.
Stainless steel iris rods.
Product Weight: 29.2oz (830g)
