Description

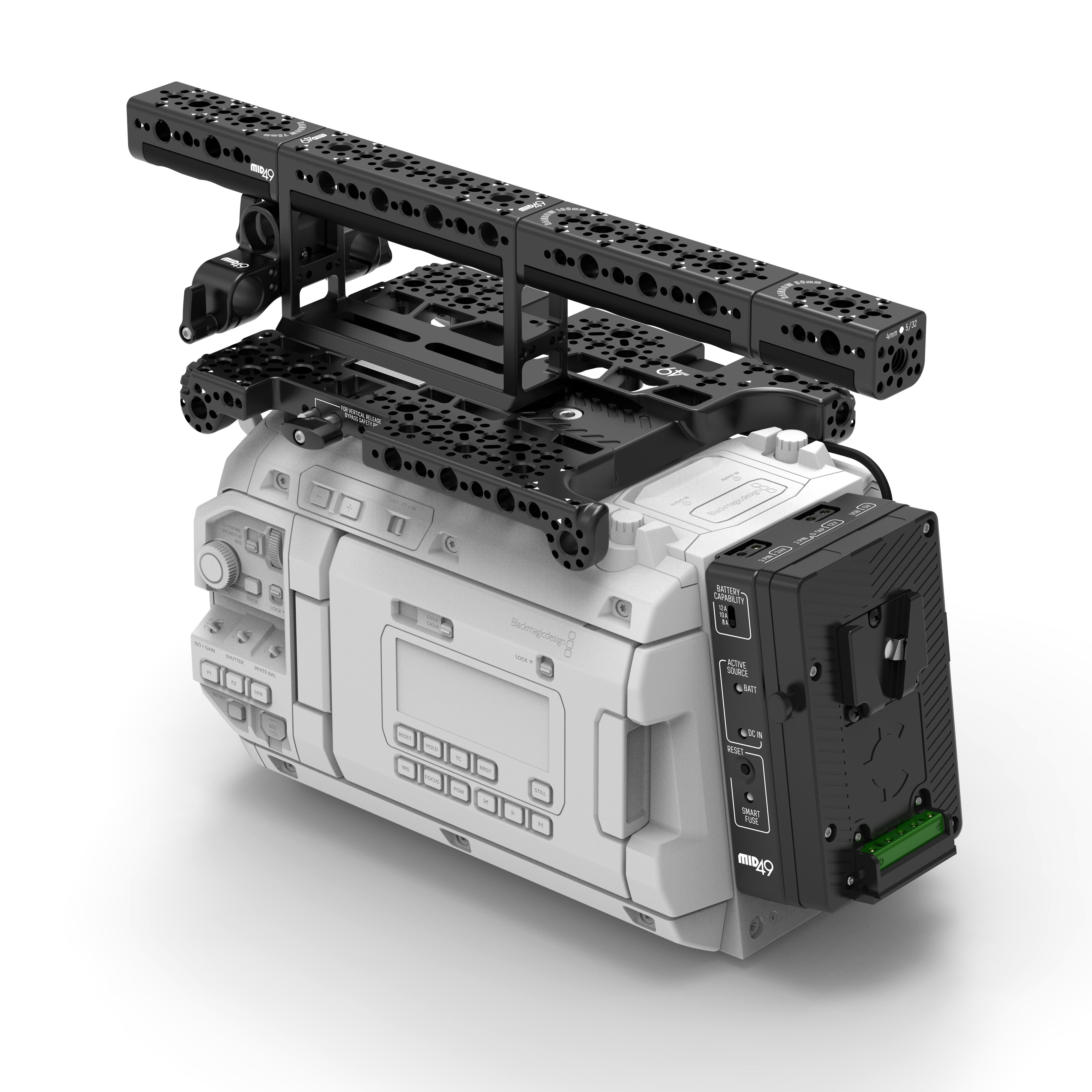

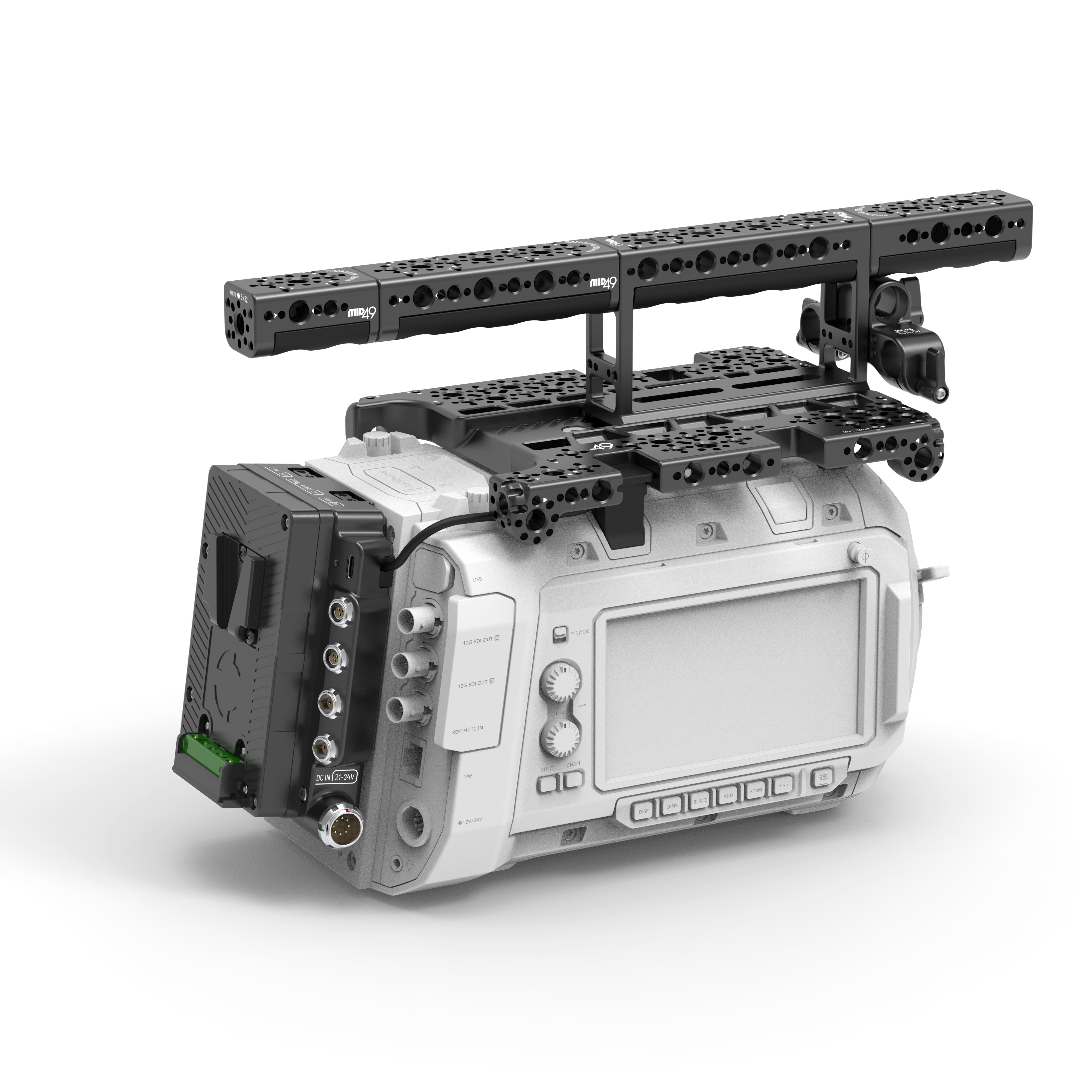

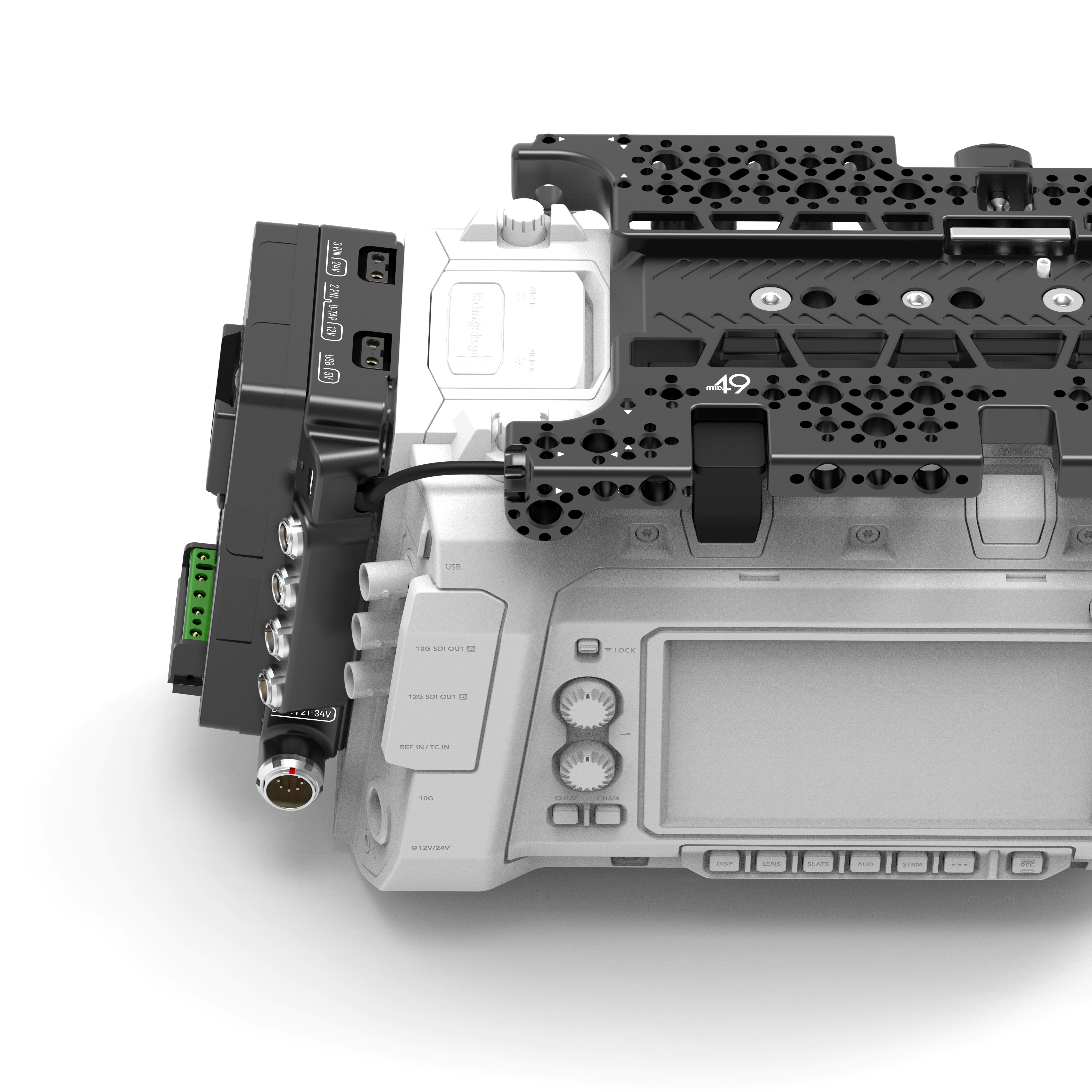

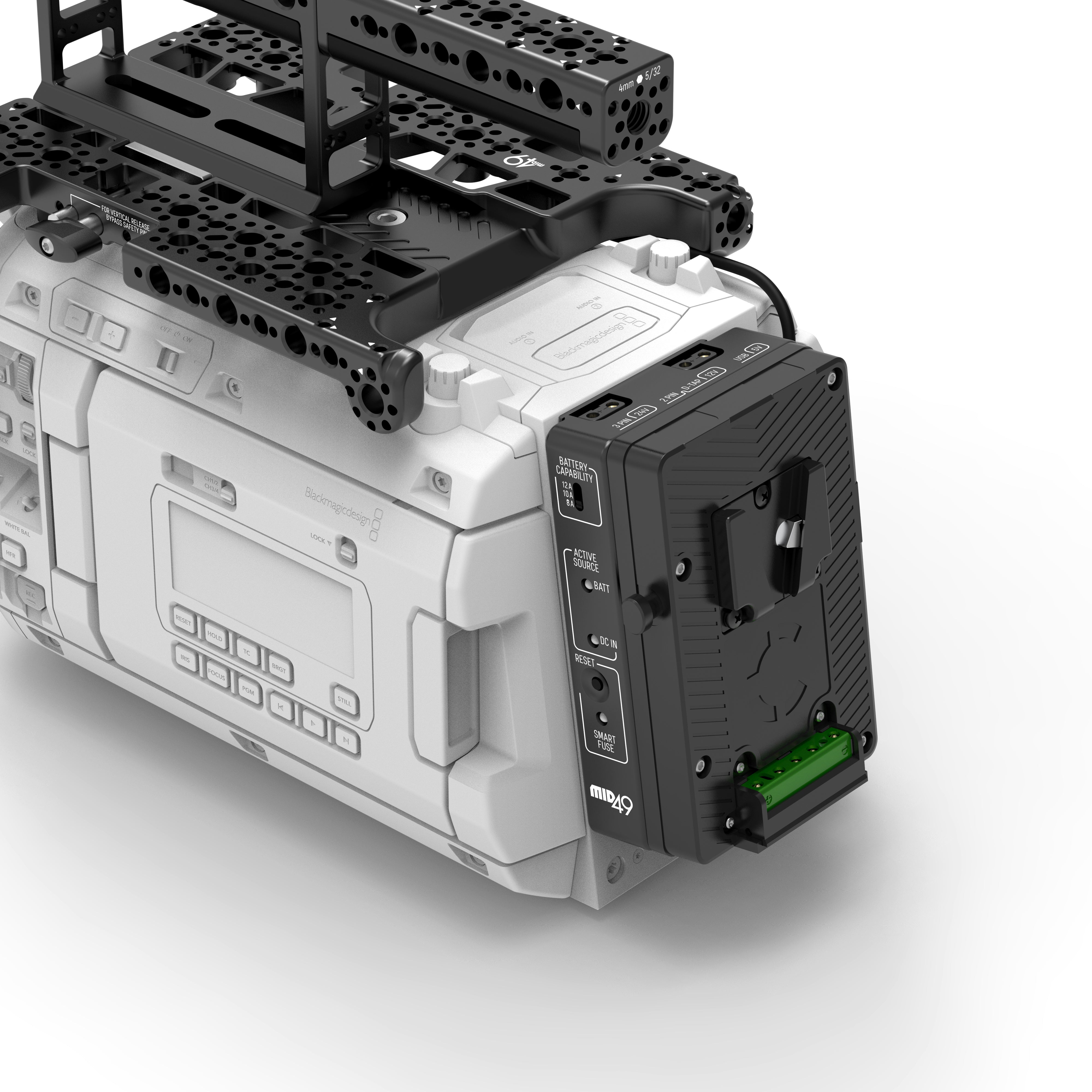

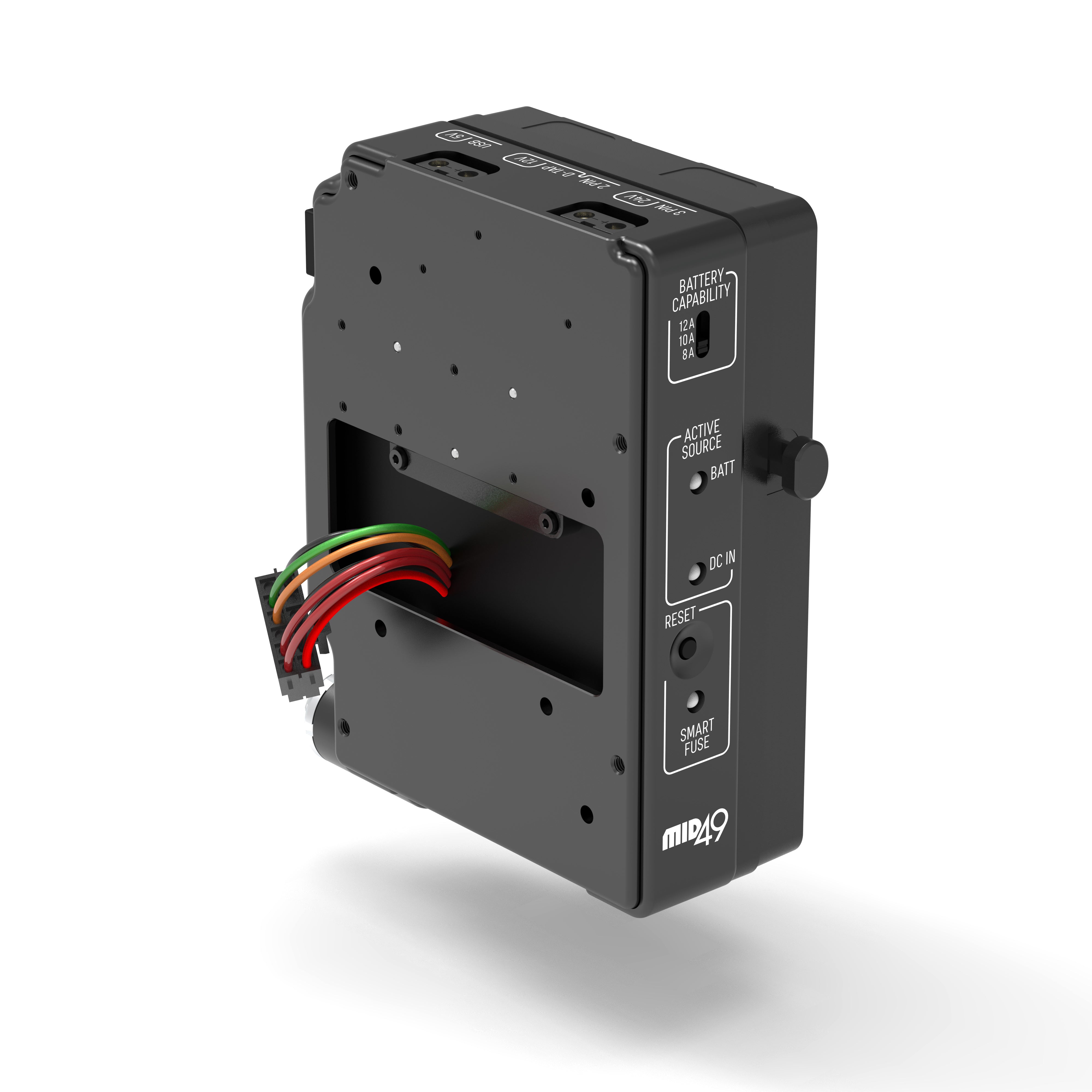

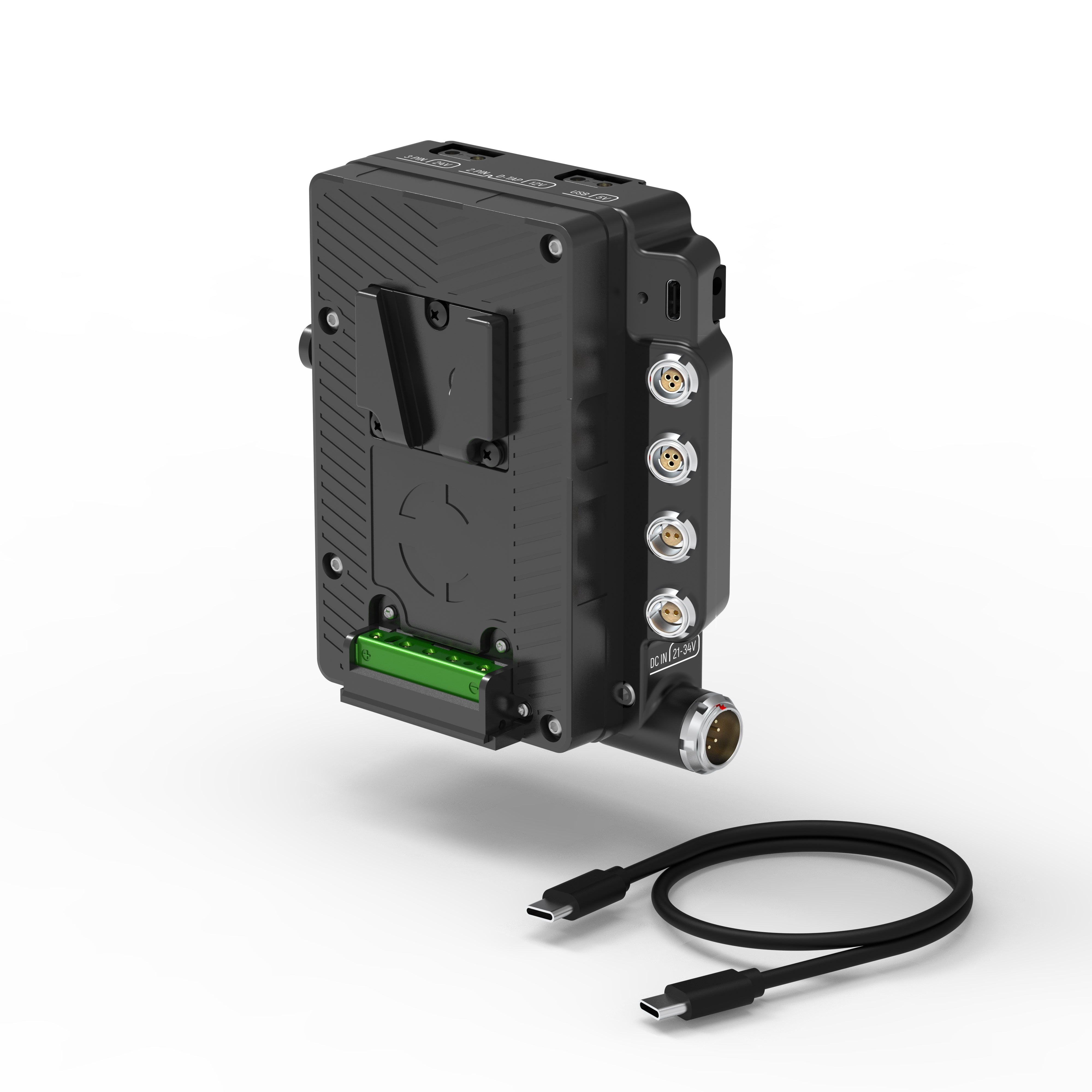

Power Distribution Box DB-12 (Blackmagic URSA Cine, V-Mount High Voltage) attaches directly to the camera body using five M3 screws and provides intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors.

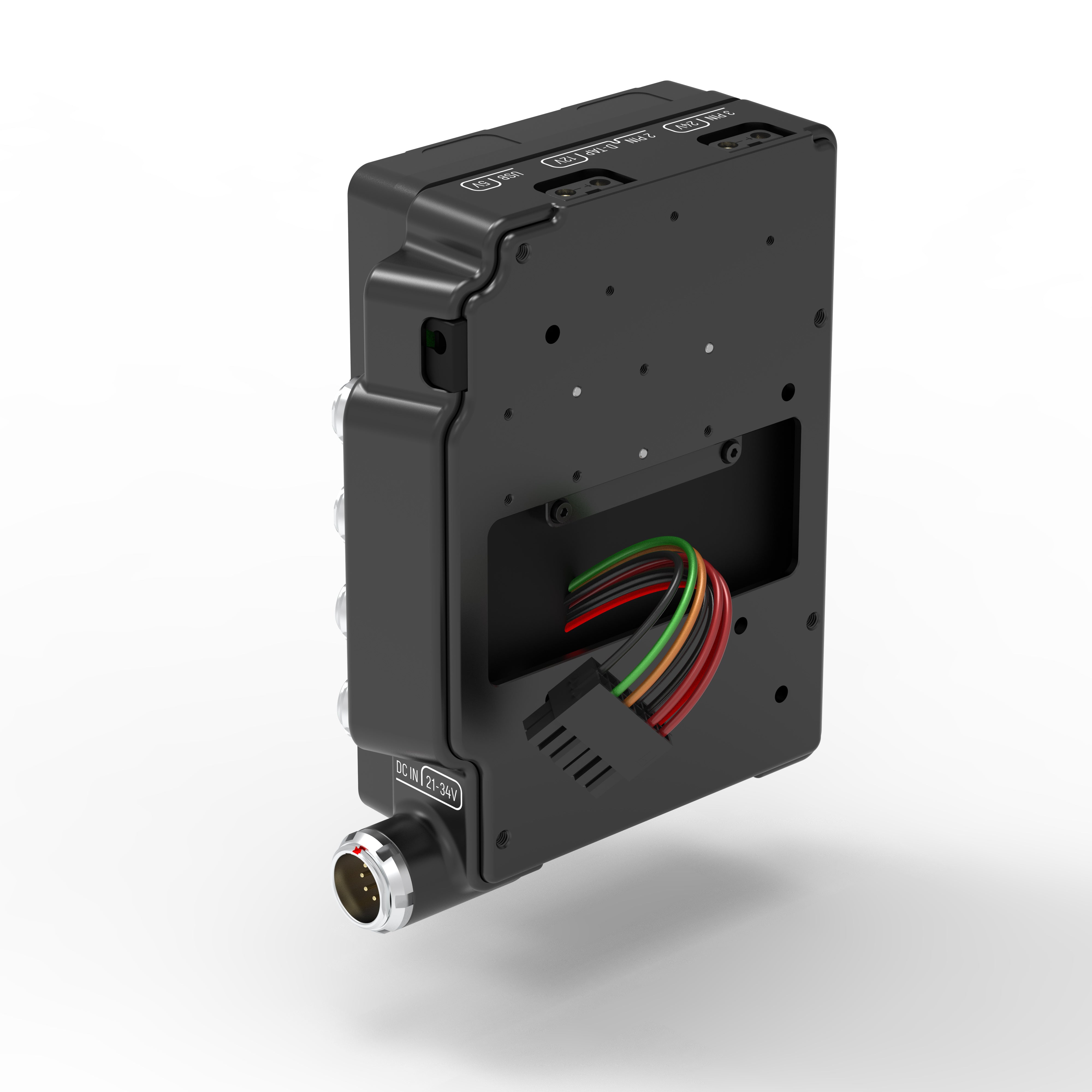

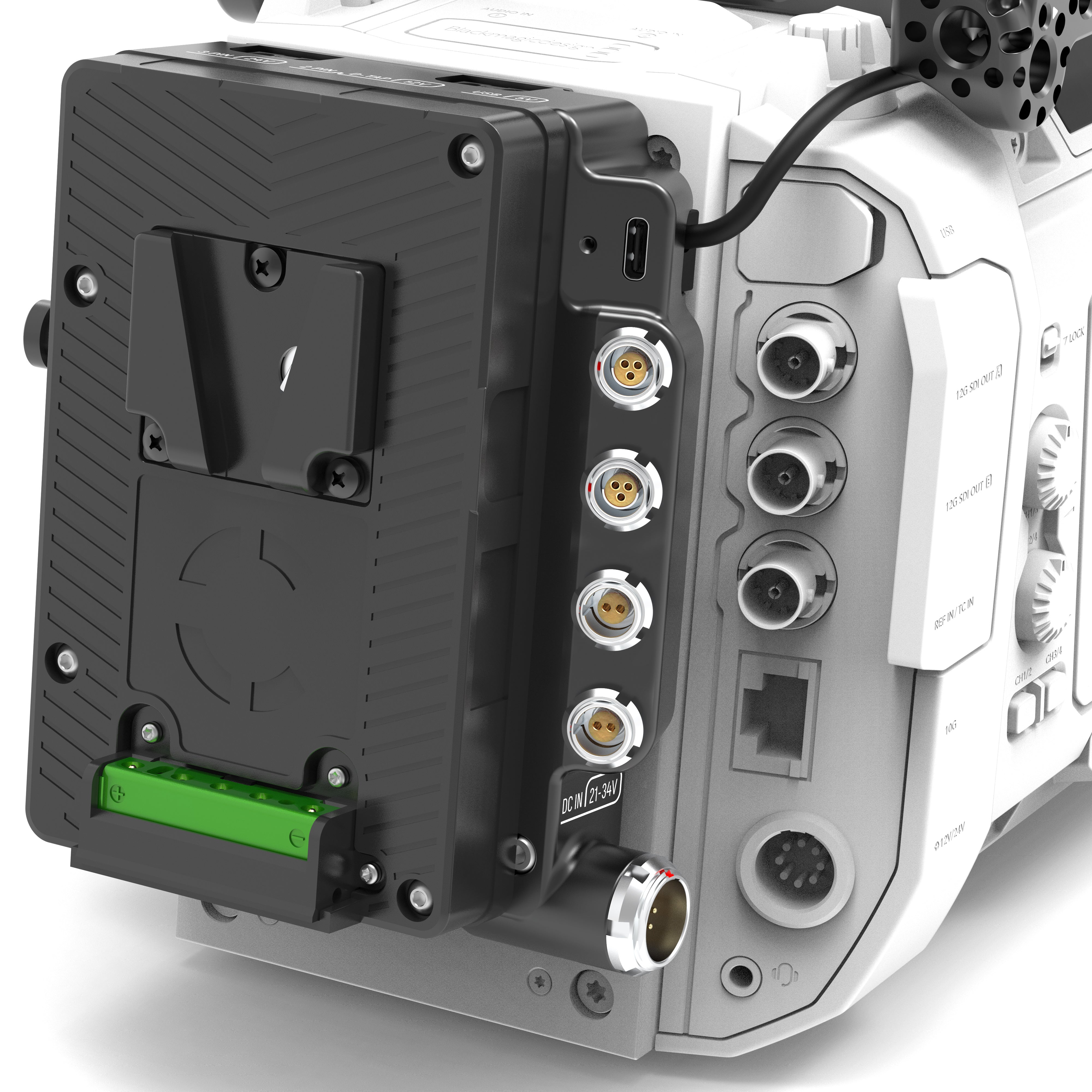

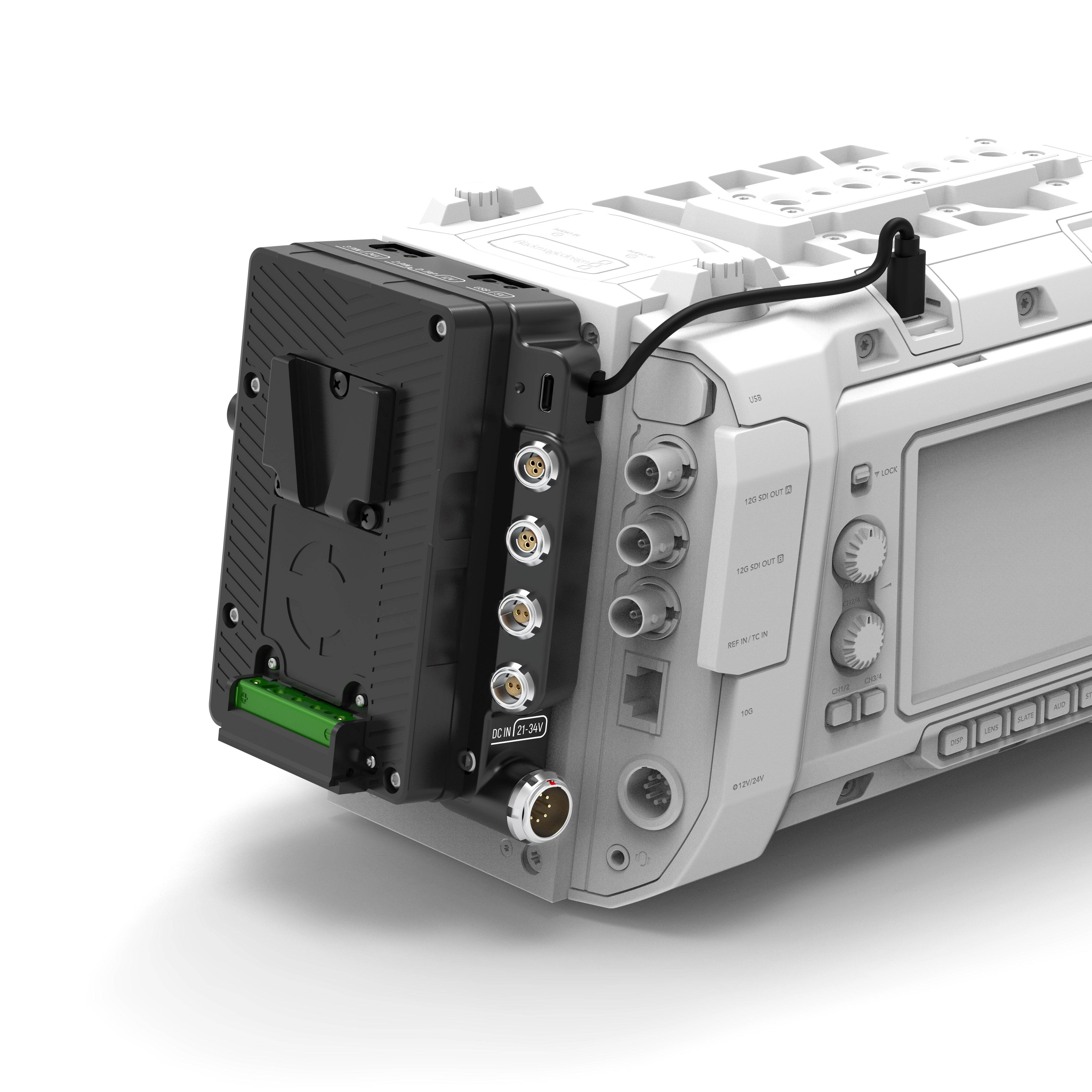

The included USB-C cable can be installed inside DB-12 and connected to the top-rear port on the camera body to enable remote start/stop capability using 3-pin Fischer devices.
Hot-swap between on-board battery and 8pin LEMO compatible connector without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 22.8V at which point, the DB-12 will switch to an onboard battery.

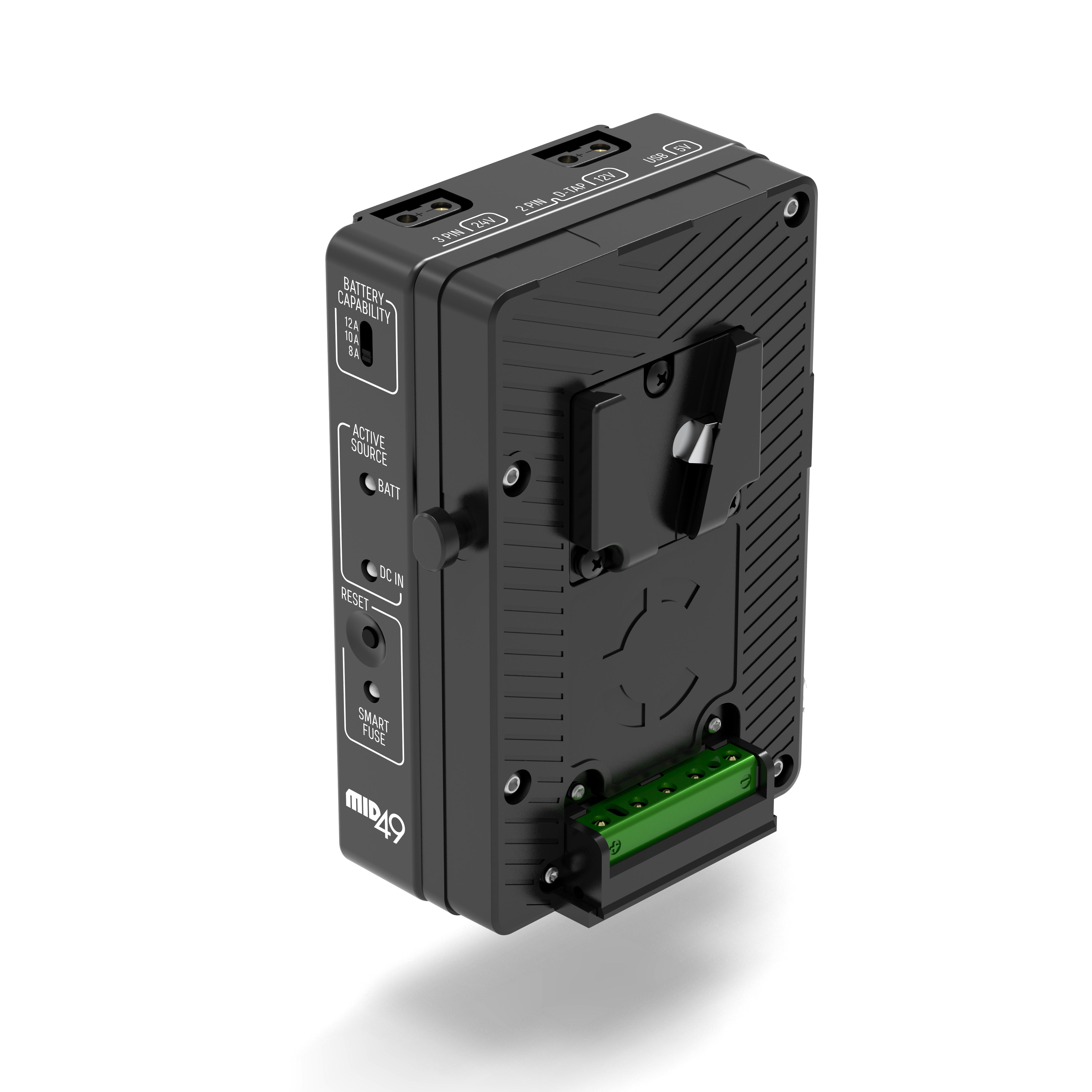

With the SMART FUSE design, camera power is monitored, and the remaining power budget is allocated to accessories. For example, the URSA Cine uses approximately 4.8A at 28V, so when using a 10A capable battery, the remaining 5.2A is allocated for accessory use. If an accessory configuration exceeds the 5.2A limit, accessory power is cut off, leaving the camera powered. The "SMART FUSE" LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 5.2A, the RESET button can be pressed, and power will be re-enabled to accessory outputs.
In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.
INPUTS
BATT V-Mount High Voltage Plate

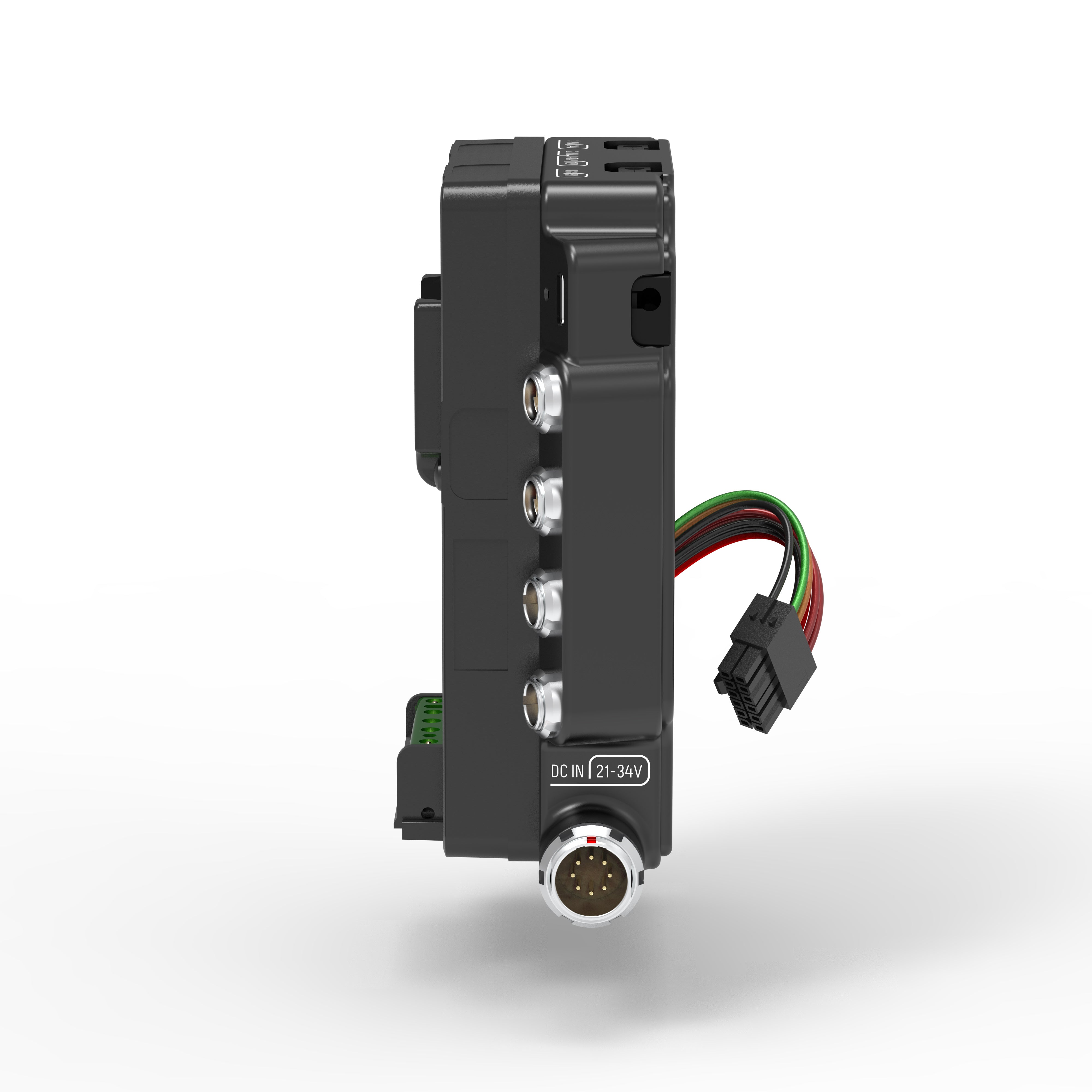

DC IN 8pin (21-34V)
OUTPUTS
2x D-Tap (15V regulated)
2x 3pin (battery voltage with run/stop)
2x 2pin (15V regulated)
1x USB-C PD (5V at 3A with thread lock)
Also available in a Gold Mount and B-Mount versions.
COMPATIBLE CAMERA MODELS
URSA Cine 12K LF
URSA Cine 17K 65
URSA Cine Immersive
COMPATIBLE BATTERIES
This product is only compatible with newer Core HIGH VOLTAGE V-Mount batteries, which are listed below and have a current rating of 10A at 28V.
HLX-9MXS Core SWX Helix Max 98Wh
HLX-150MXS Core SWX Helix Max 147Wh
HLX-275MXV Core SWX Helix Max 275
HLX-360MXV Core SWX Helix Max 360
HLX-99UMXV Core SWX Helix Max Ultra 99Wh
HLX-160UMXV Core SWX Helix Max Ultra 156Wh
HLX-300UMXV Core SWX Helix Max Ultra 297Wh
HLX-400UMXV Core SWX Helix Max Ultra 395Wh
APX-360HV Core SWX APEX 360 High Voltage
INCOMPATIBLE BATTERIES
Standard 14.4V batteries will NOT power the camera system.
Also, early versions of CORE dual voltage products utilized a voltage boost converter rather than cells arranged to produce 28V natively. These boost-style batteries are NOT able to sustain the power needs of the DB-12 / URSA Cine. They can generally be identified by a maximum current rating of 6A at 28V and are listed below.
HLX-9S Core SWX Helix 9 Mini 98Wh
HLX-150S Core SWX Helix 150 Mini 147Wh
HLX PRIME S Core SWX Helix Prime 190Wh
HLX XLS Core SWX Helix XL 293Wh
Similarly, the CORE Maverick Block Battery uses a voltage boost converter to get to 28V and introduces an immense amount of noise into the system, so much so that the DB-12 cannot validate it as a reliable source while an on-board battery is connected. Maverick batteries can only be used when it is the first power source connected.
MV6 Core SWX Maverick Block Battery
Product Weight: 13.6oz (385g)
