Breakout Boxes and Side Plate Bundle for RED KOMODO-X


Sale price$595.00

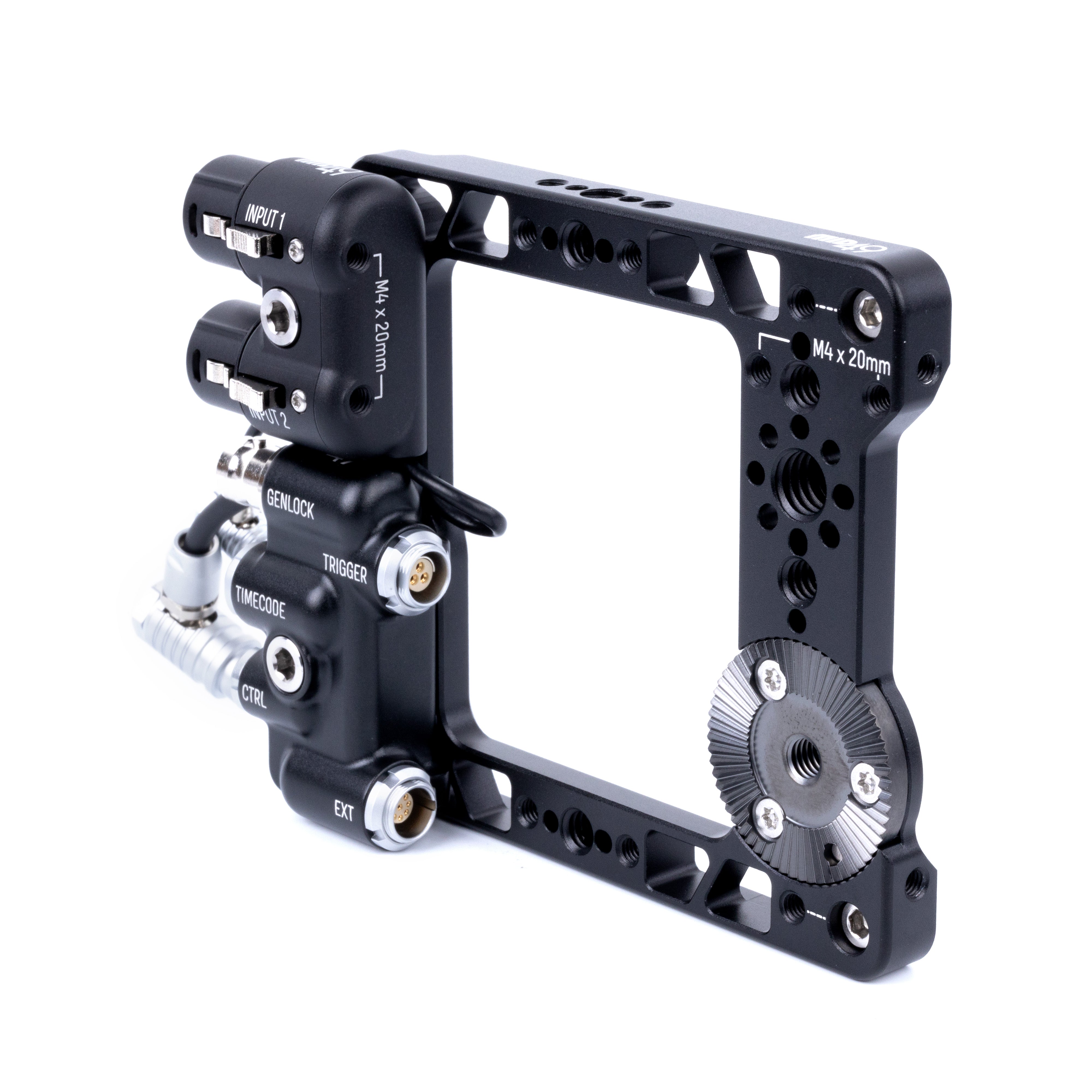

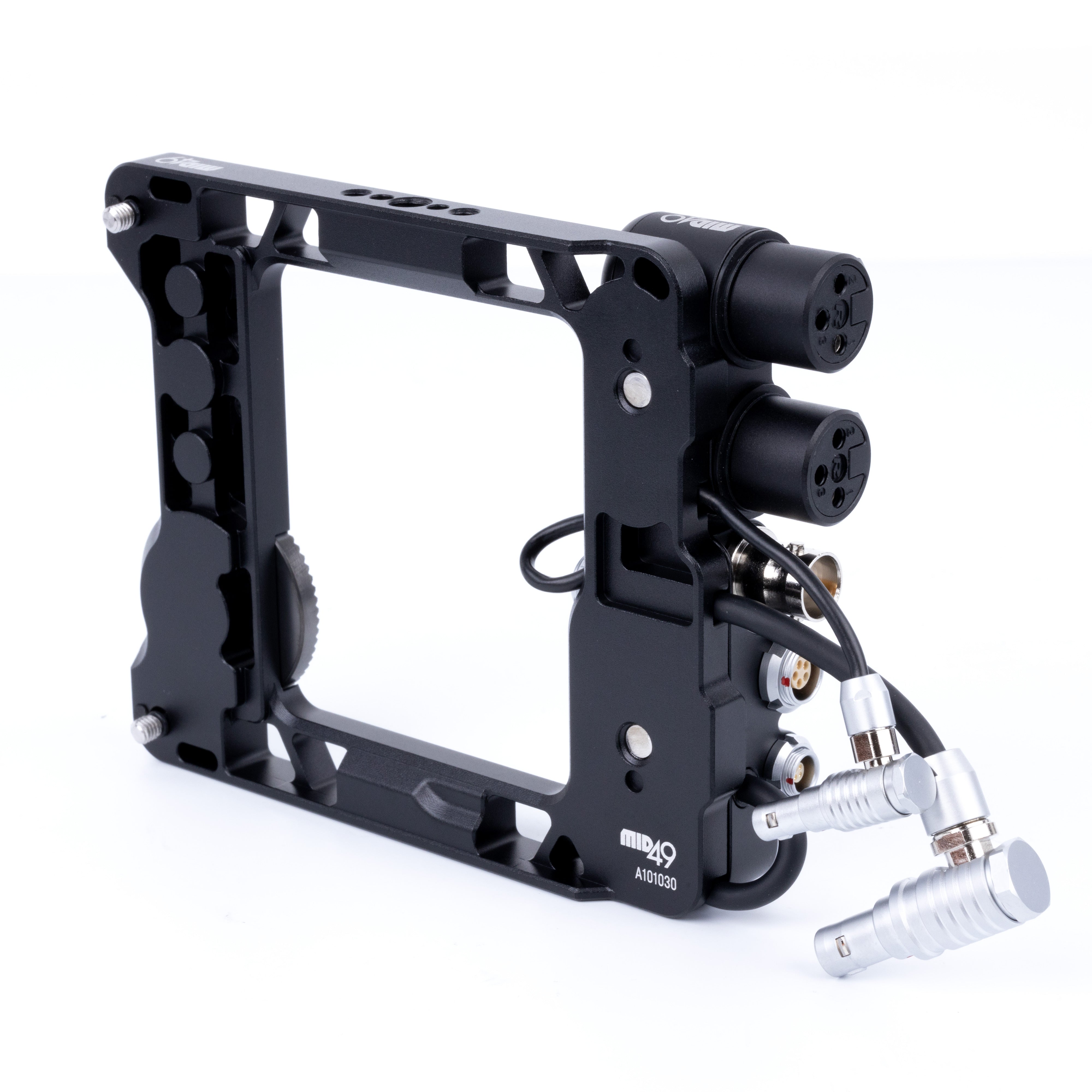

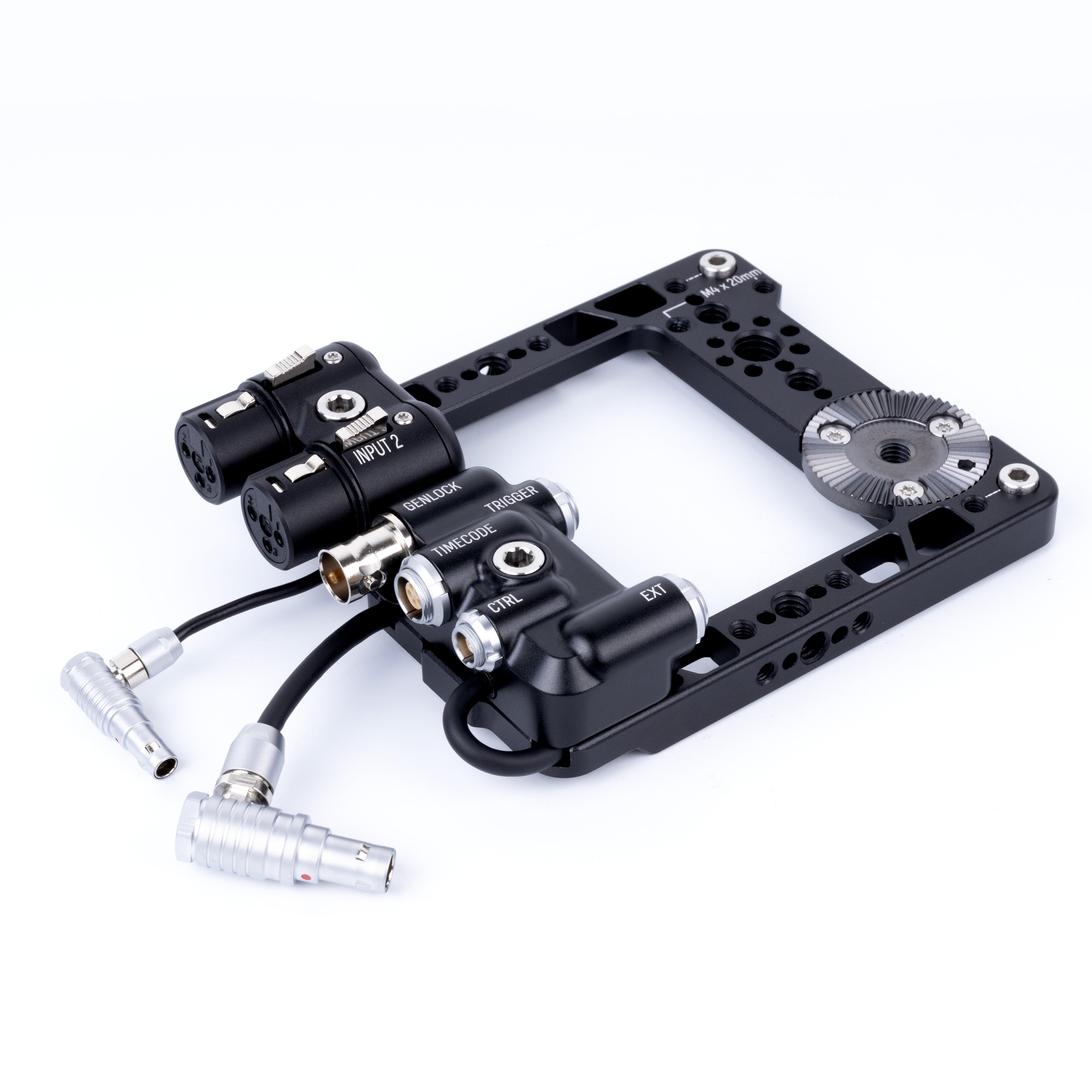

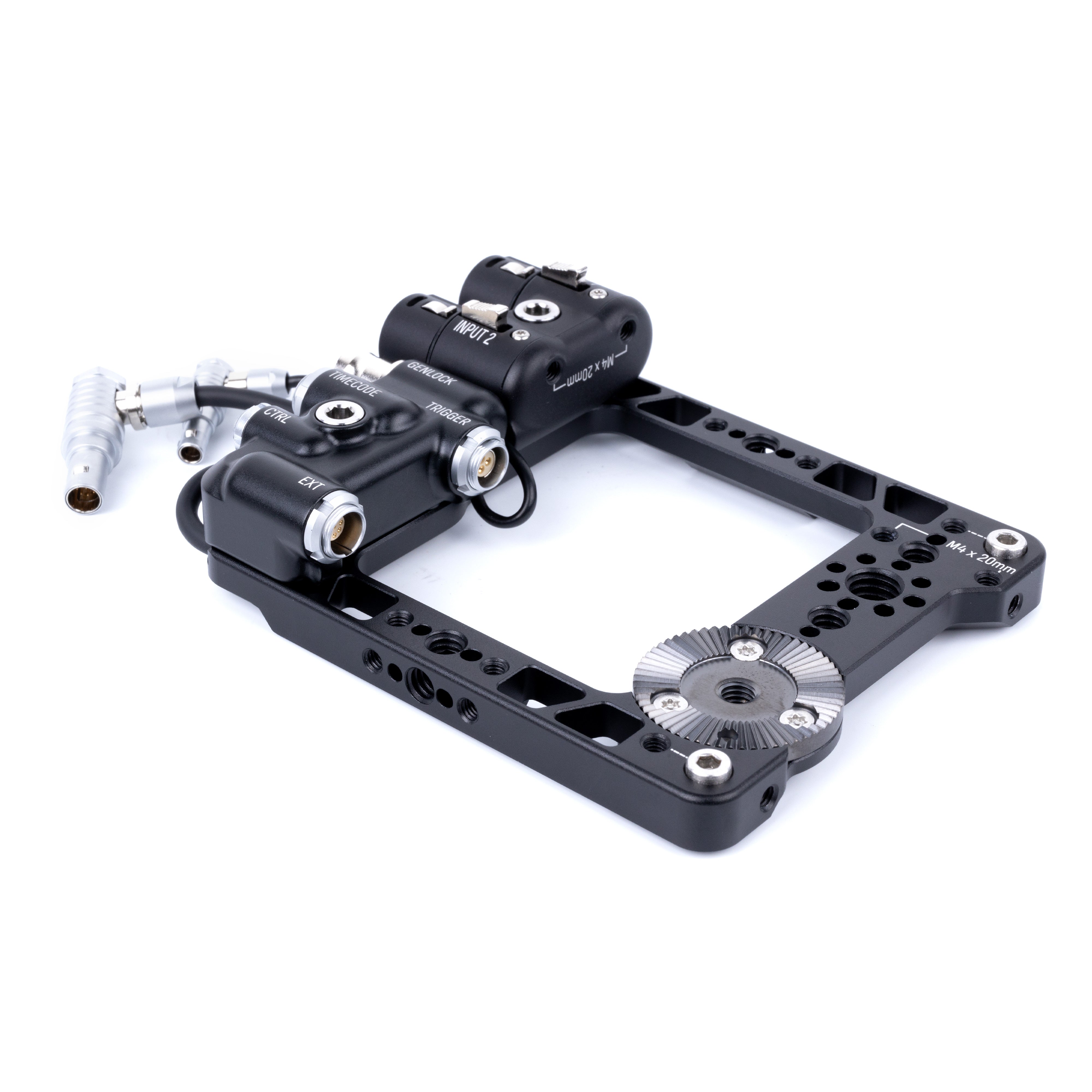

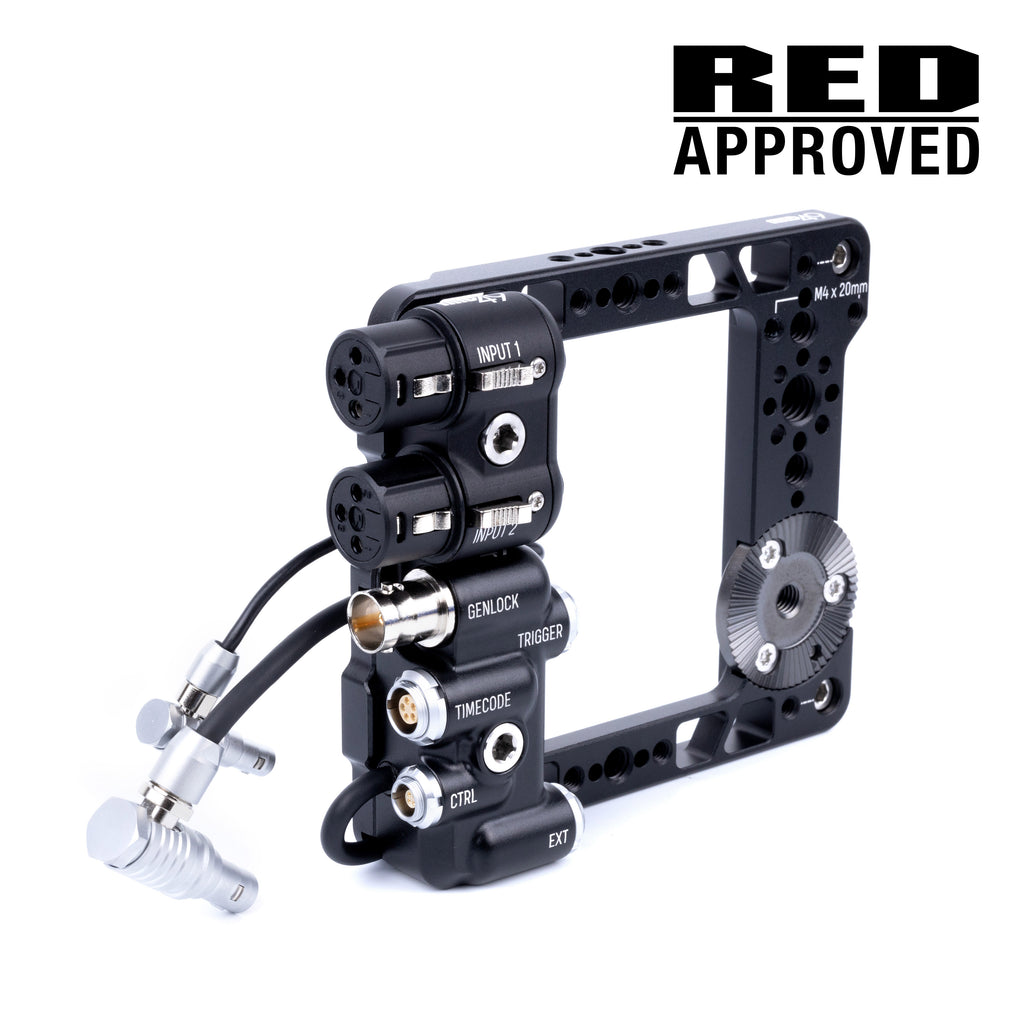

Breakout Boxes and Side Plate Bundle for RED KOMODO-X includes:

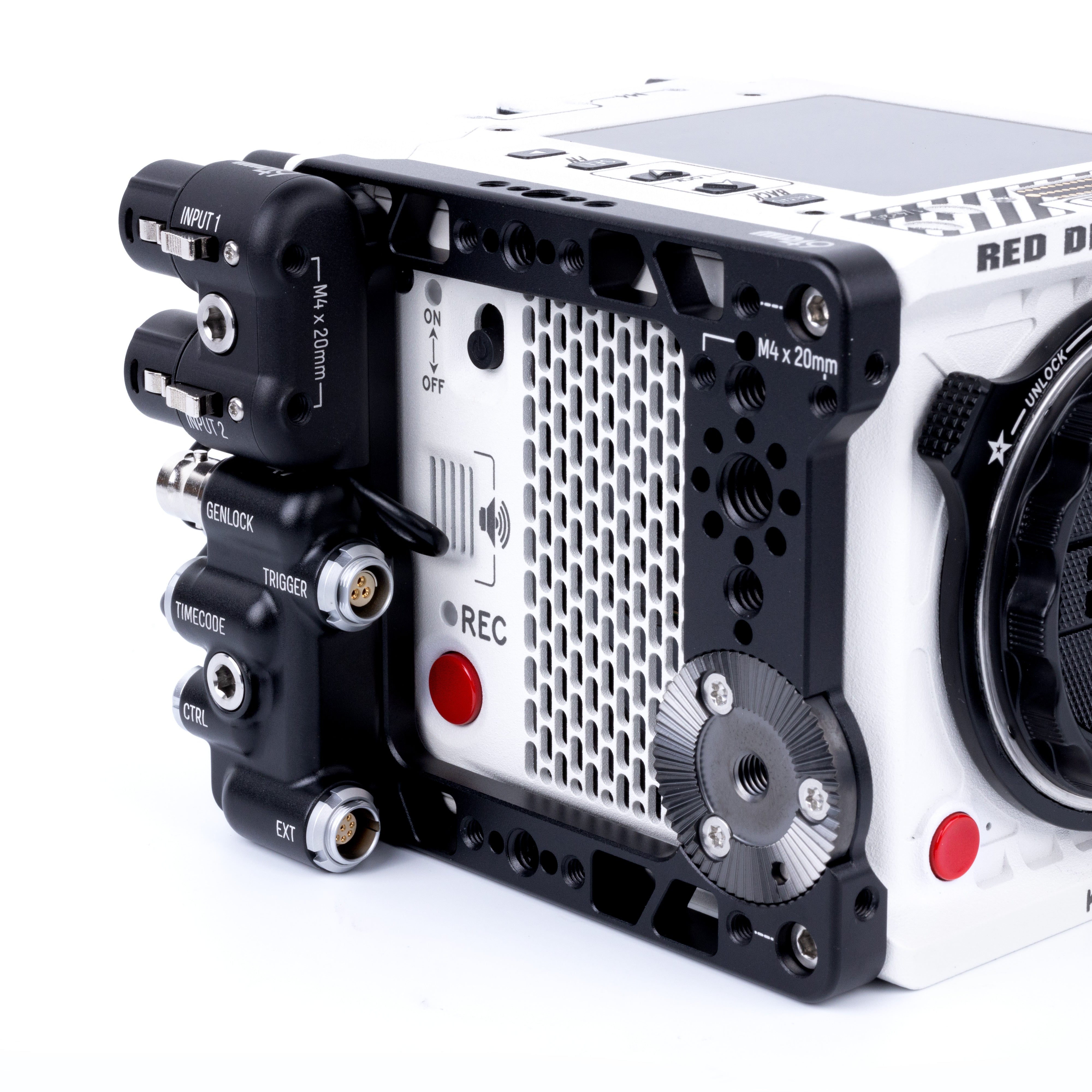

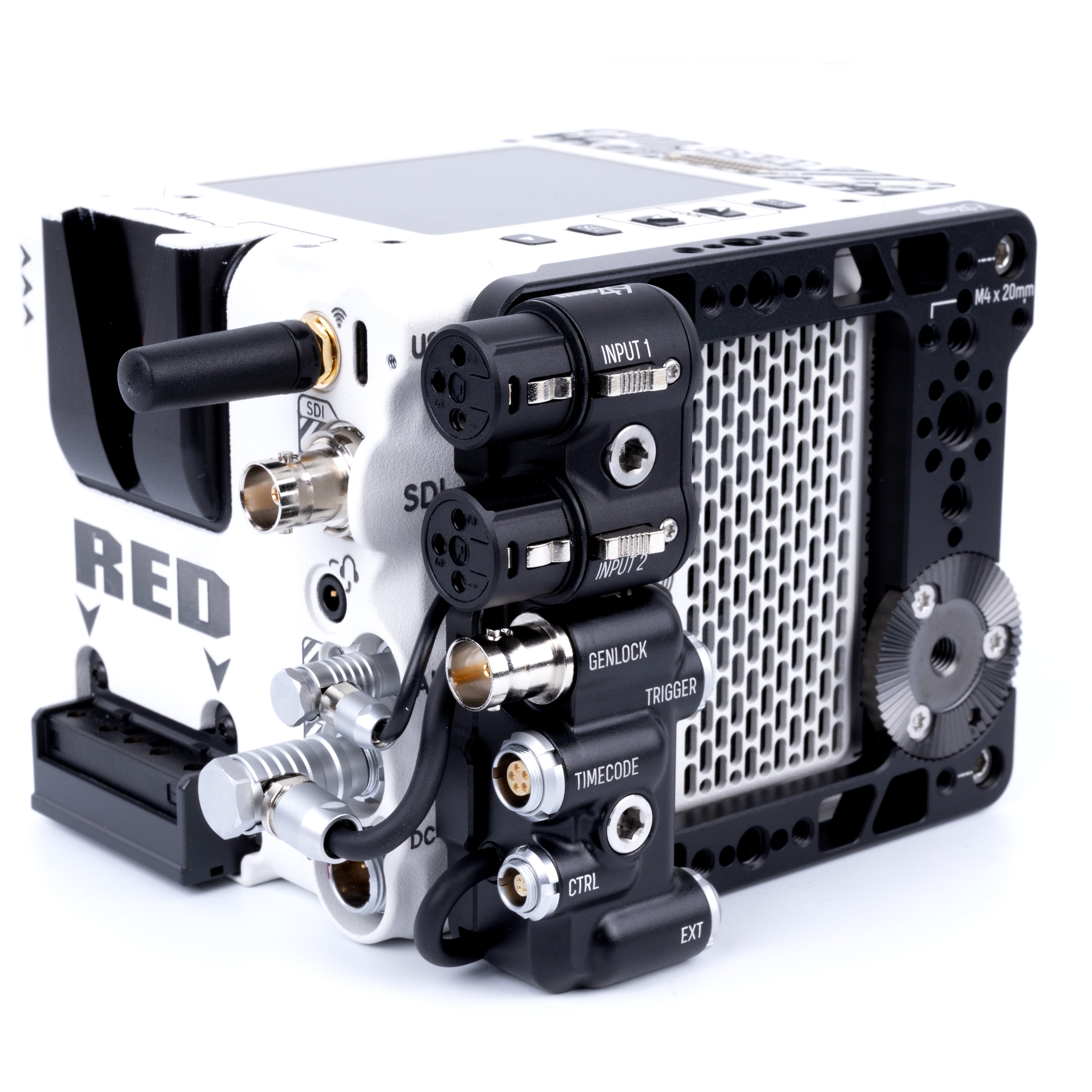

Breakout Side Plate for RED KOMODO and KOMODO-X

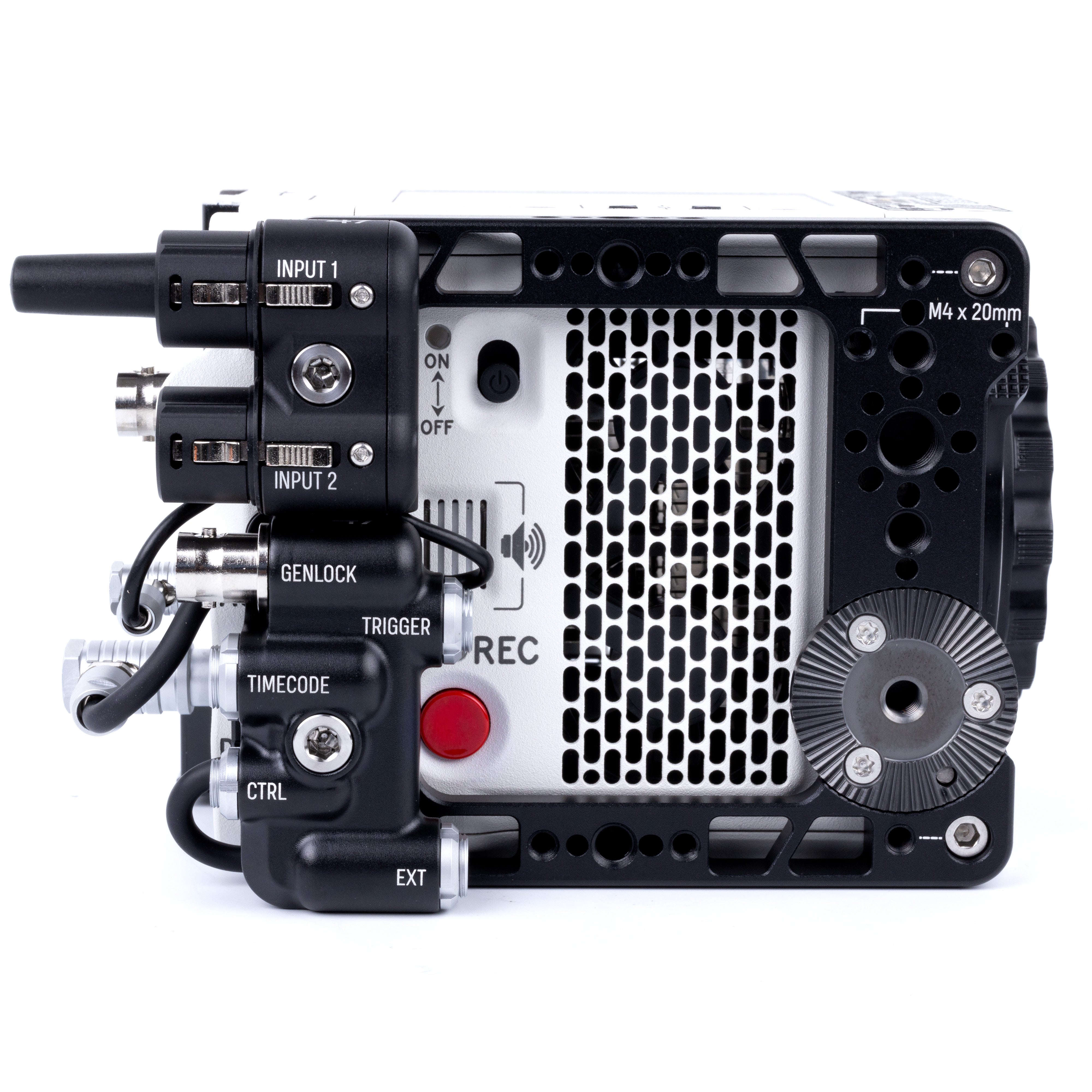

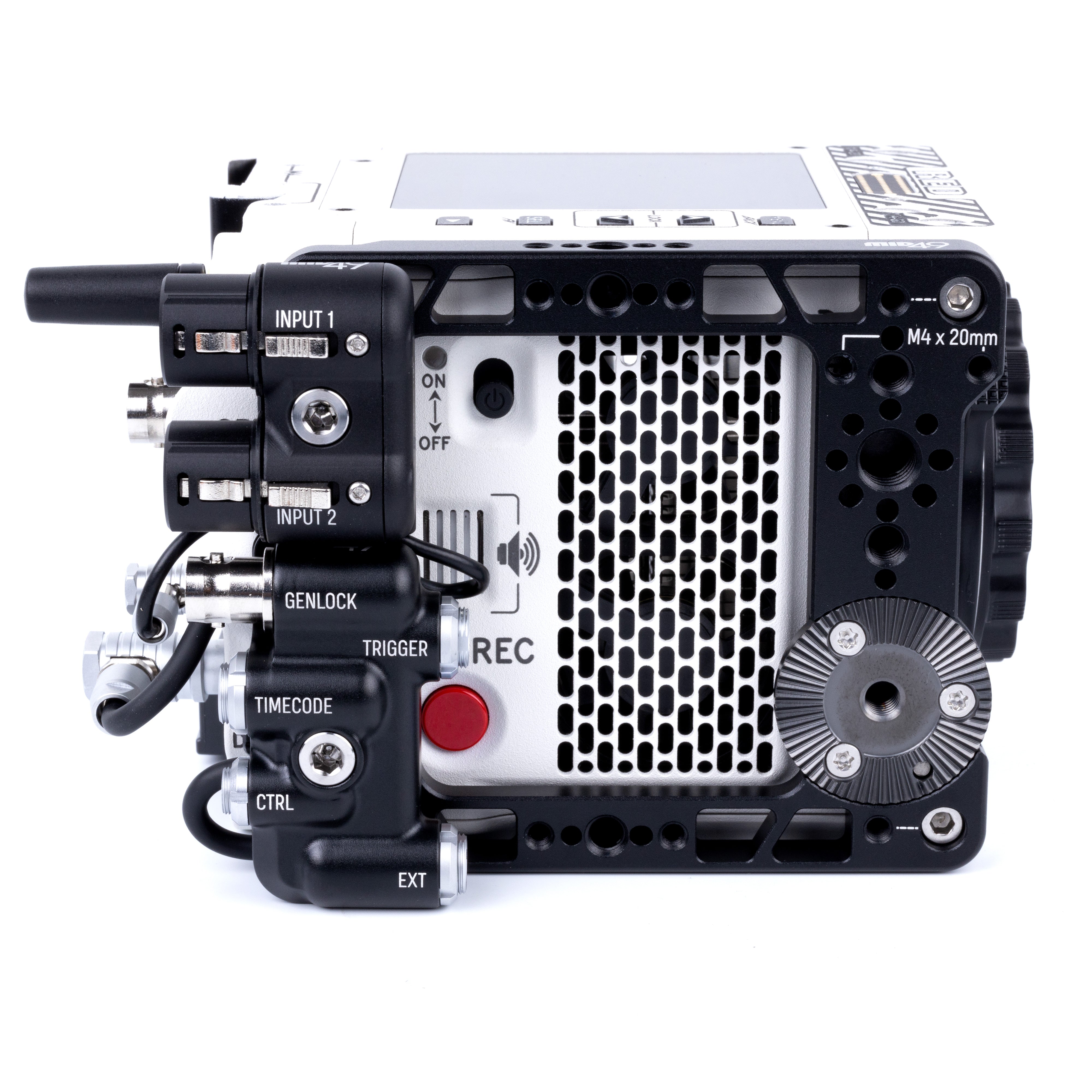

A mounting plate that attaches to the side of the RED Komodo-X and provides 1/4-20, 3/8-16 with ARRI locating pins, an ARRI standard rosette, and M4x20mm threaded holes. Rear 1/4-20's provide ideal mounting locations for breakout boxes, and recessed cable loops in the side plate allow for clean cable management.  See the install guide video here.

AB-1 (RED Komodo-X, V-Raptor, ARRI Alexa Mini)
A passive adapter that converts the camera's 5-pin 00 LEMO to two standard, full-size XLRs and attaches by a captive 1/4-20 screw and rubber pad.

EB-1 (RED Komodo, Komodo-X, V-Raptor)
An EXT port
converter that provides industry-standard connectors:

Genlock 75-ohm BNC
Timecode  5-pin 0B
CTRL  4-pin 00
Trigger  3-pin Fischer
EXT Pass-Through 9-pin 0B


The Side Plate is compatible with RED's PL Mount support, as seen in this installation guide.

Product Weight: 7.00oz (200g)
Product Dimensions (WxLxH): 4.69 x 3.72 x 1.28in (119 x 95 x 33mm)
