Description

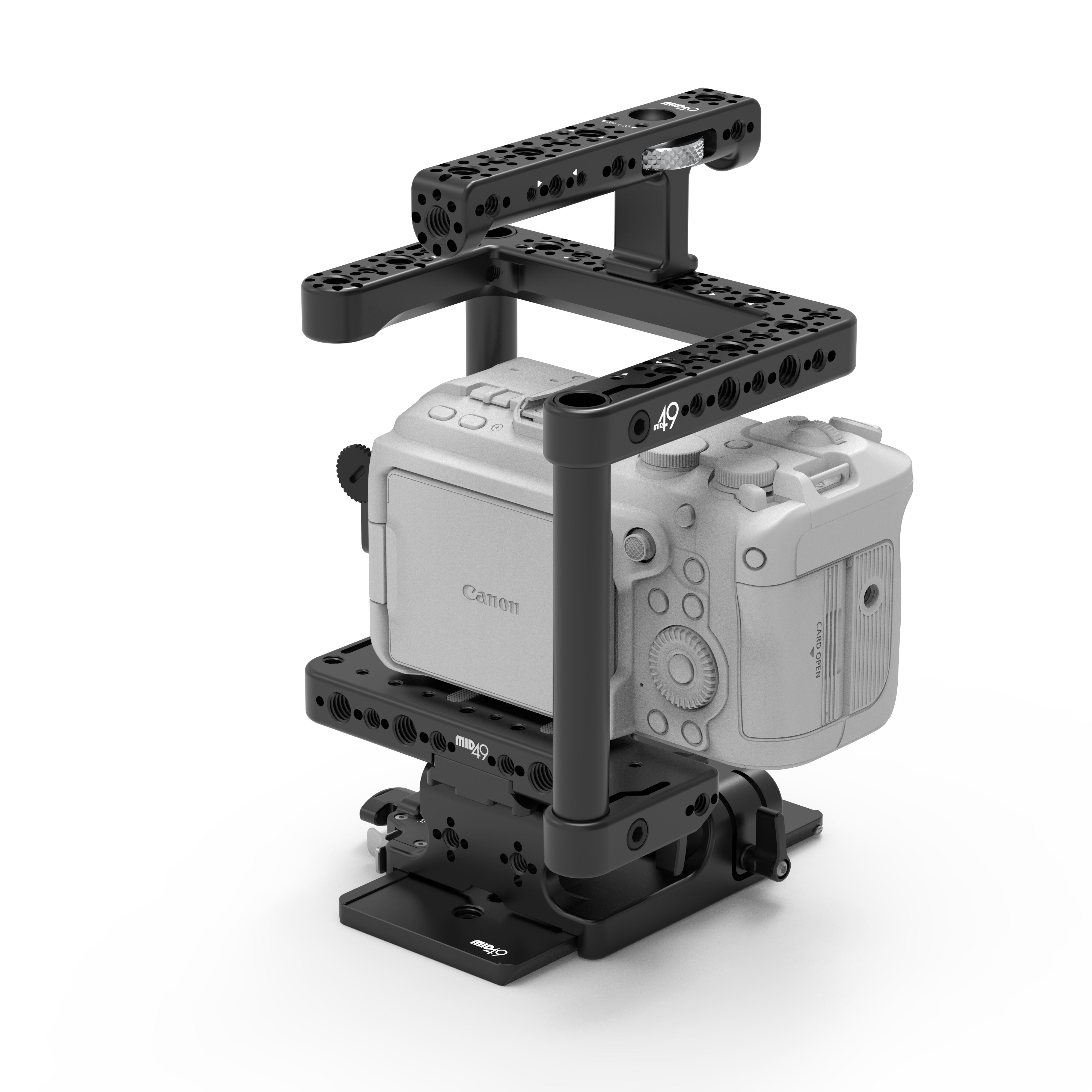

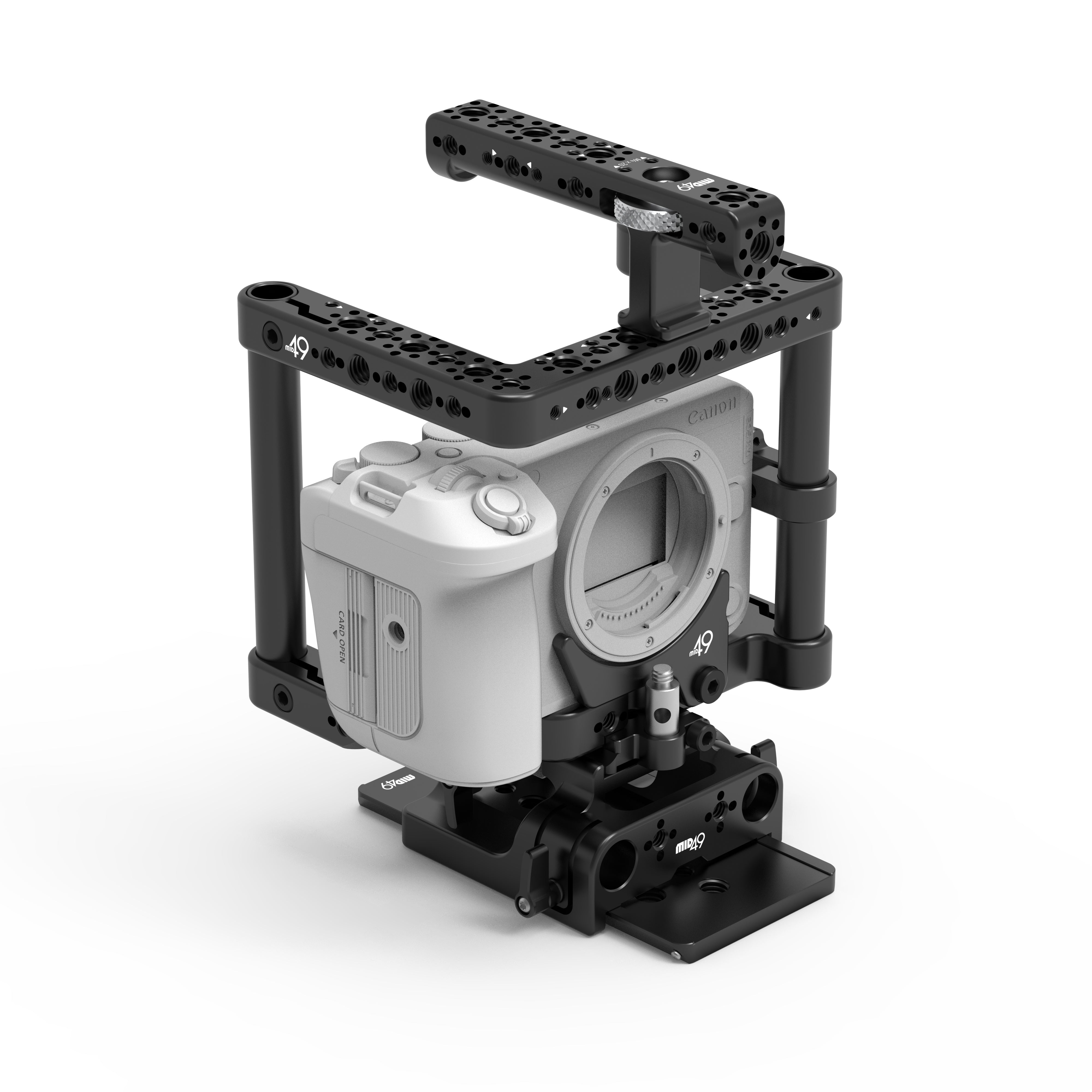

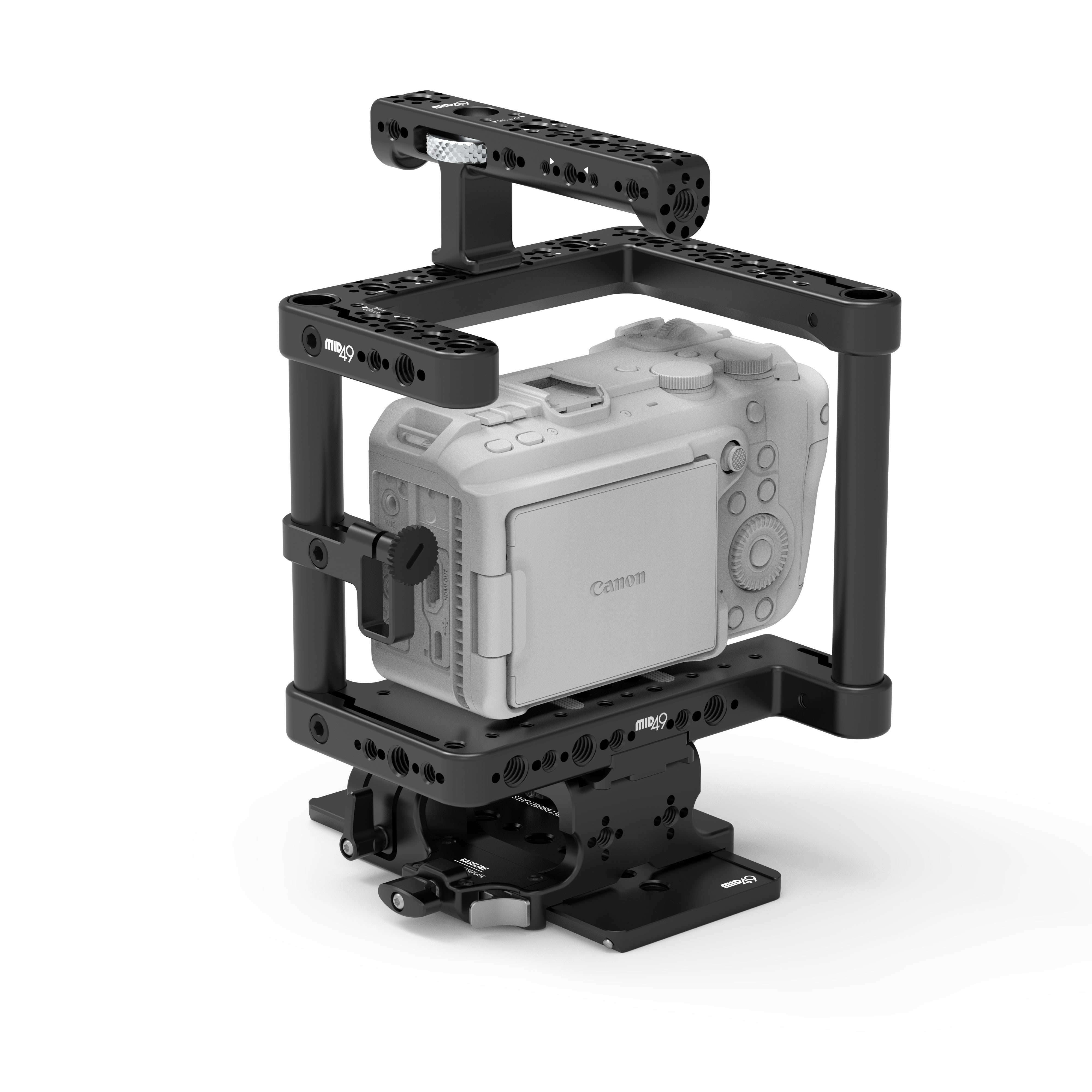

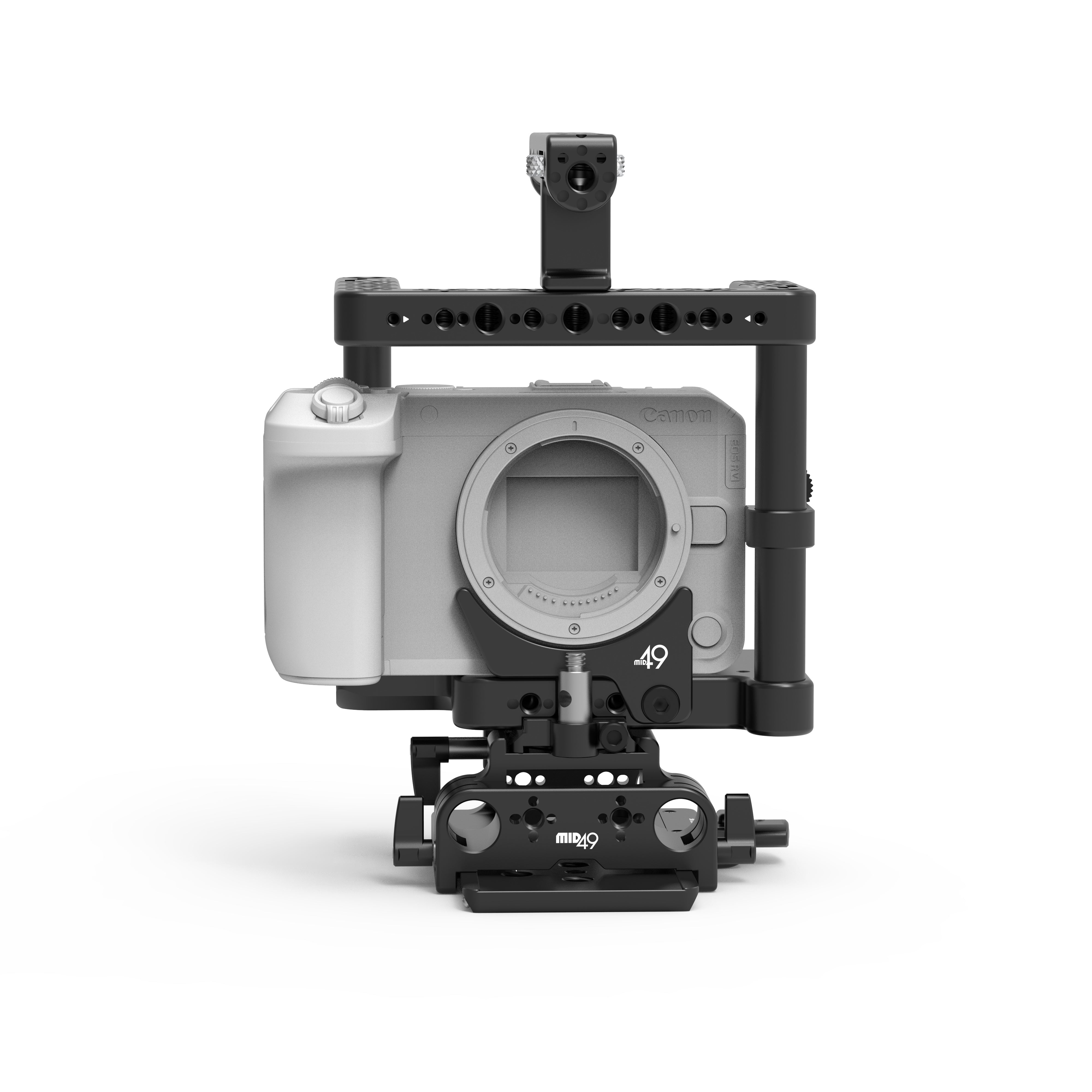

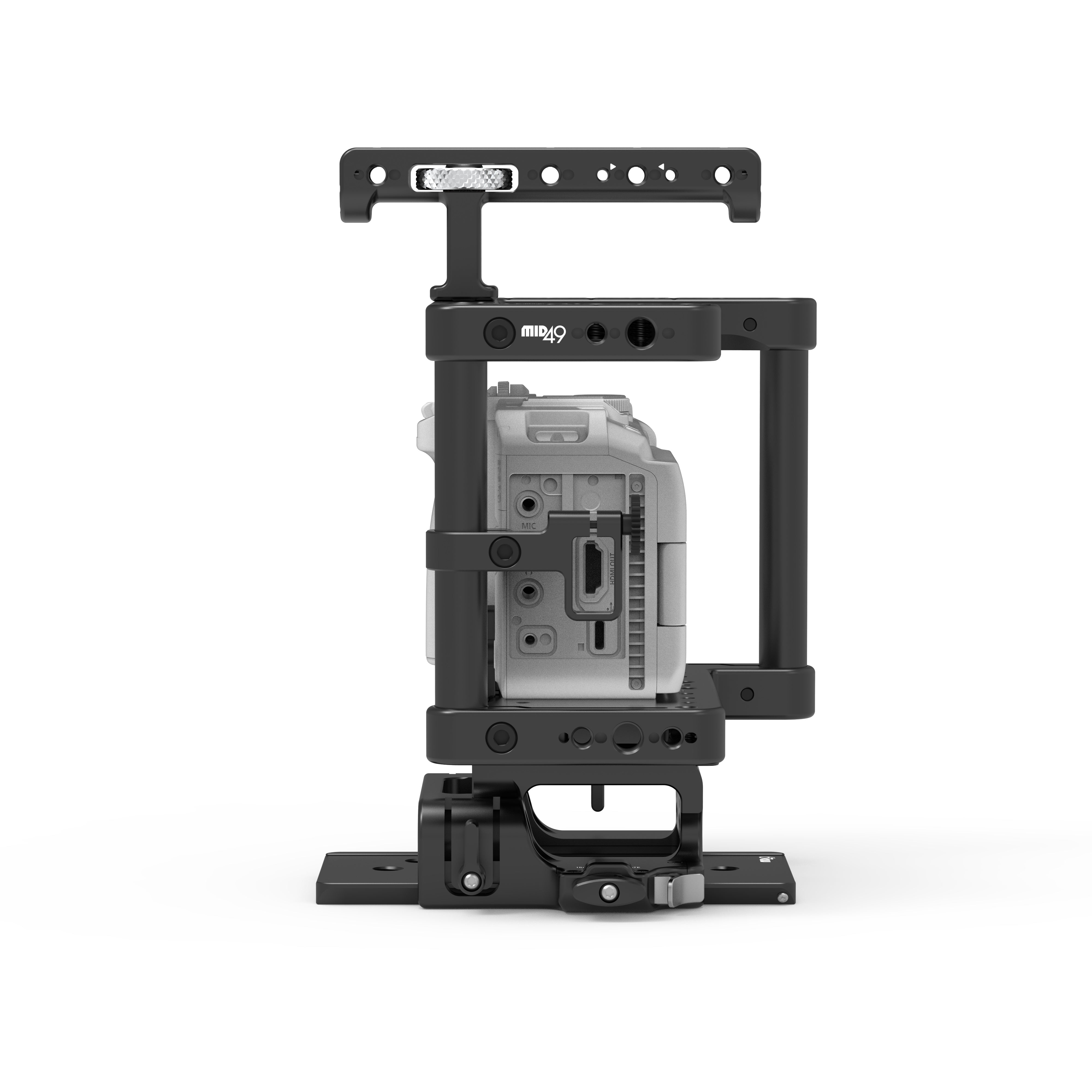

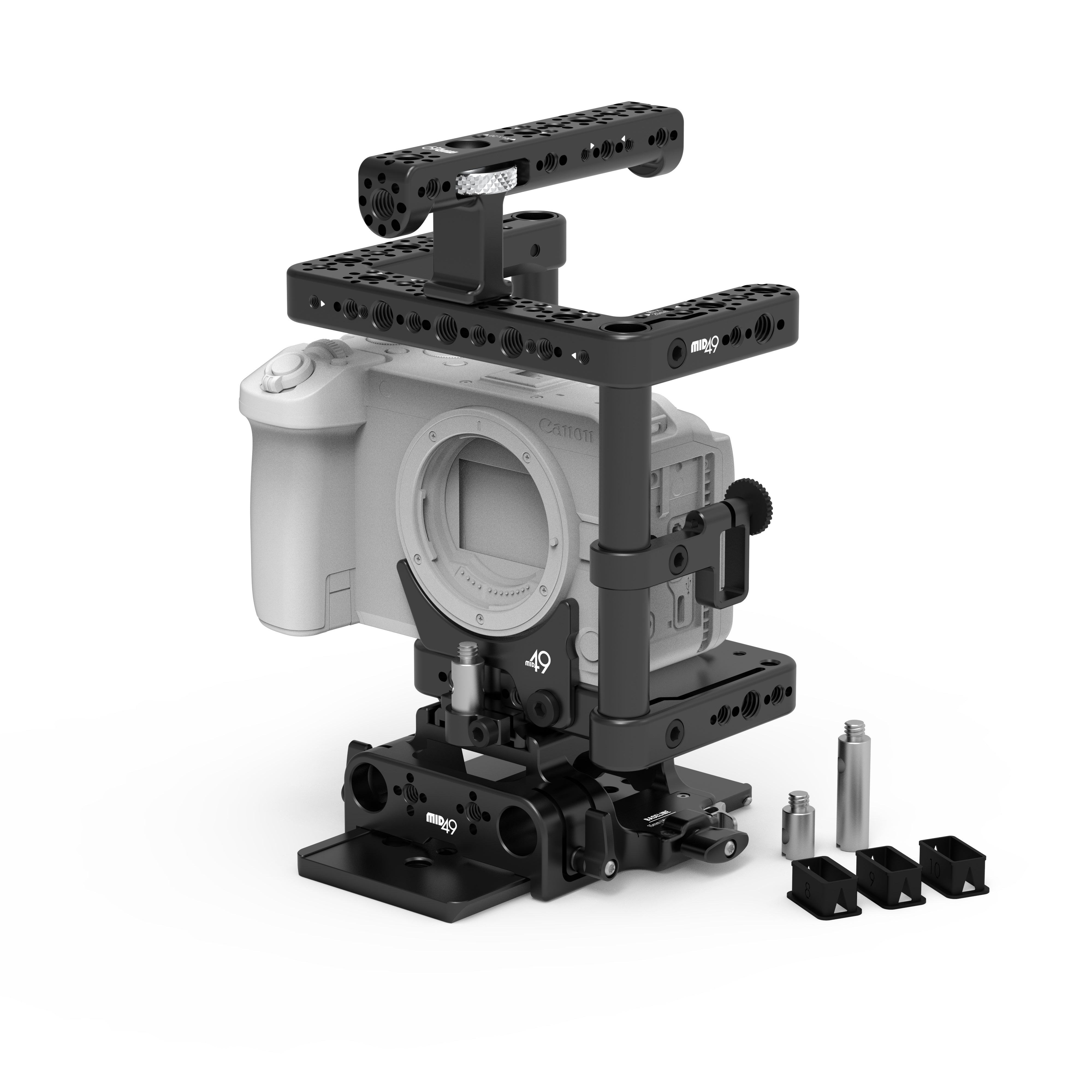

Base Kit for Canon R6V is an accessory kit that includes:
Form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places. HDMI lock with reduction inserts protects the camera's HDMI port from abuse.
Front camera straightener keeps the R6V from turning under the force of focus motors.
Lower ARCA Swiss dovetail attaches to the included baseplate, and the adjustable lens support adapter with 3 lengths of 1/4-20 support screw attaches to 3rd party lens adapters like Metabones, etc.
Top handle that attaches to a 1/4-20 hole with 3mm locating pin holes spaced 10.4mm center-to-center (ARRI standard).
Locating pins can be removed if alternative mounting is required. Threaded holes are also available at 15mm spacing, which is not standard but is found on some 3rd party cages.
1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes for accessory mounting are available in several places.
Baseline 15mm LW (Upper Cage Canon C50, R6V)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Product Weight: 29.2oz (830g
