Description

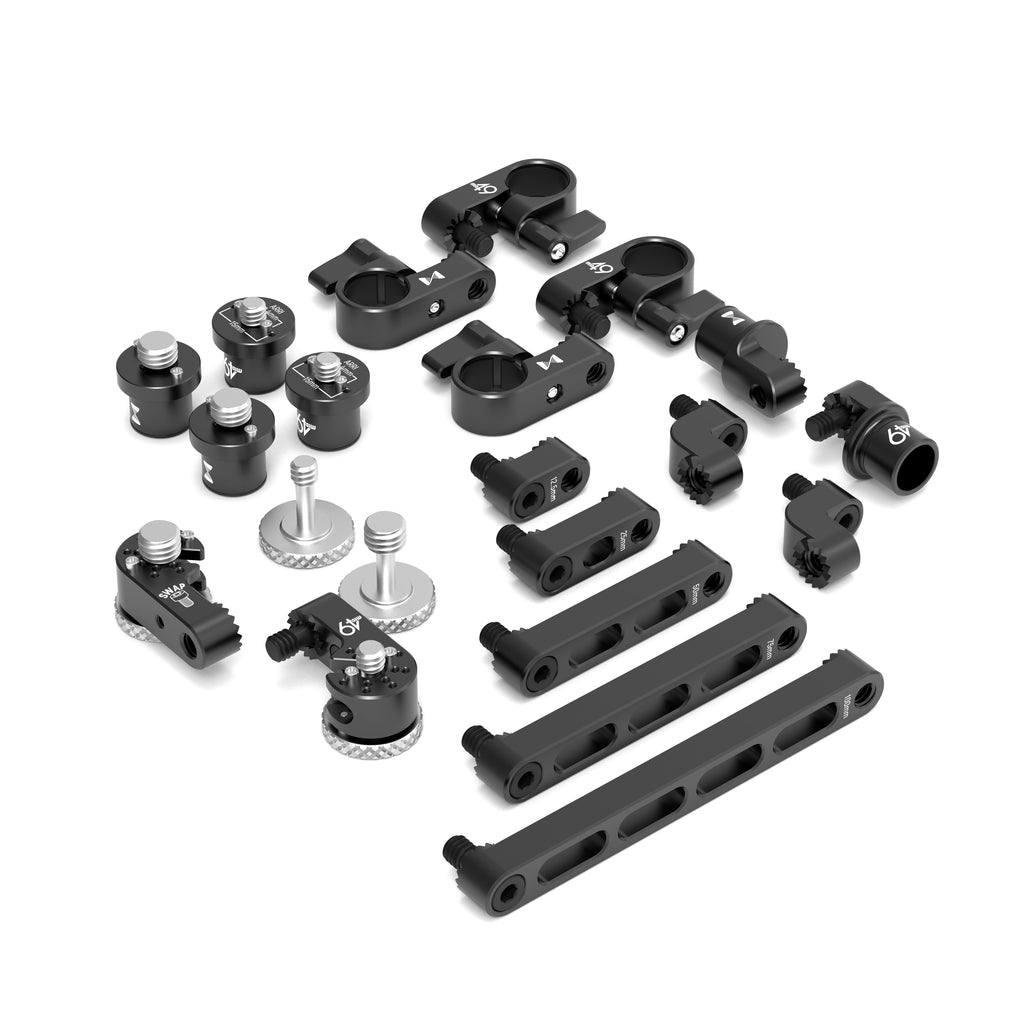

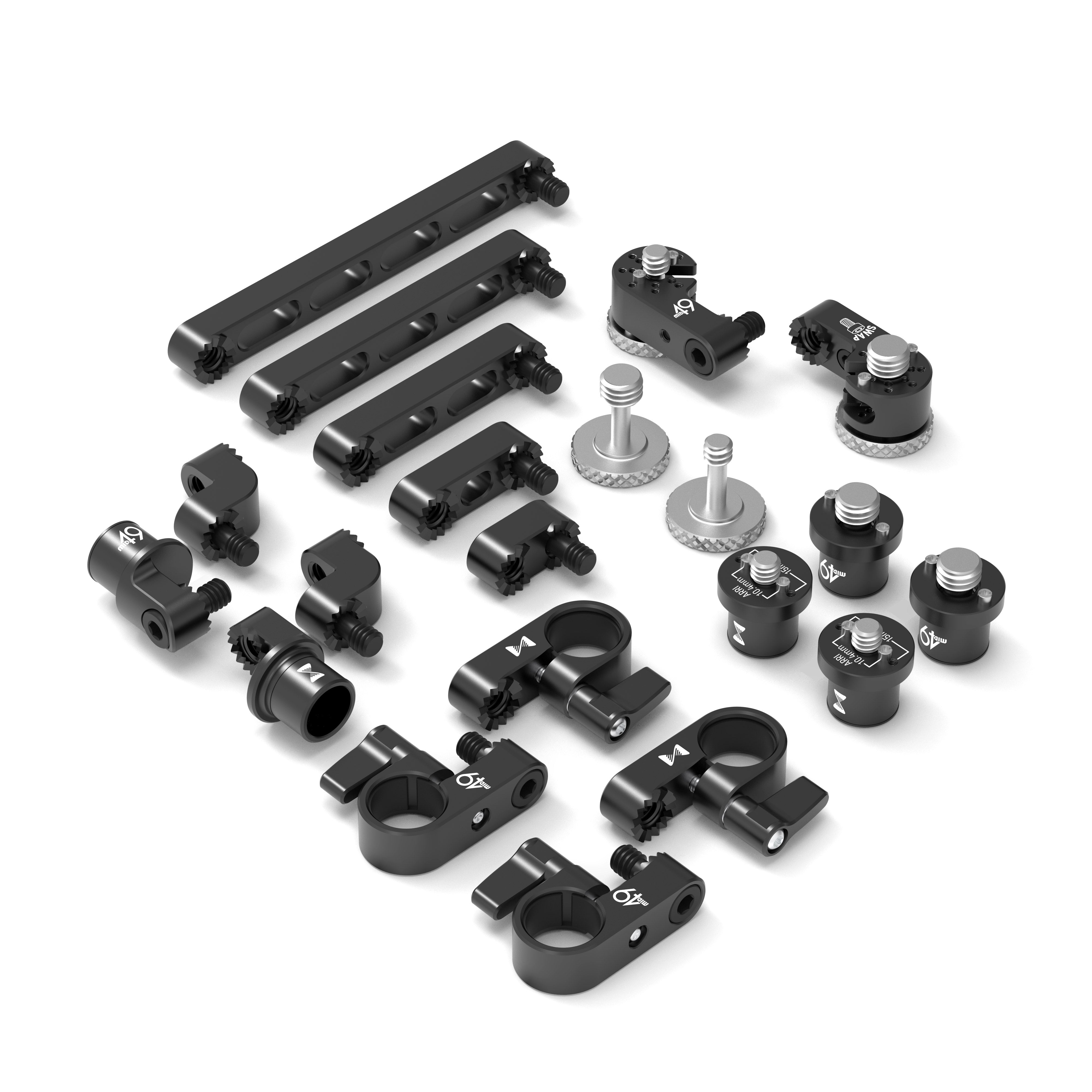

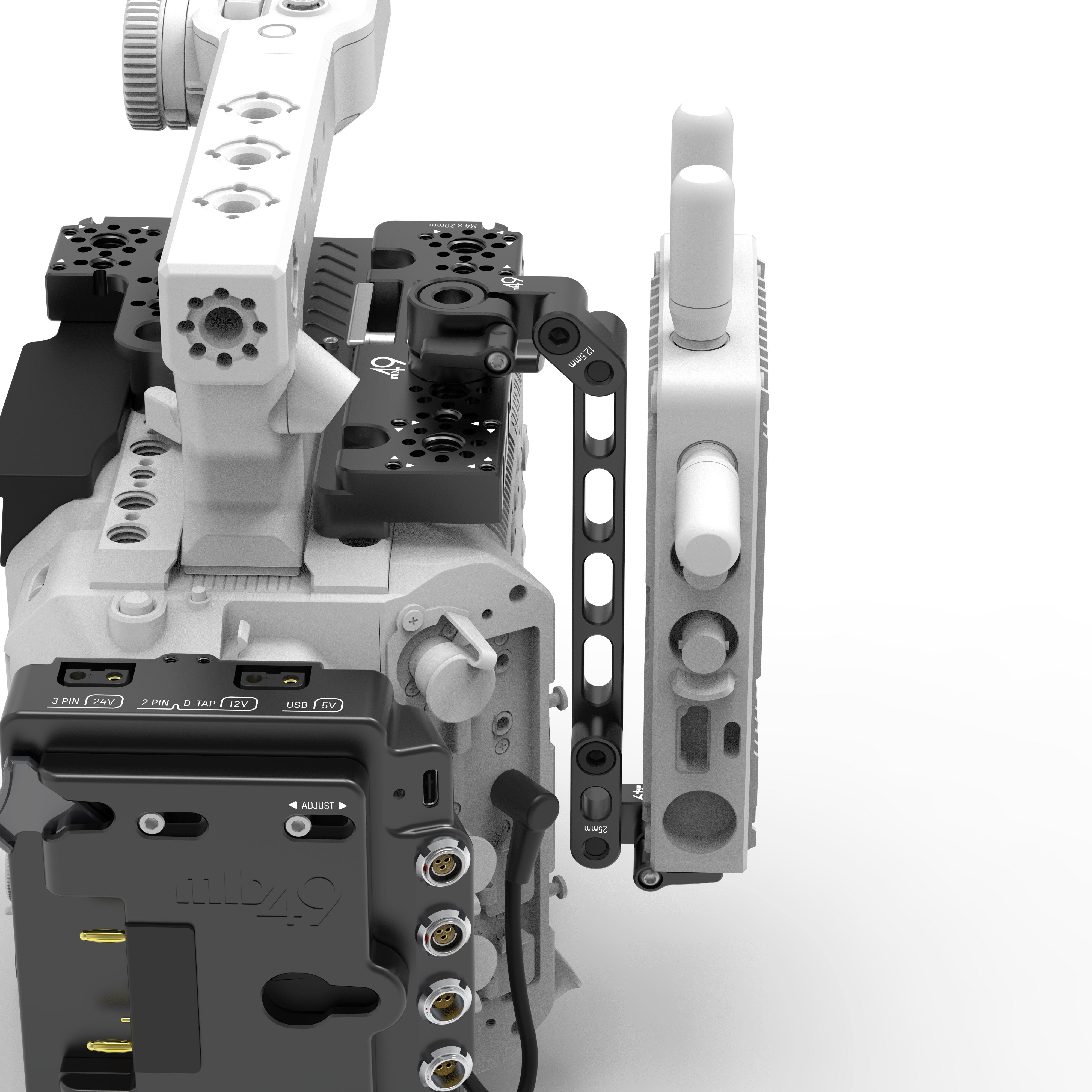

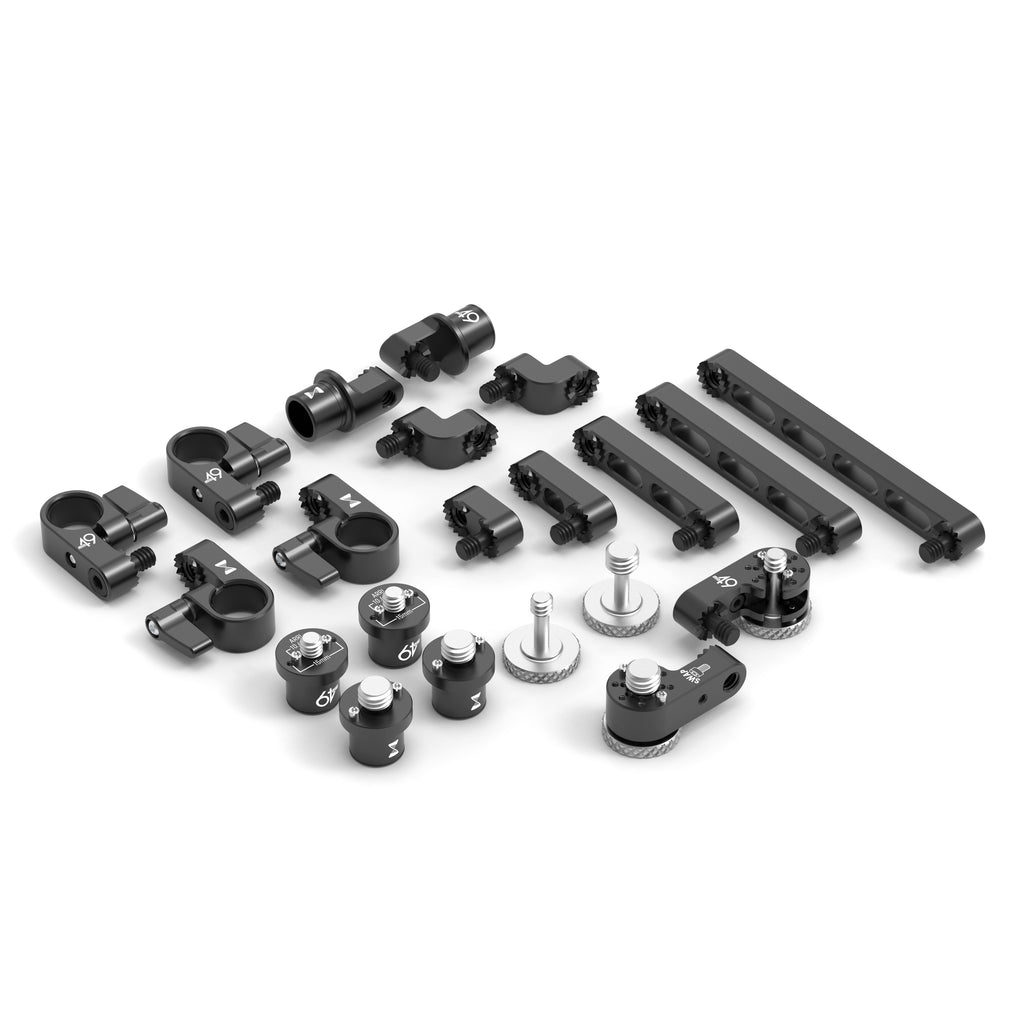

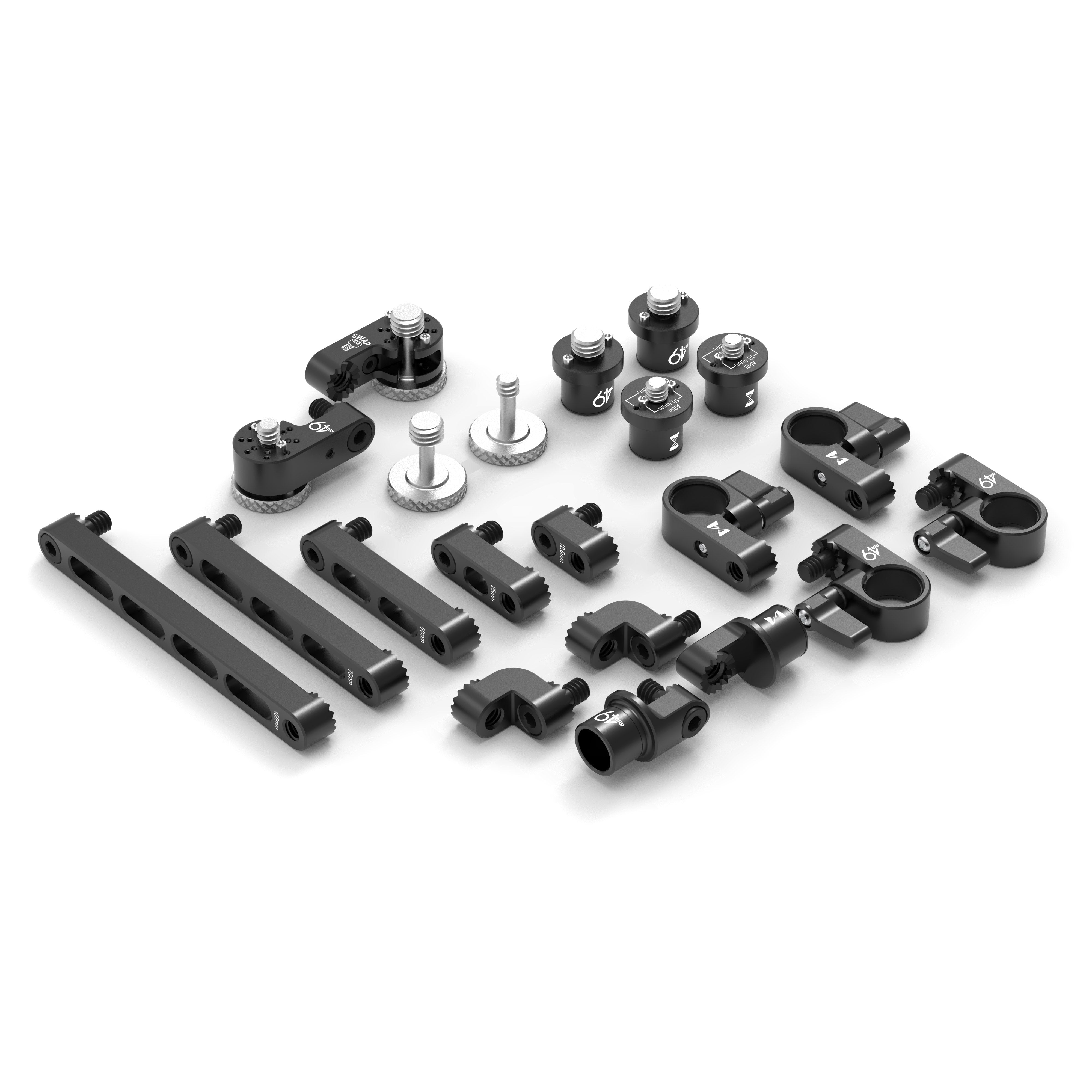

Micro Rosette Complete Kit is a modular accessory mounting arm that includes both quick-release 1/4-20 and 3/8-16 spuds on each end, as well as SWAP Bolt screw down ends, allowing attachment of a wireless transmitter, monitor, audio receiver, and more to a camera.

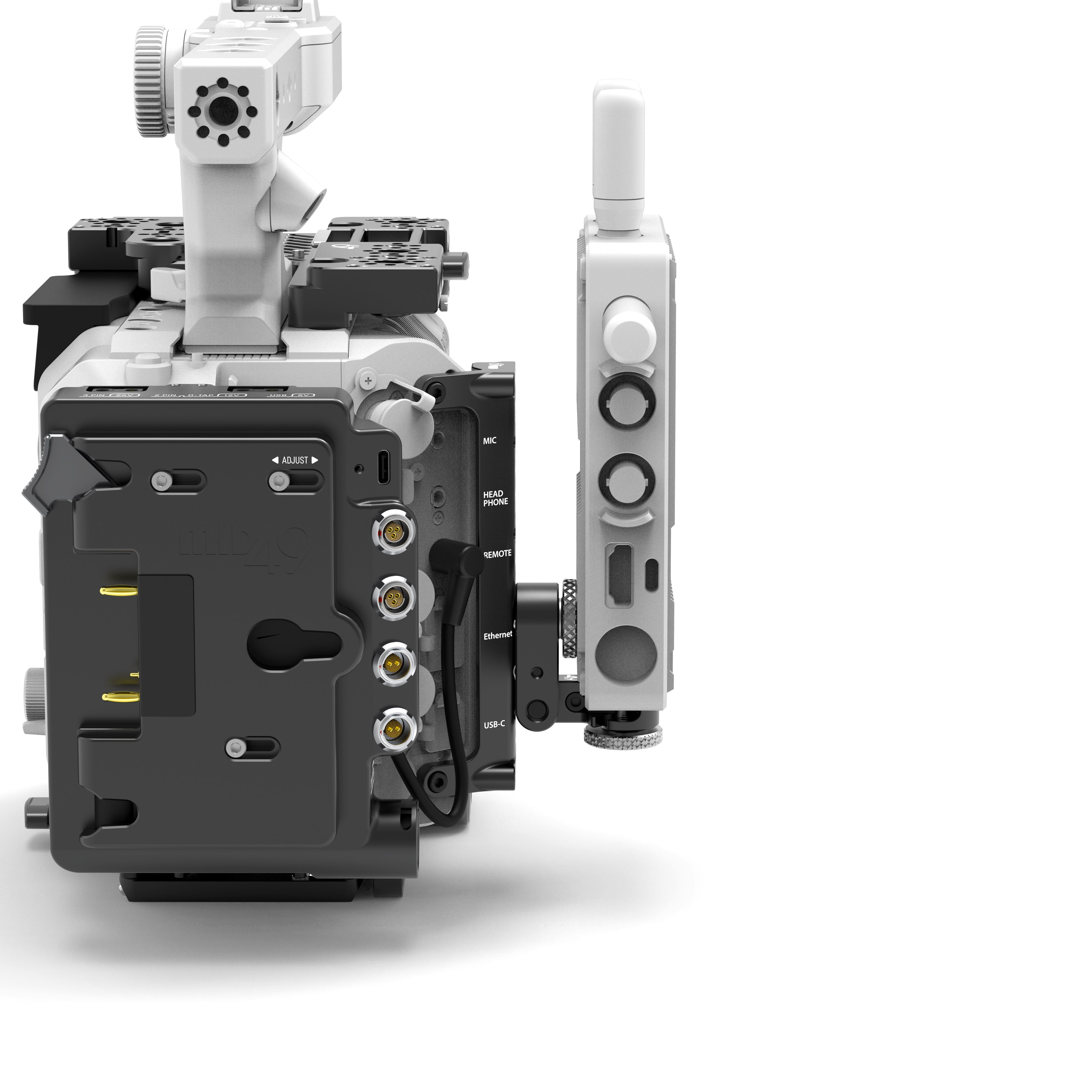

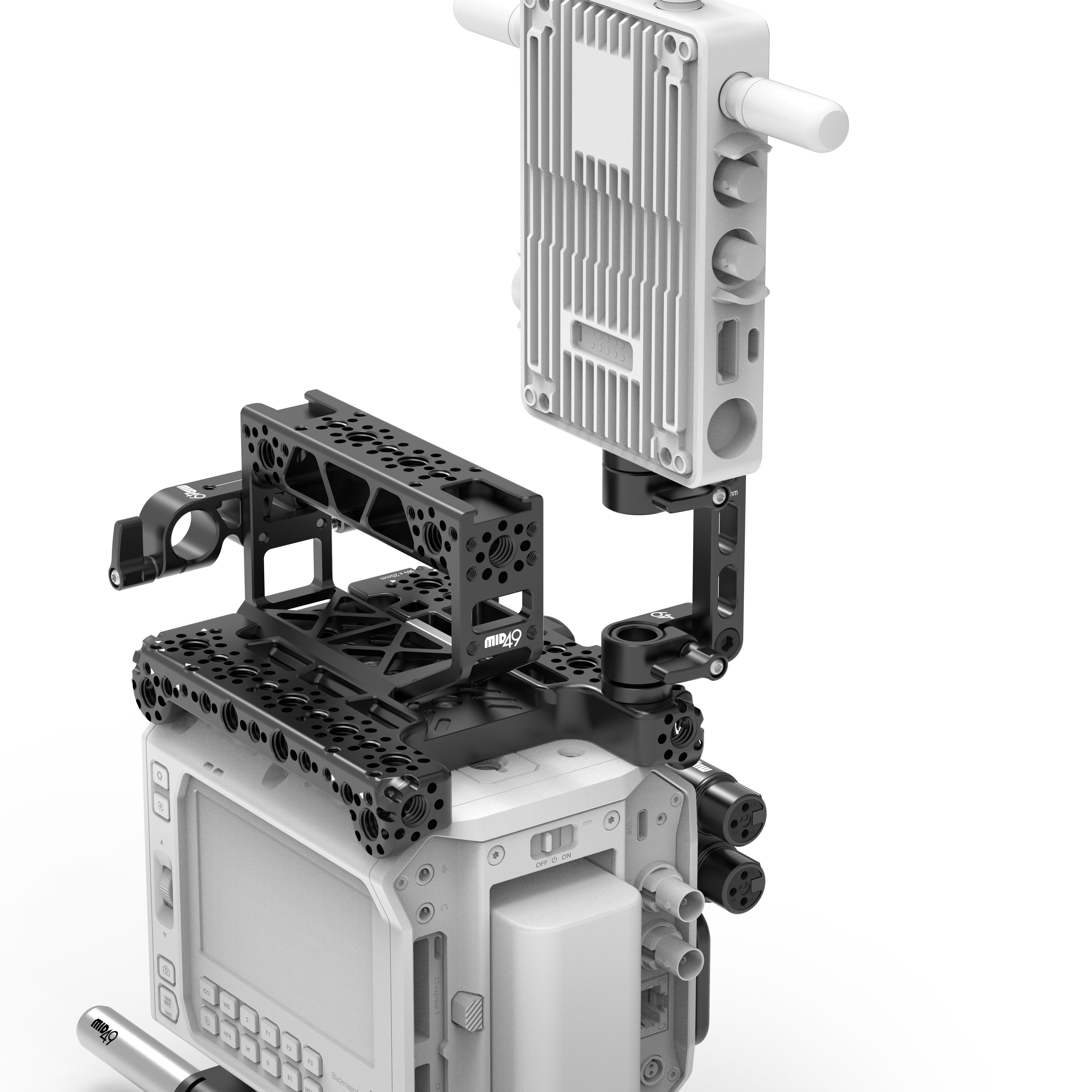

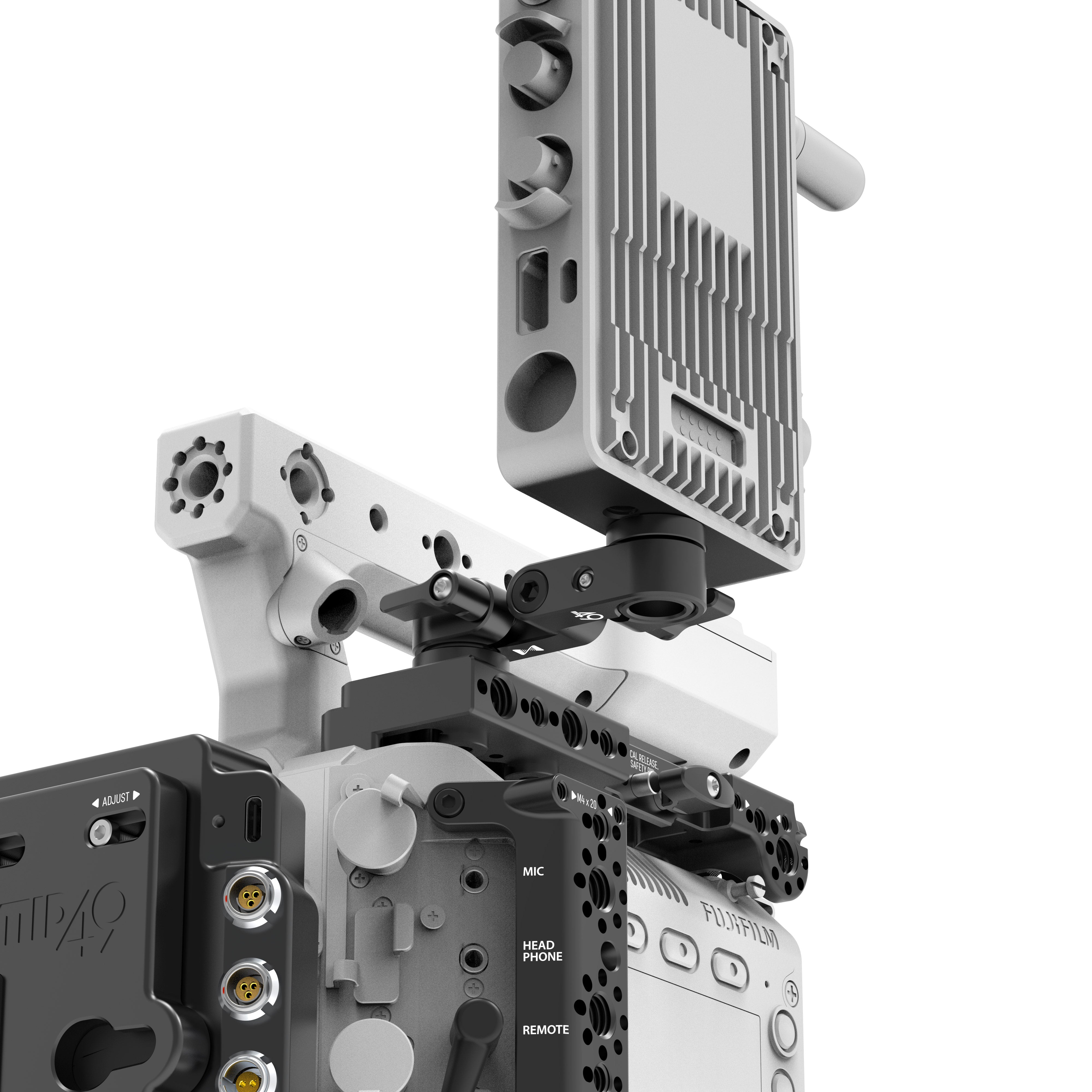

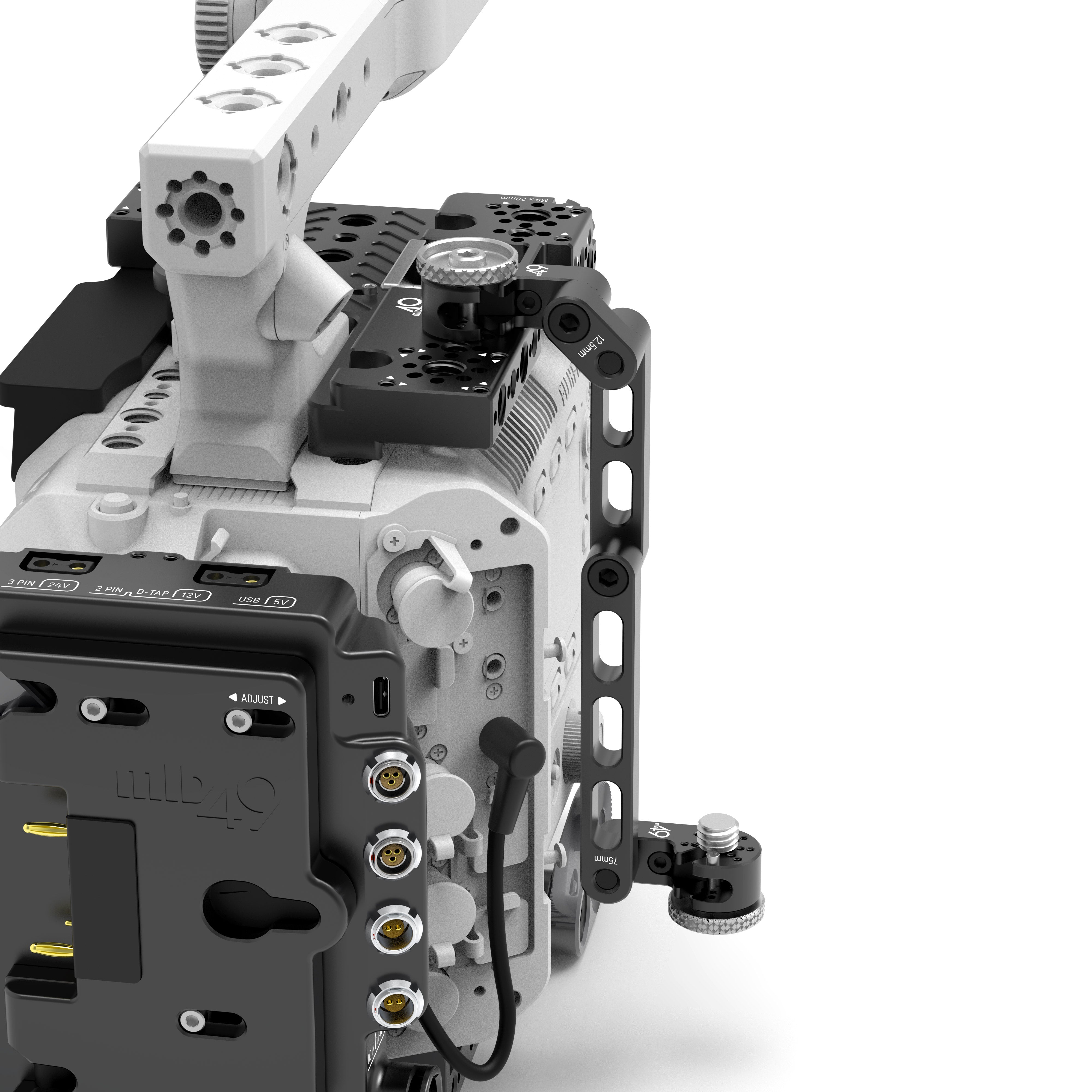

Install the bottom TWIST Spud or SWAP Bolt on your camera or cheeseplate and another on your monitor or accessory, then link them together with a Micro Rosette Arm.
TWIST Mount
Micro Rosette to TWIST Mount clamps have a variable friction design, so you can grab and twist the arm or accessory without loosening a thumbscrew.
Included ARRI 1/4-20 Spuds have removable 3mm locating pins in ARRI standard 10.4mm spacing. Pins can also be installed with 15mm spacing, which is found on some 3rd party products.
The 3/8-16 Spuds have removable 3mm locating pins in ARRI standard 15mm spacing.
SWAP Bolt
The included Micro Rosette to SWAP Bolt ends let you switch between 1/4-20 and 3/8-16 with multiple 3mm locating pin placement options. You can also swap the direction of the screw from top to bottom.
Extensions
Extension arms have serrated teeth to allow for angled configurations in increments of 22.5º, a captive 1/4-20, and lengths of 12.5mm, 25mm, 50mm, 75mm, and 100mm.
Monitor Hinge
Two 90º bend pieces are also included for off-axis configurations, and Micro Rosette to TWIST Spuds are included to build a Micro Rosette Monitor TWIST Hinge Kit.

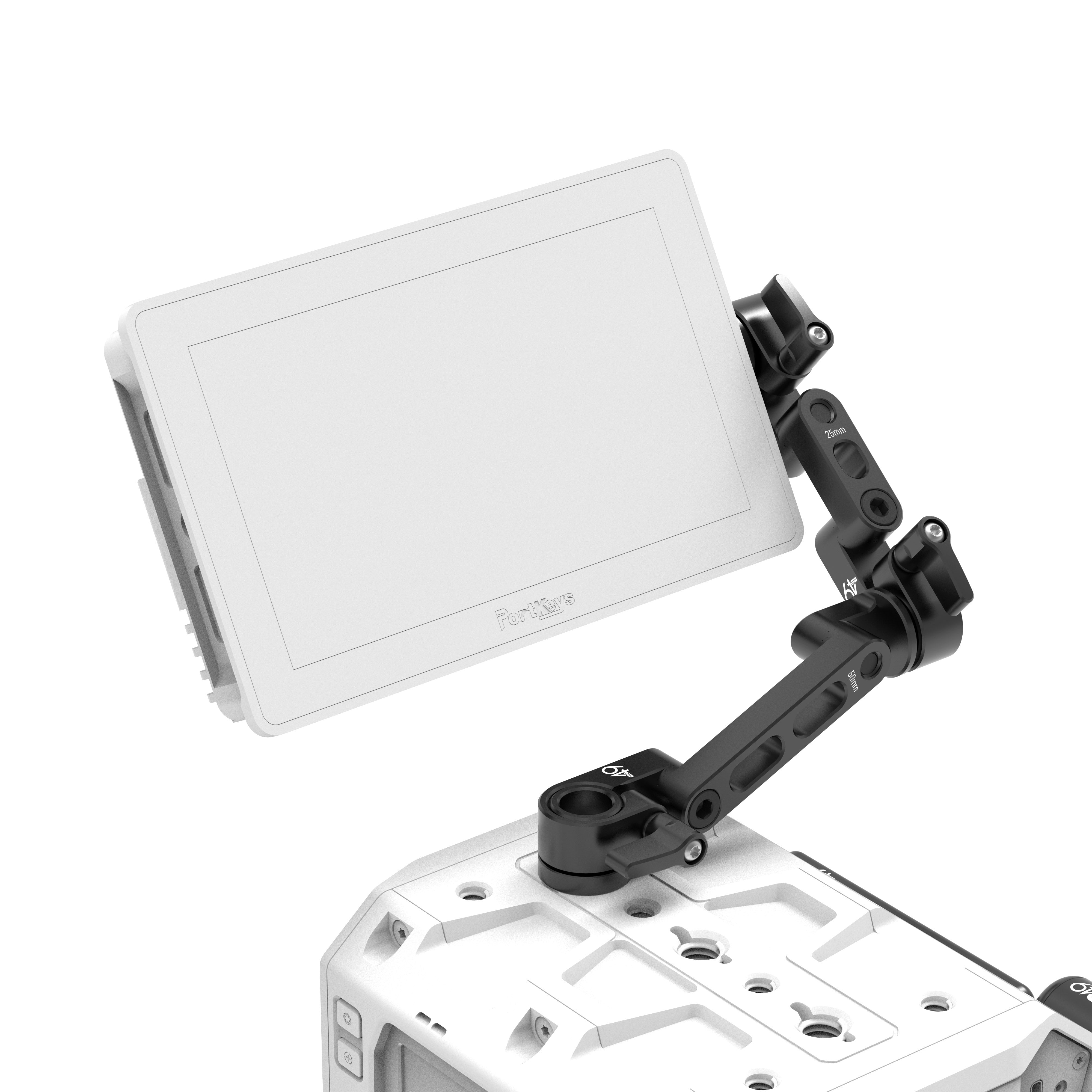

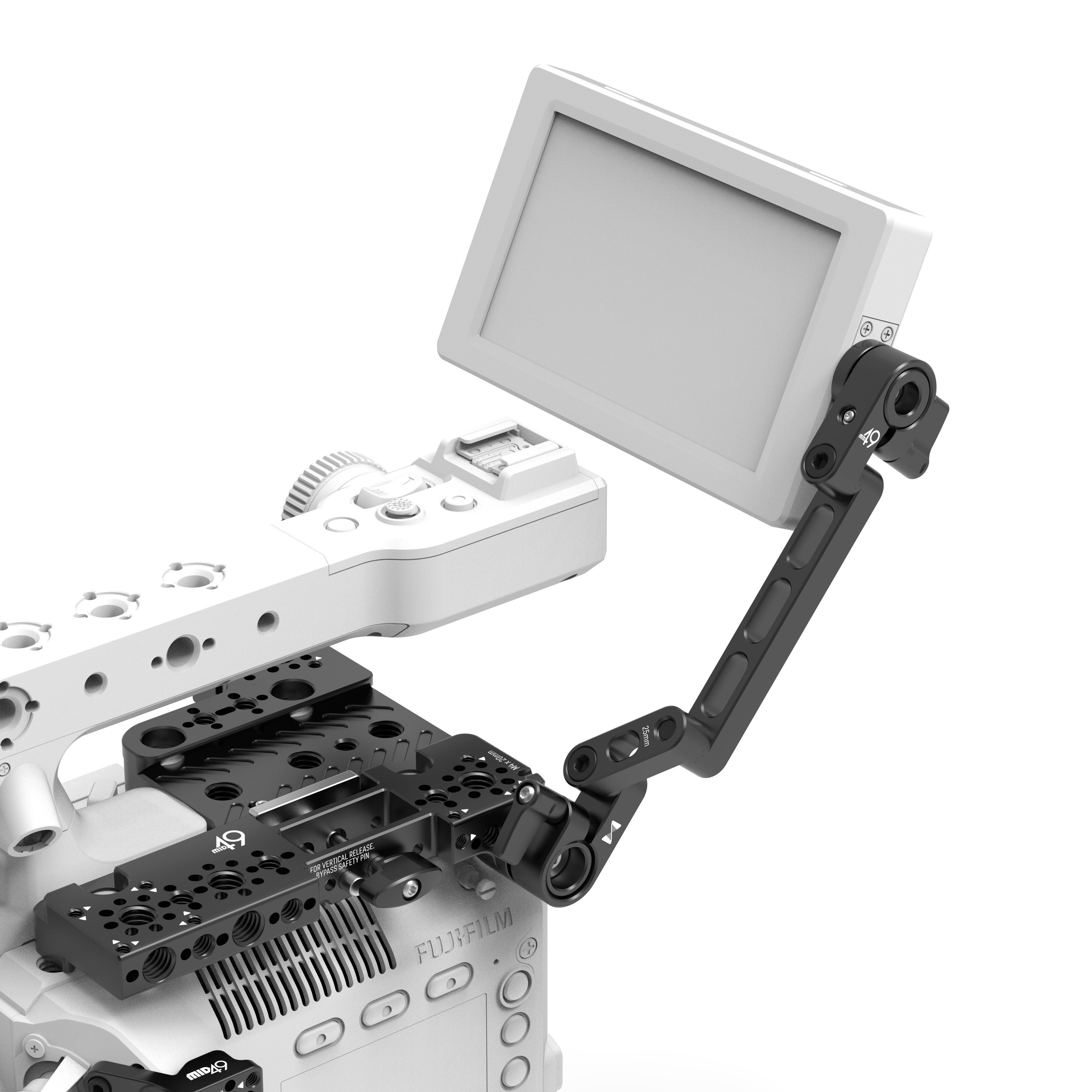

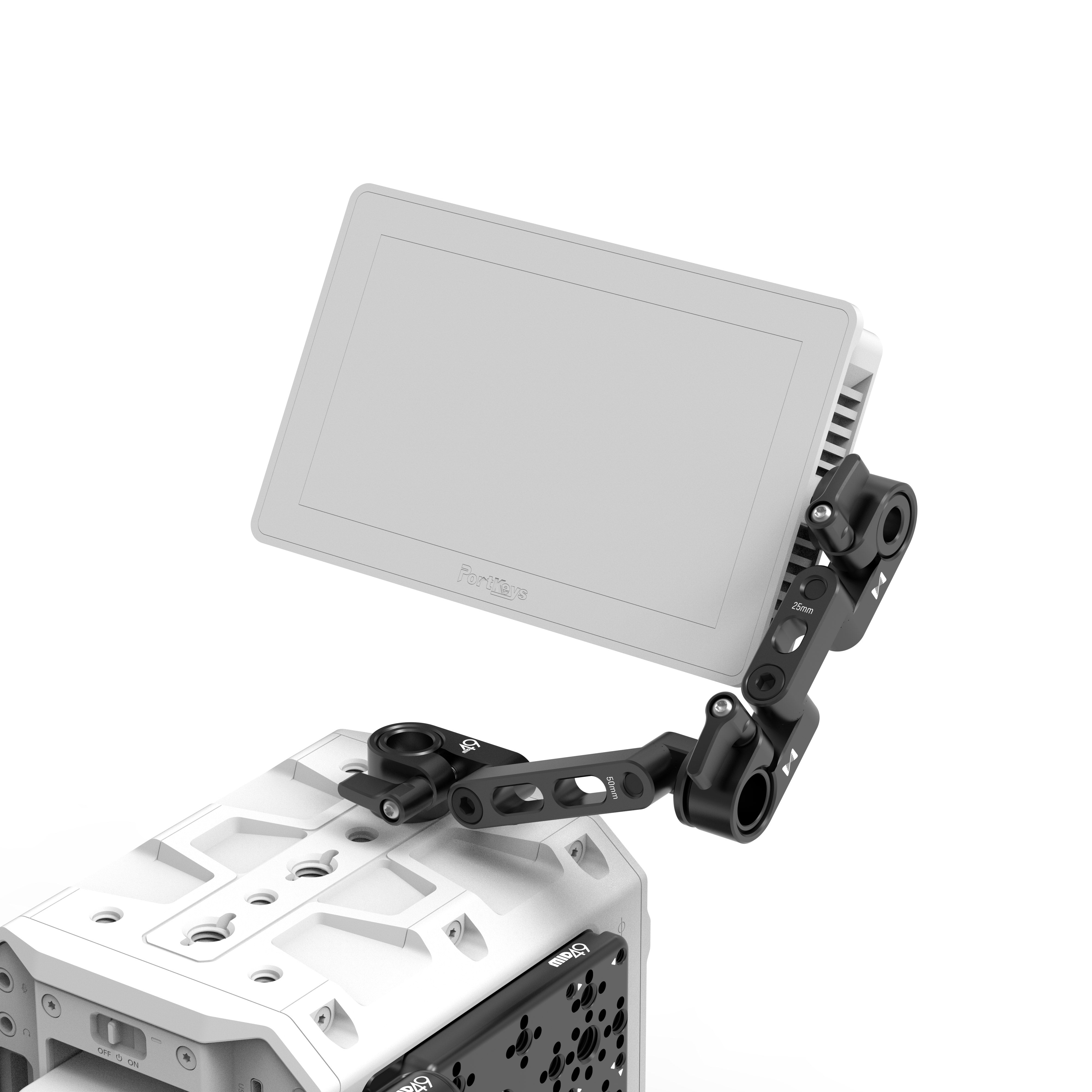

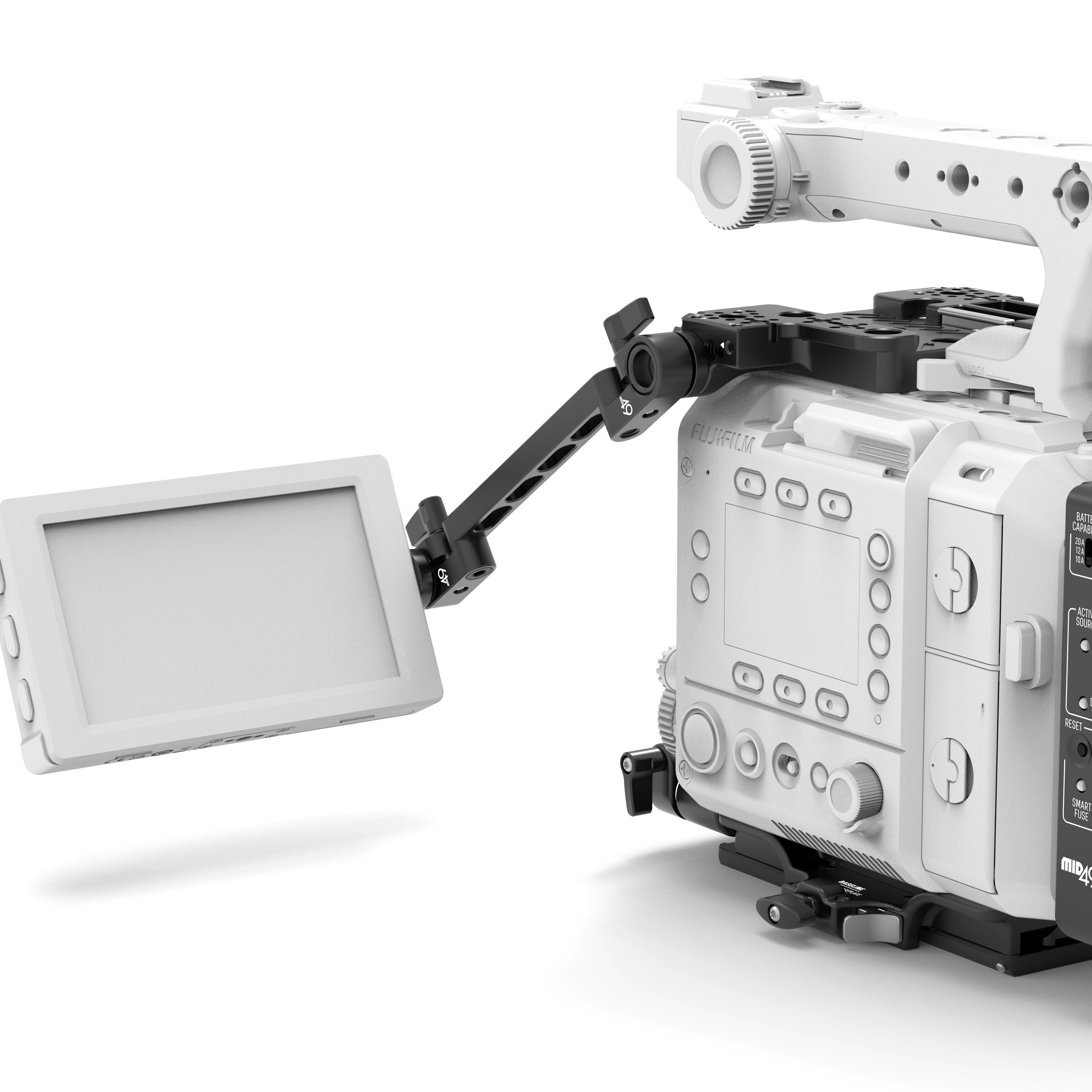

The Monitor Hinge configuration allows pan, tilt, and folding action of a 5-inch to 7-inch monitor on a camera.
To customize a TWIST Kit with different spud ends, consider:
