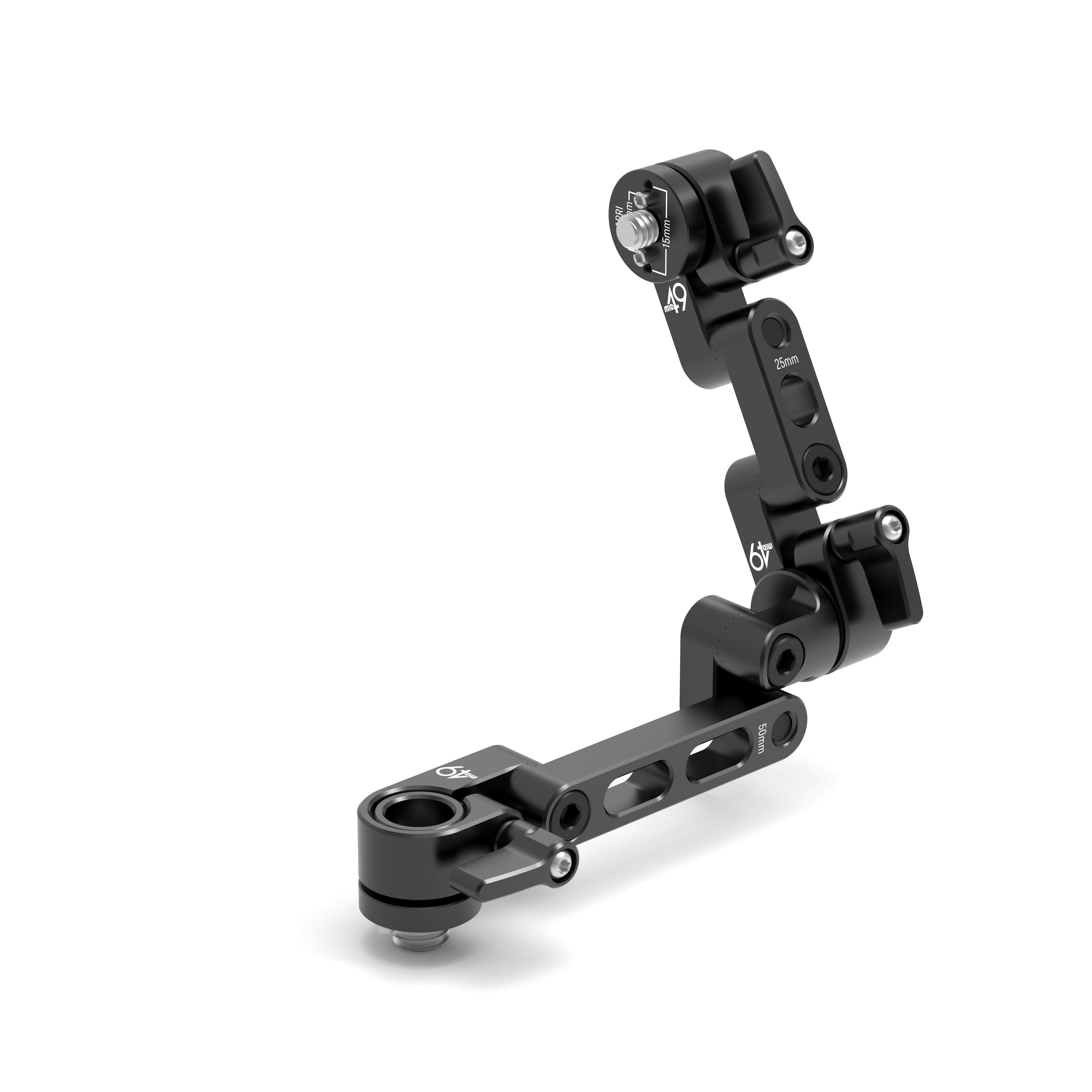

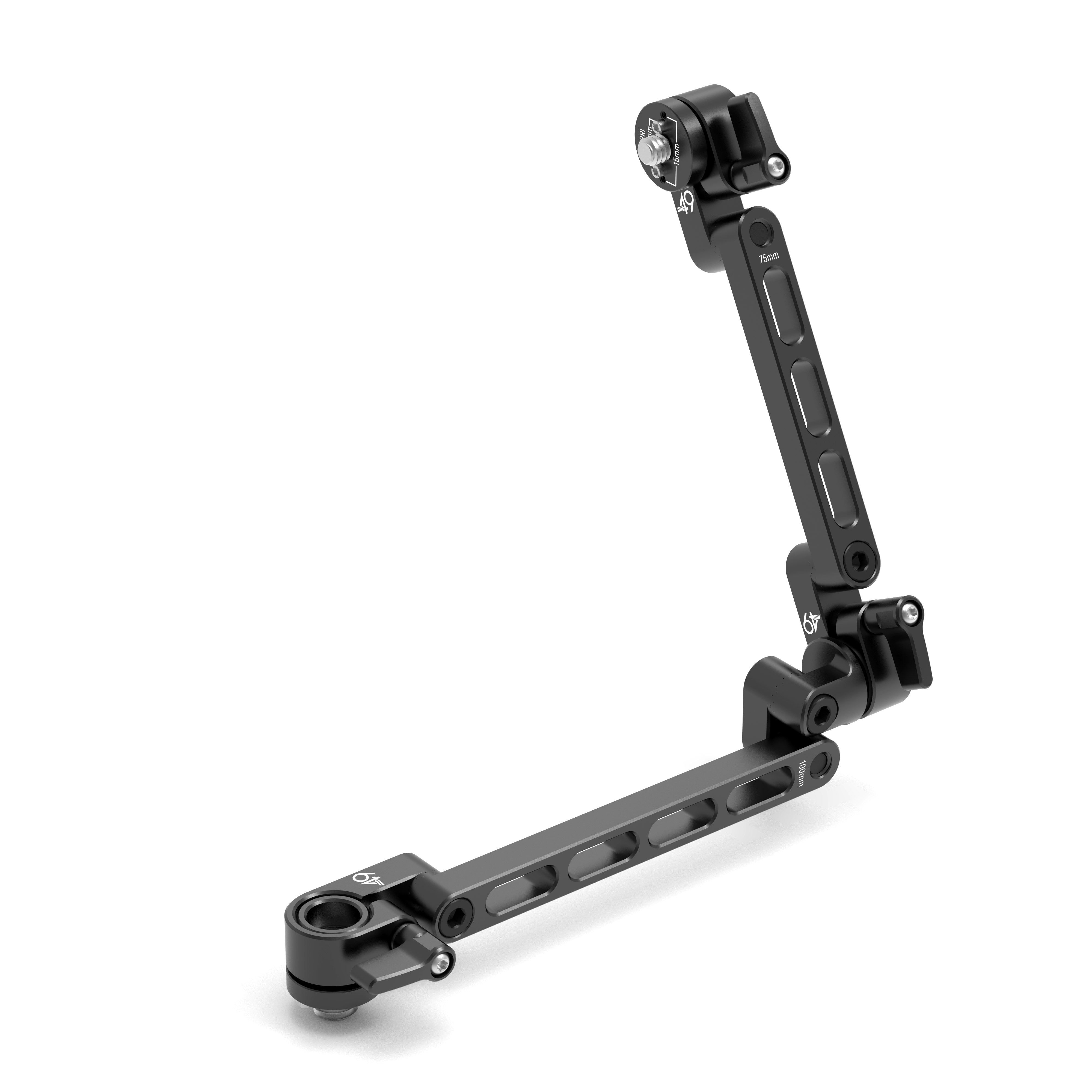

The Micro Rosette Monitor TWIST Hinge Kit (1/4-20 to 3/8-16) is a modular monitor hinge with quick-release 1/4-20 spuds on each end, allowing pan, tilt, and folding action on a camera.
Great for 5-inch to 7-inch monitors with mounting holes on the side.

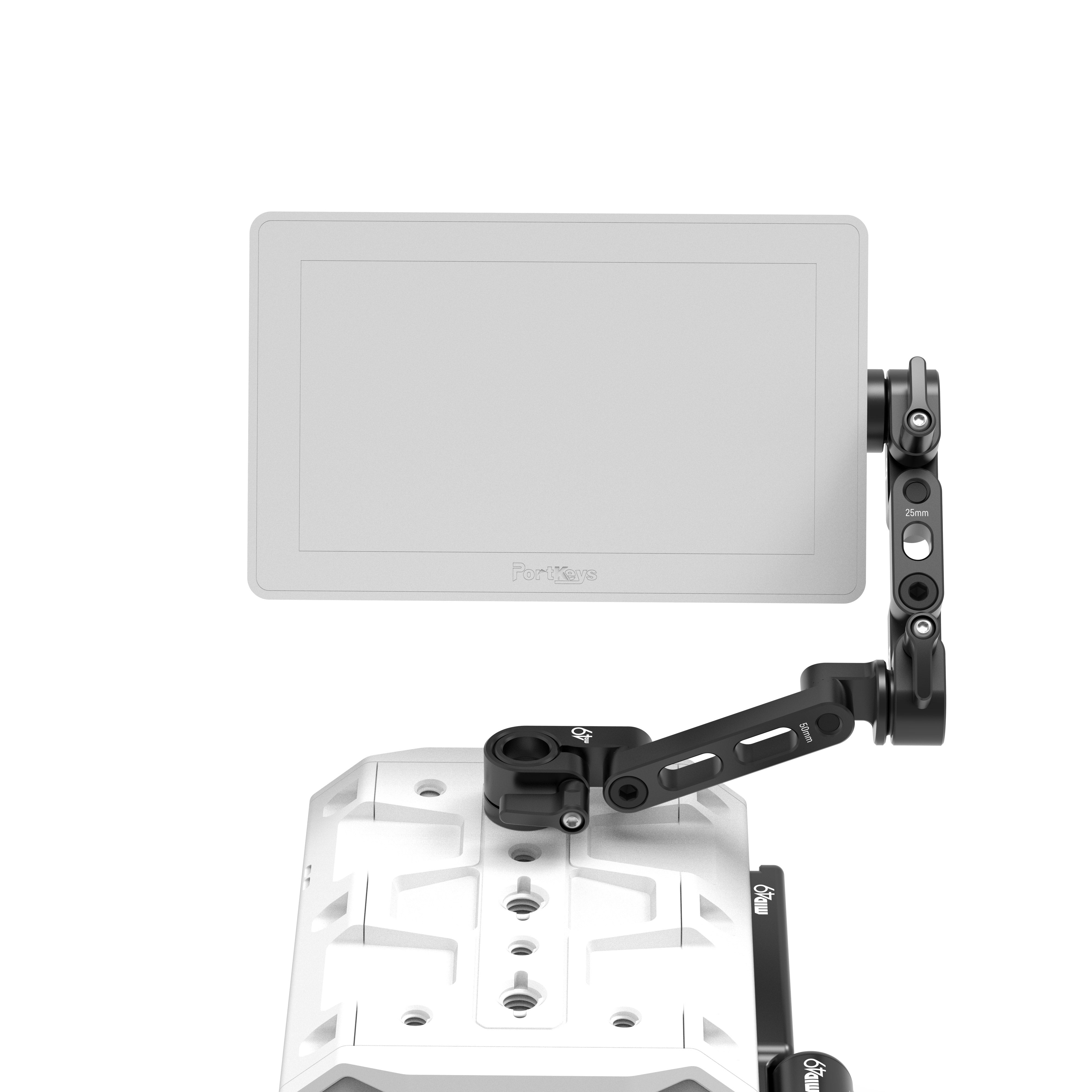

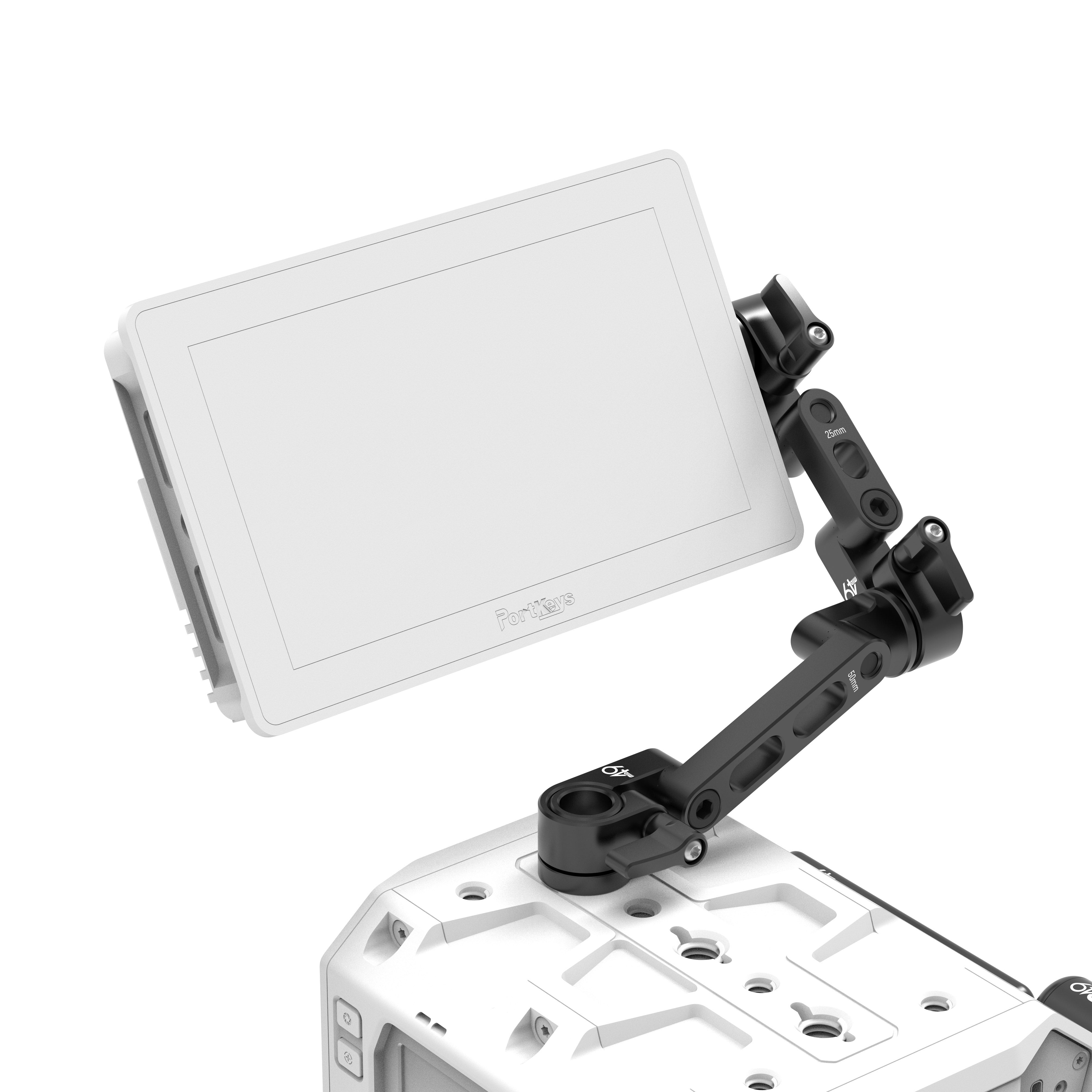

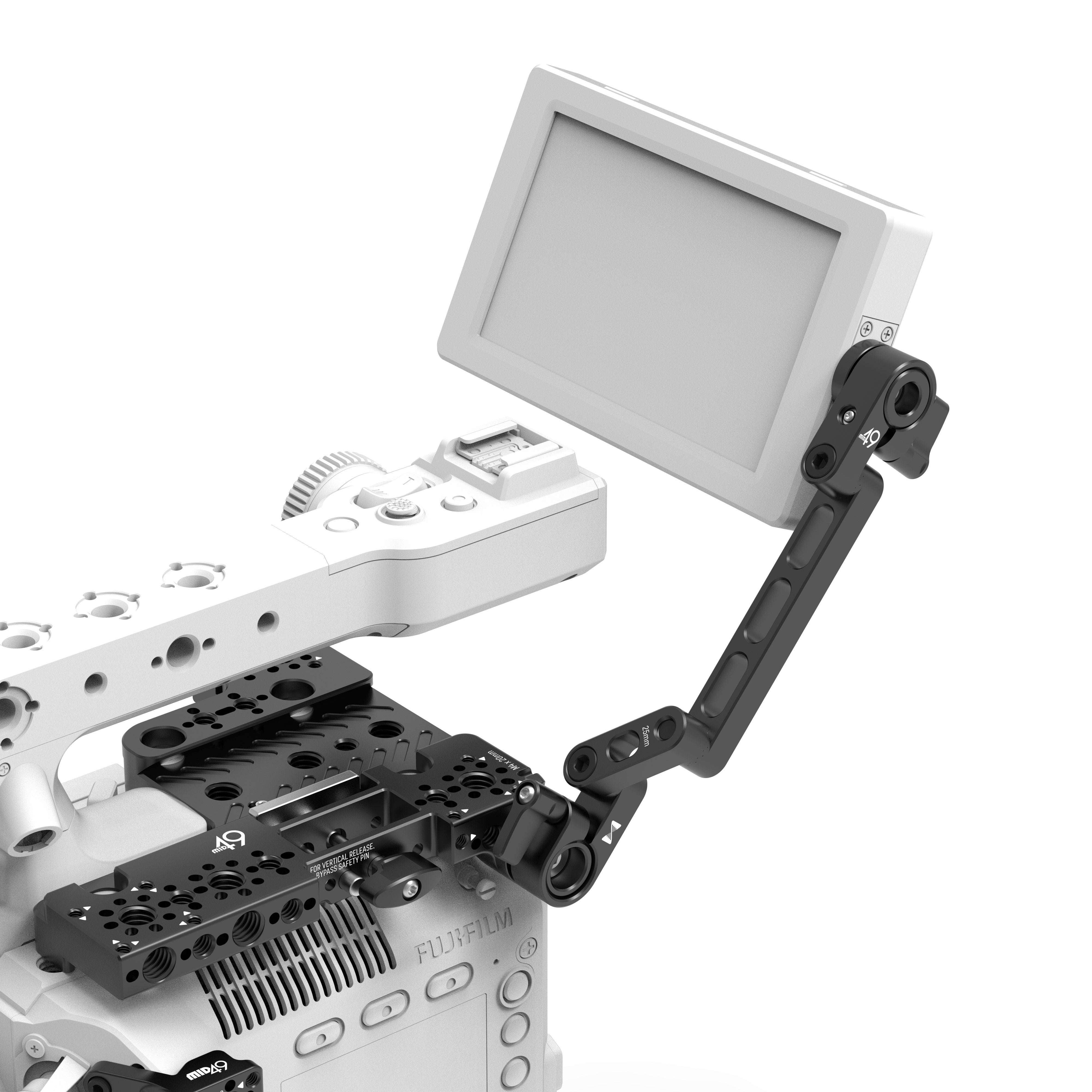

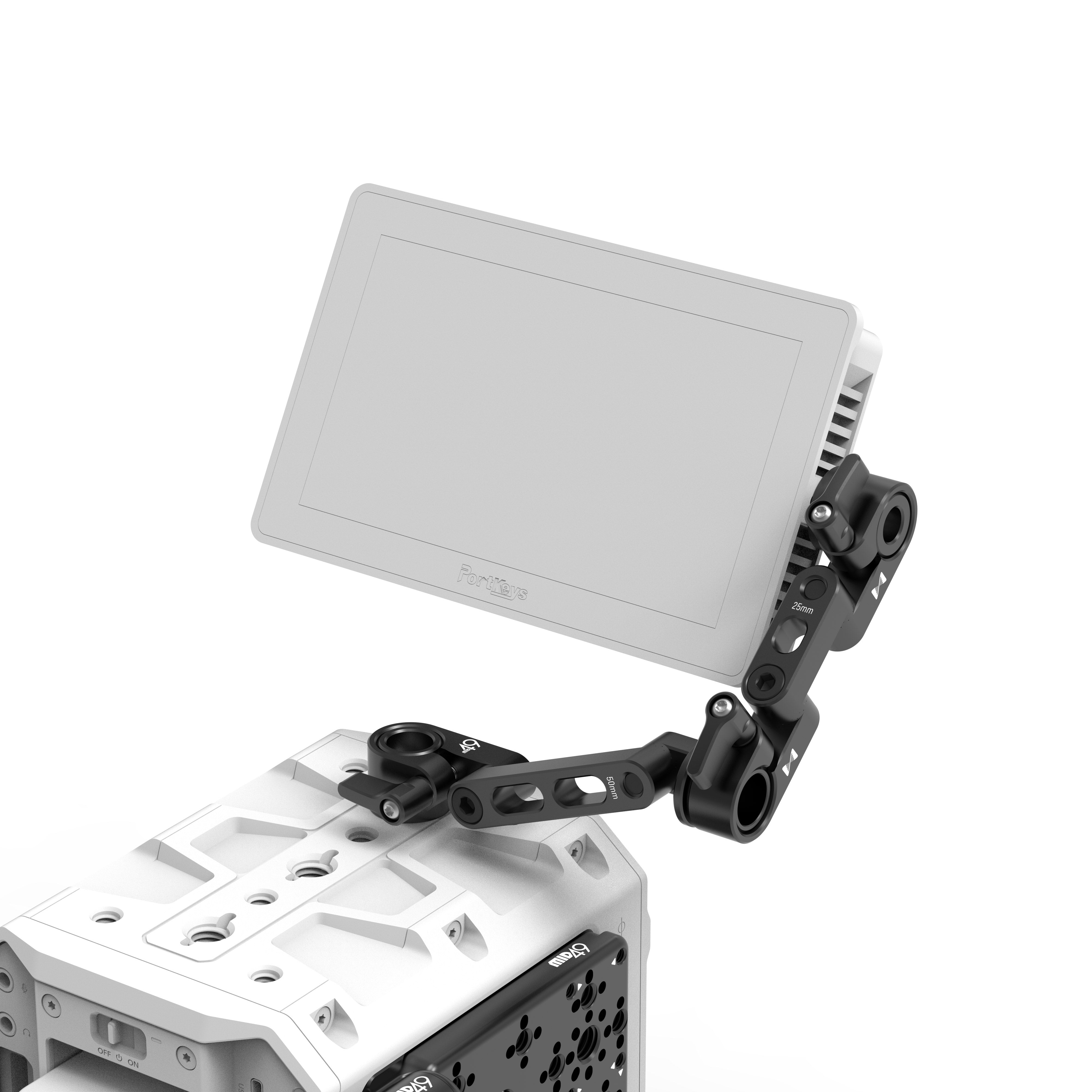

Install the bottom spud on your camera or cheeseplate and the top spud on the side of your monitor, then link them together with appropriate lengths of Micro Rosette Arm.
Micro Rosette to TWIST Mount clamps have a variable friction design, so you can grab and twist the monitor without loosening a thumbscrew.
Included ARRI 1/4-20 Spud has removable 3mm locating pins in ARRI standard 10.4mm spacing. Pins can also be installed with 15mm spacing, which is found on some 3rd party products.
The 3/8-16 Spud has removable 3mm locating pins in ARRI standard 15mm spacing.

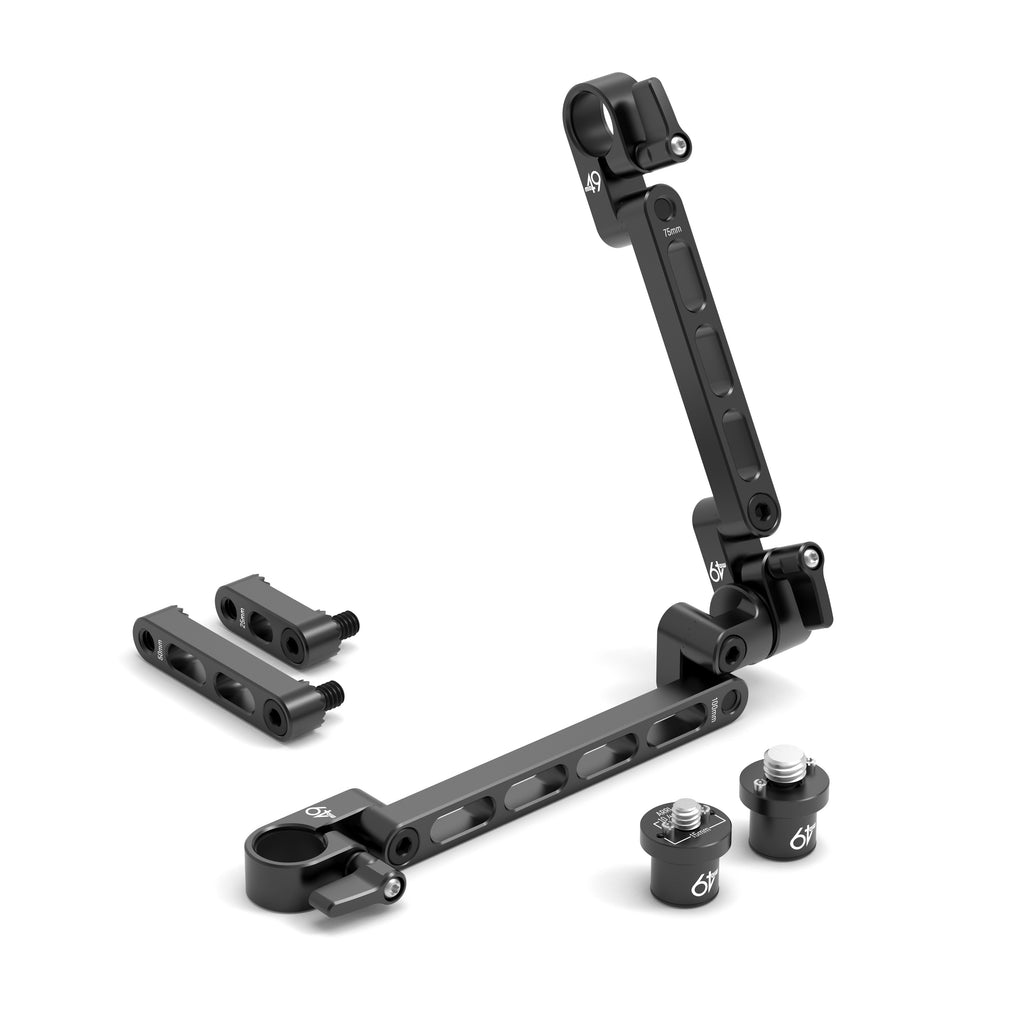

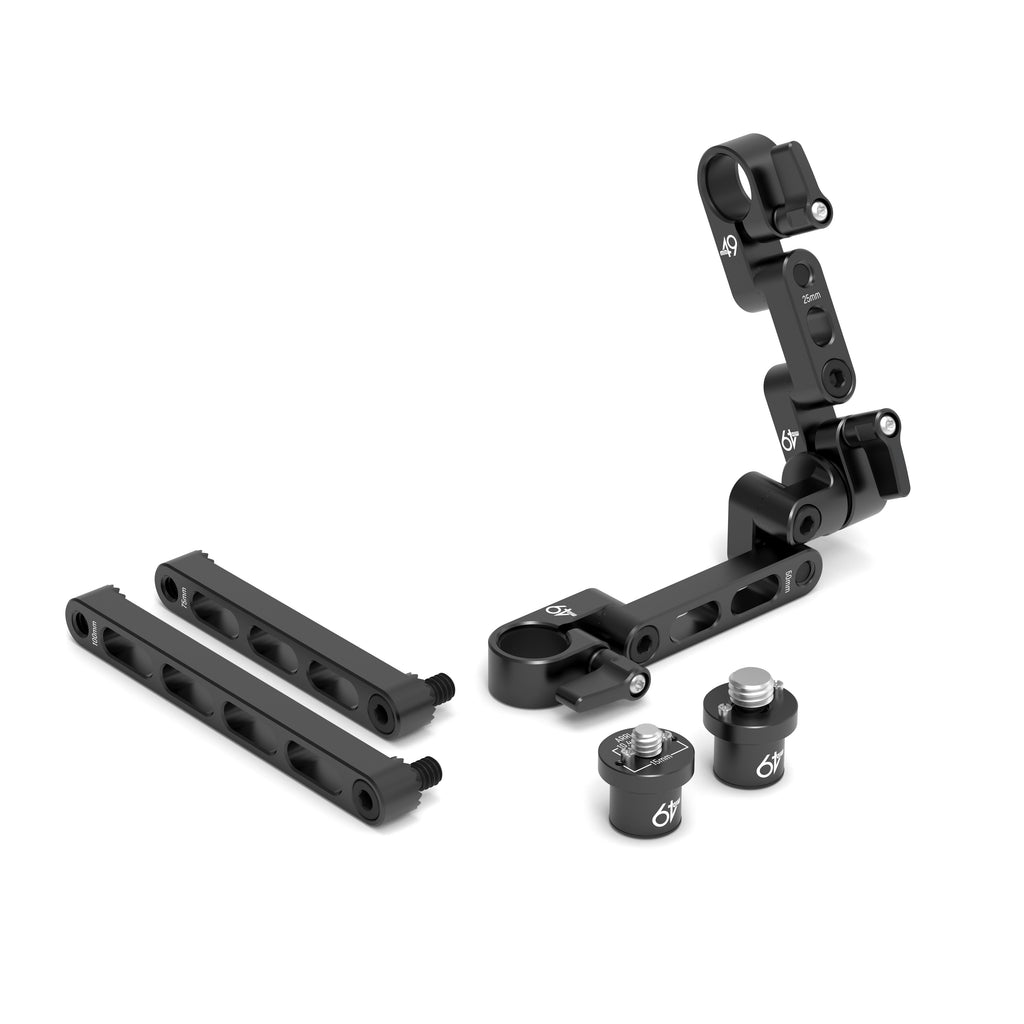

Extension arms have serrated teeth to allow for angled configurations in increments of 22.5º, a captive 1/4-20, and lengths of 12.5mm, 25mm, 50mm, 75mm, and 100mm.

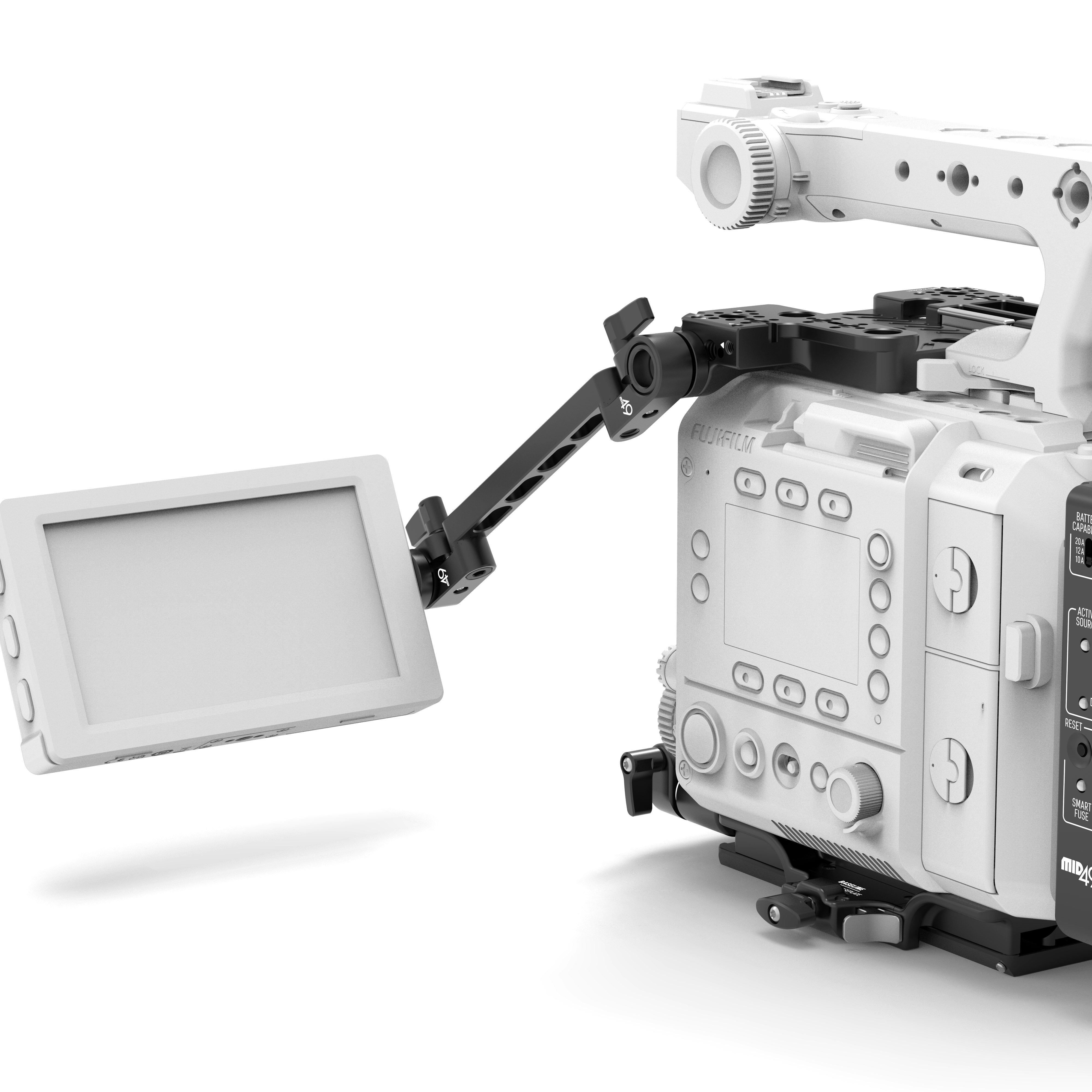

Micro Rosette to TWIST Spud Screw is included in this kit, which allows the monitor to be folded flat during packing.
