Description

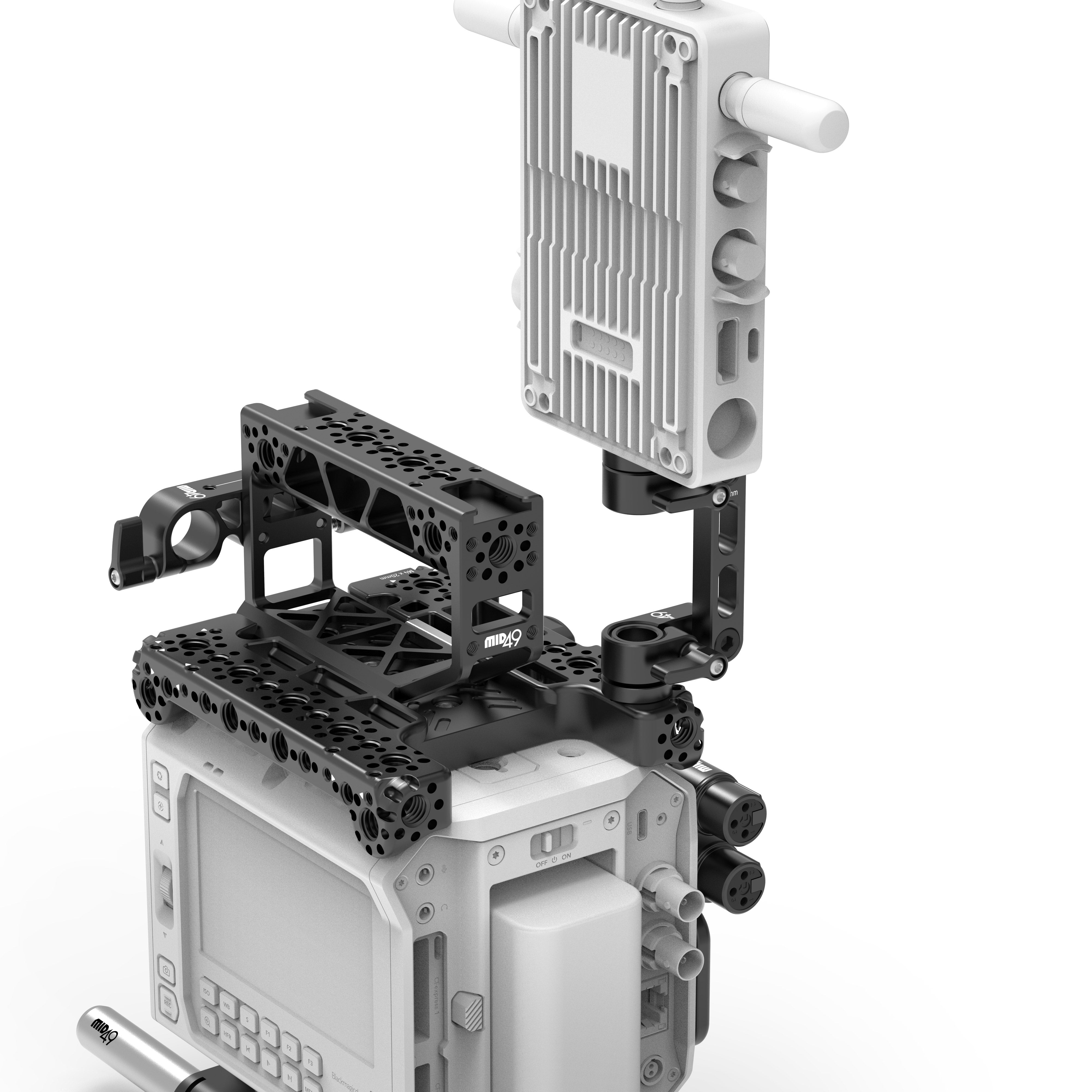

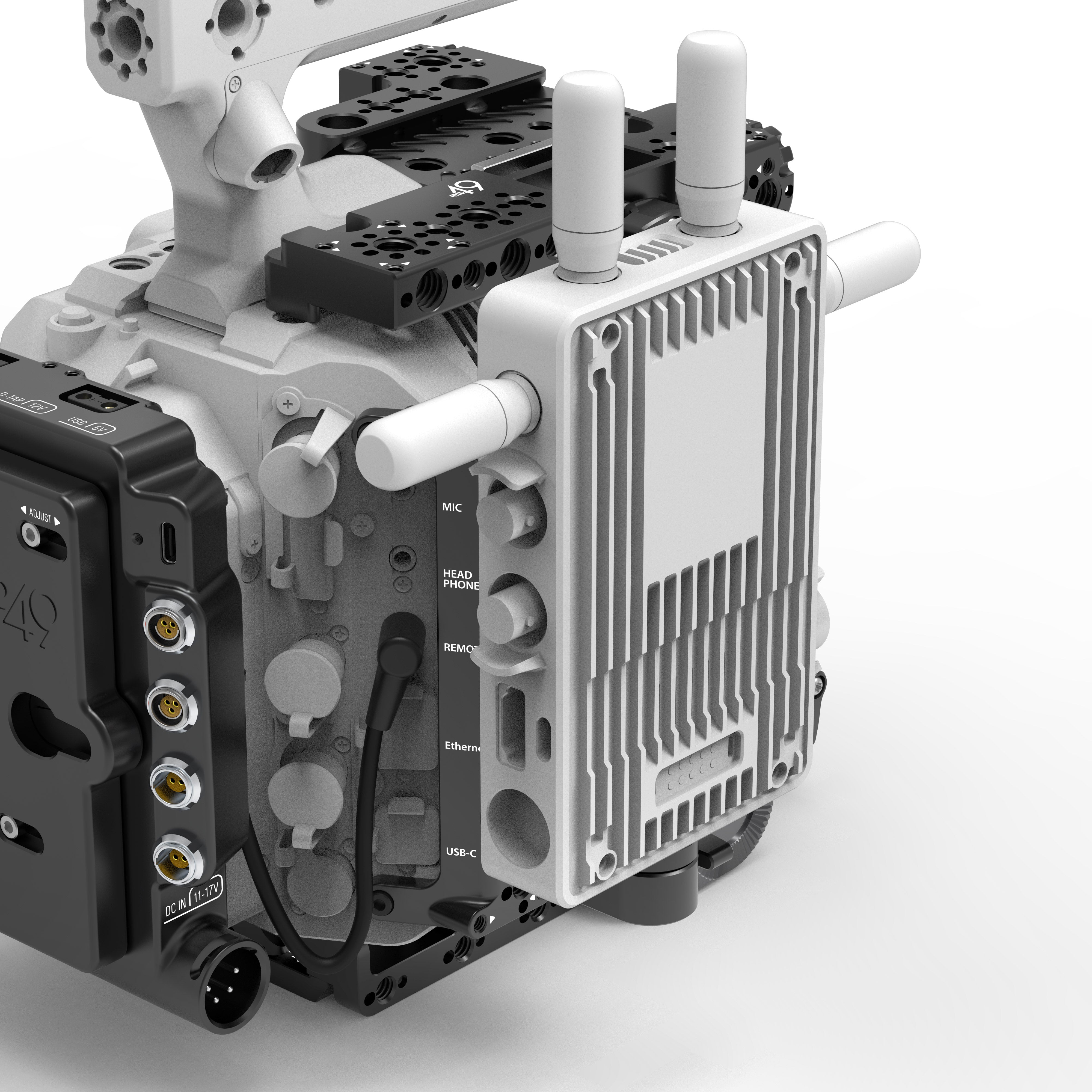

The Micro Rosette TWIST Mount Kit (1/4-20 to 3/8-16) is a modular accessory mounting arm with a quick-release 1/4-20 spud on one end and a 3/8-16 spud on the other, allowing attachment of a wireless transmitter, monitor, audio receiver, and more to a camera.

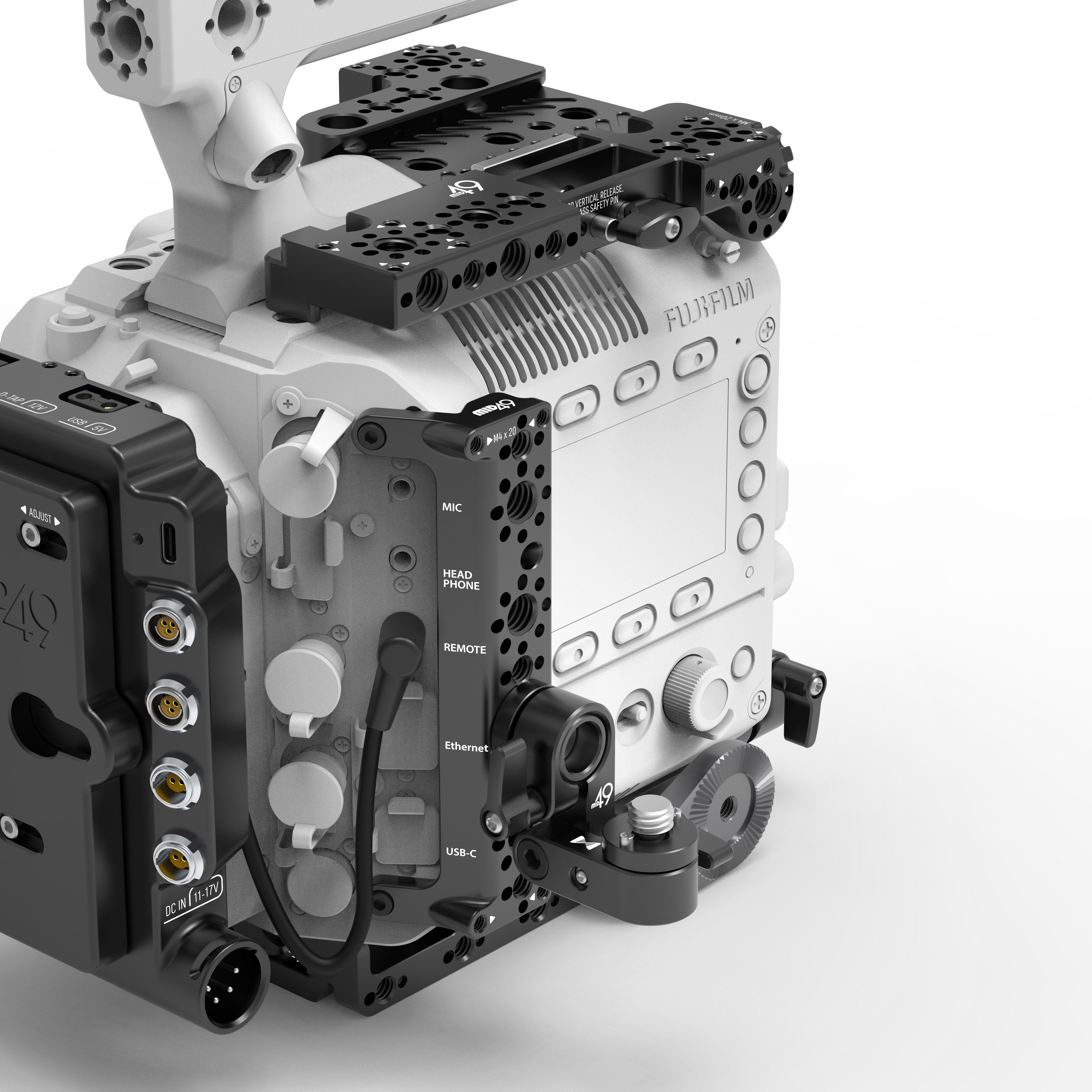

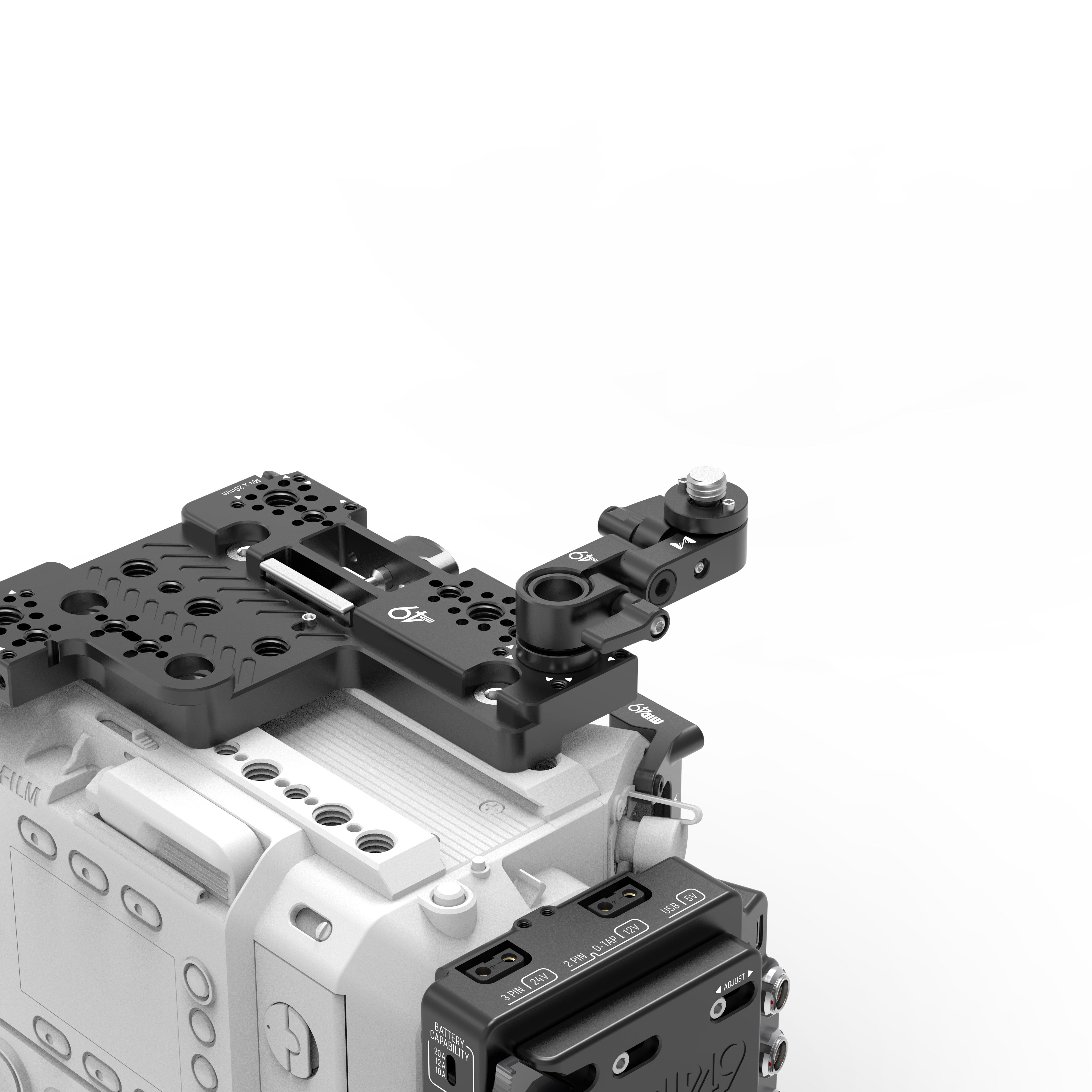

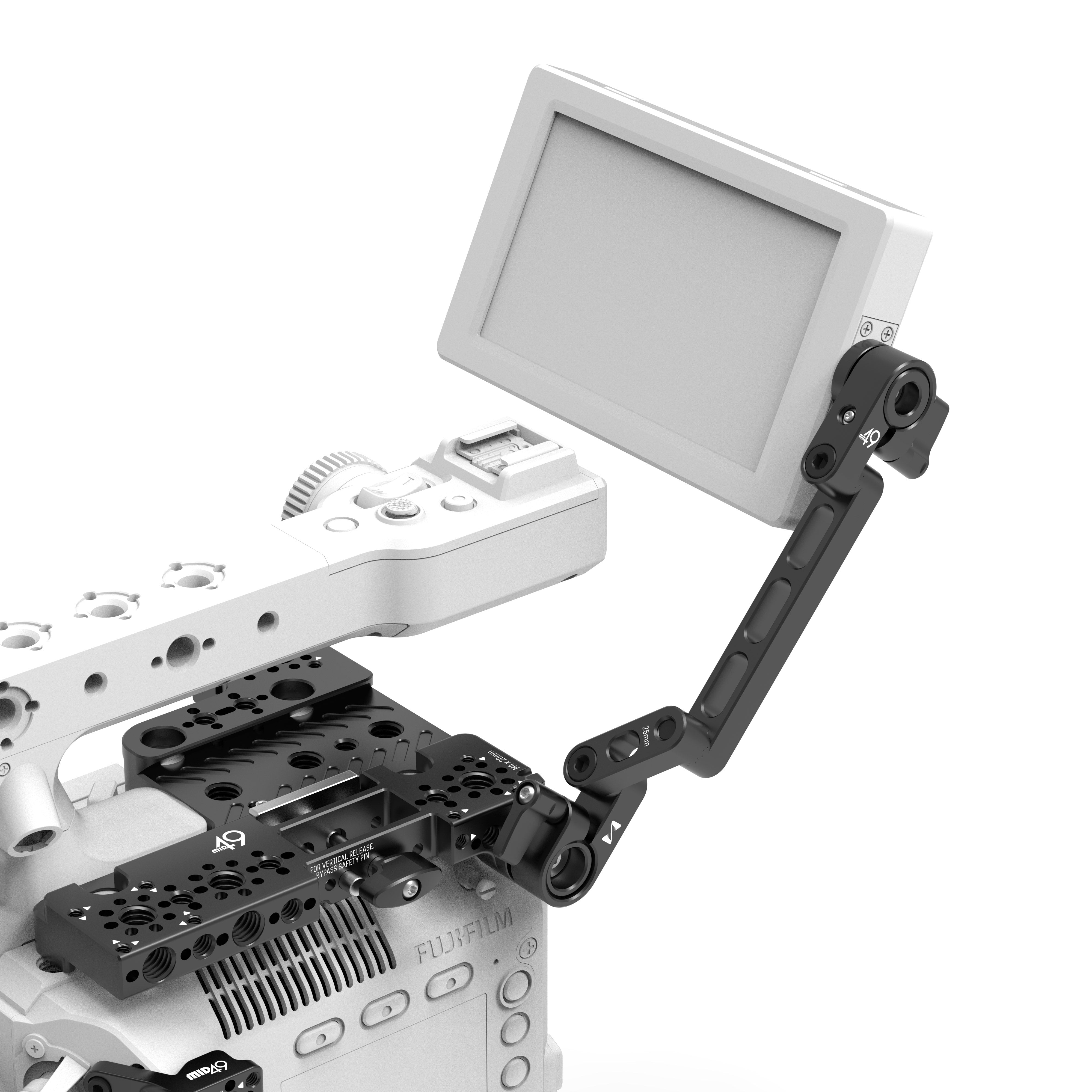

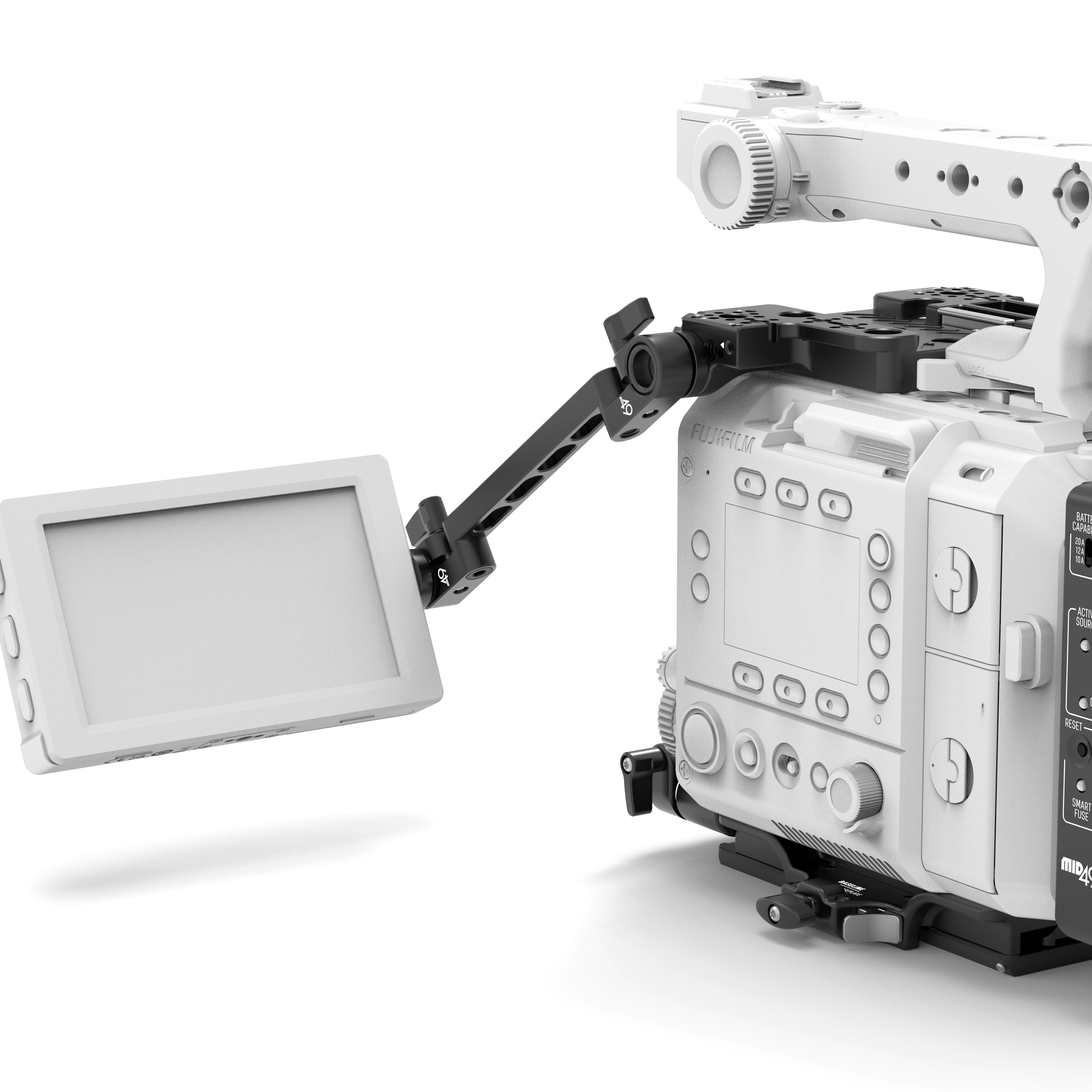

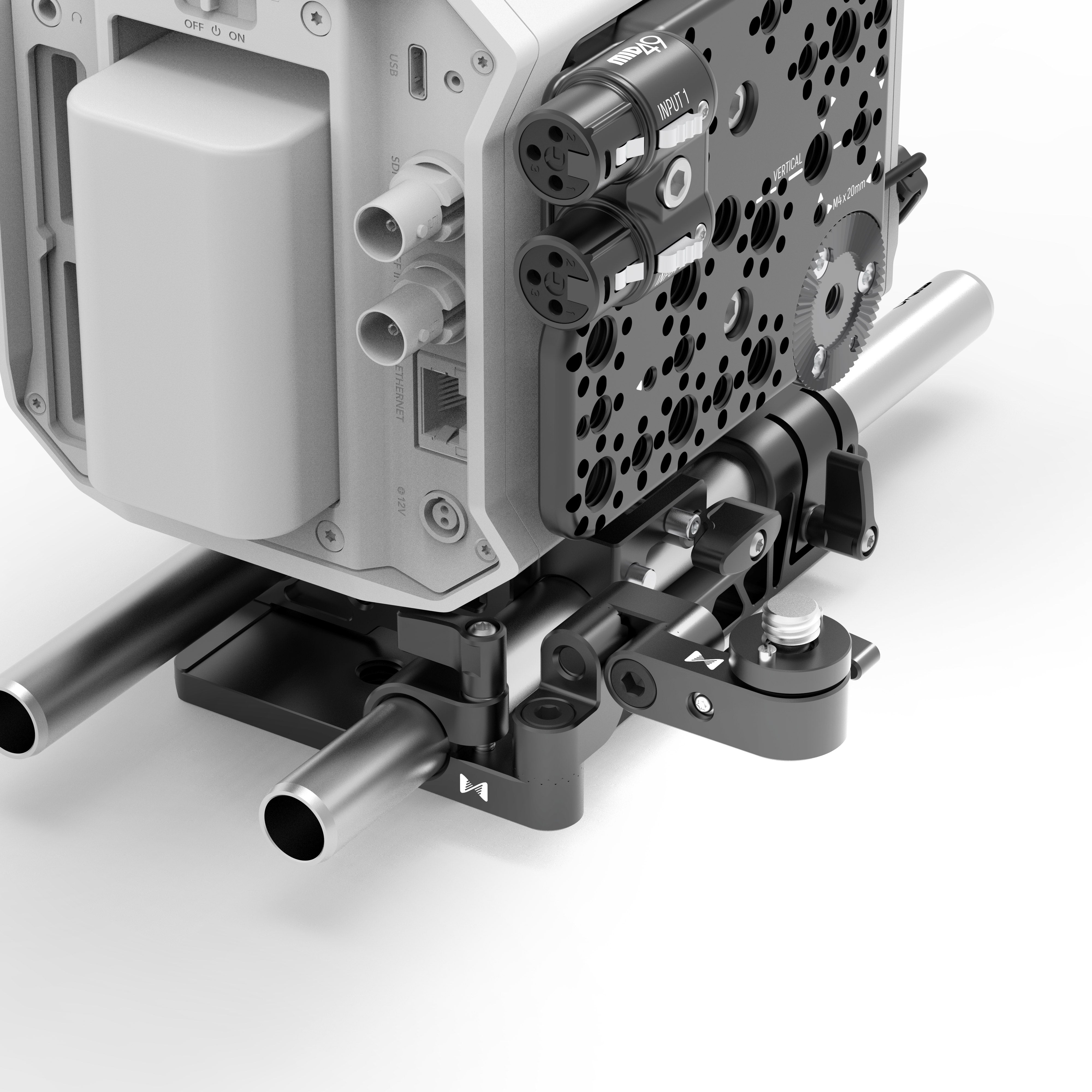

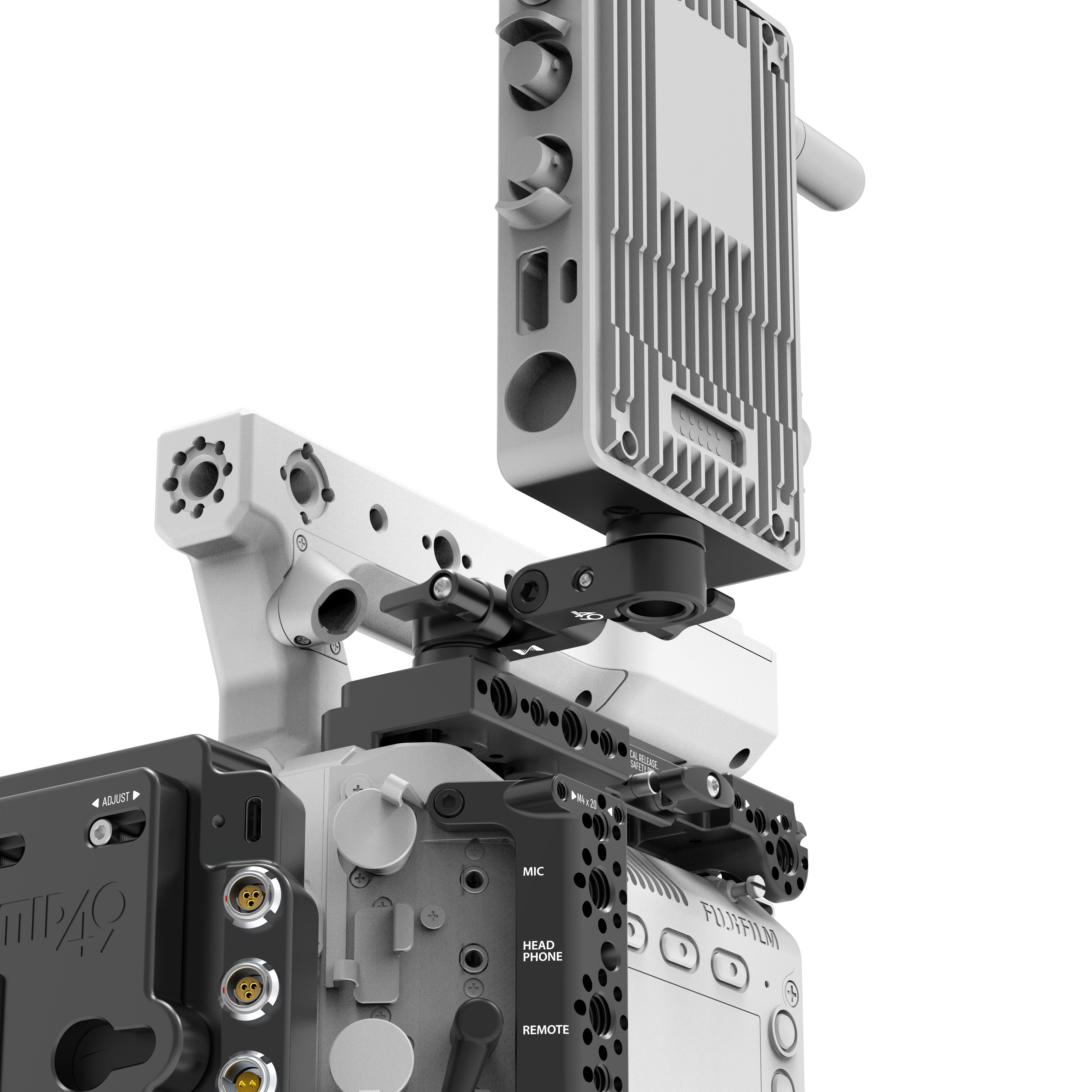

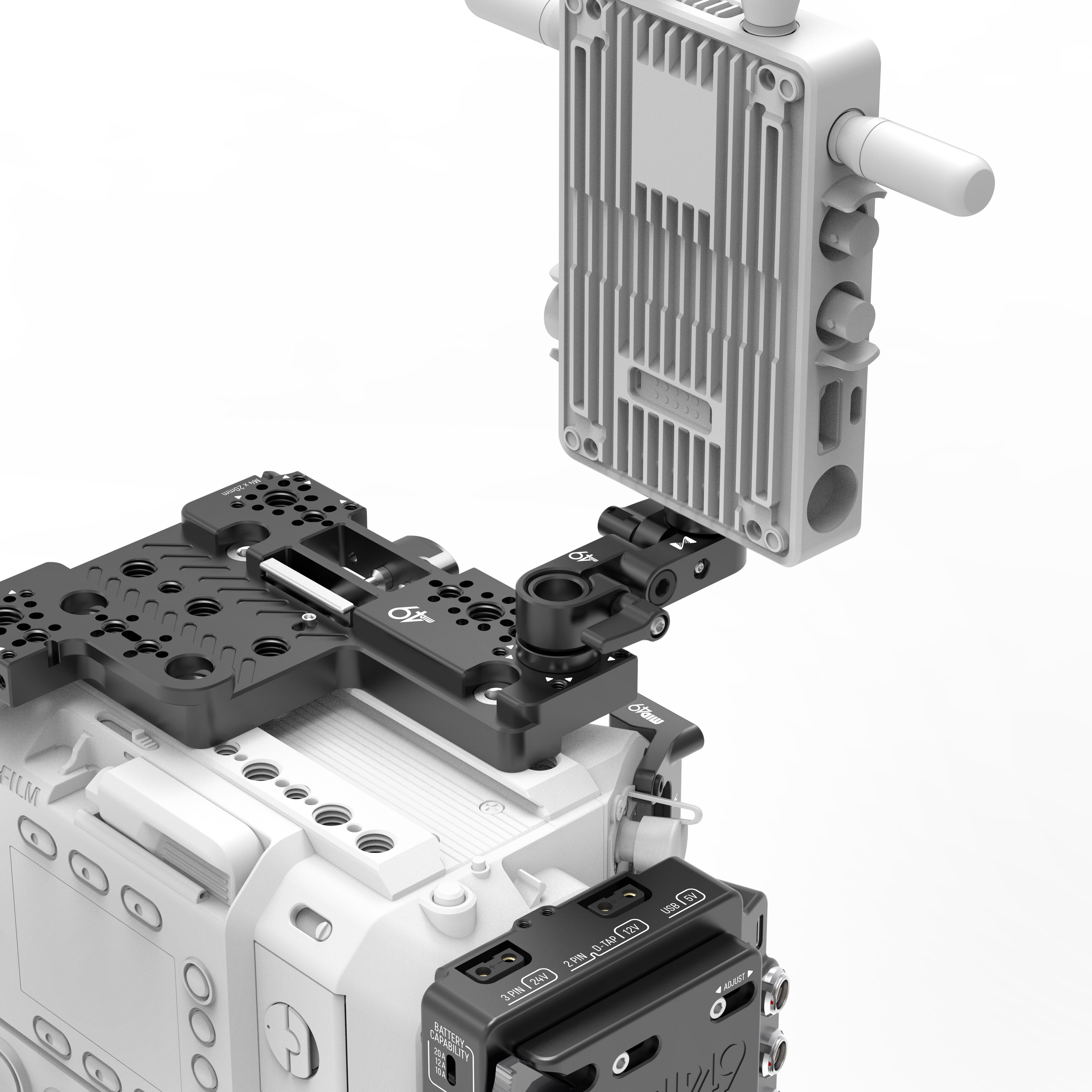

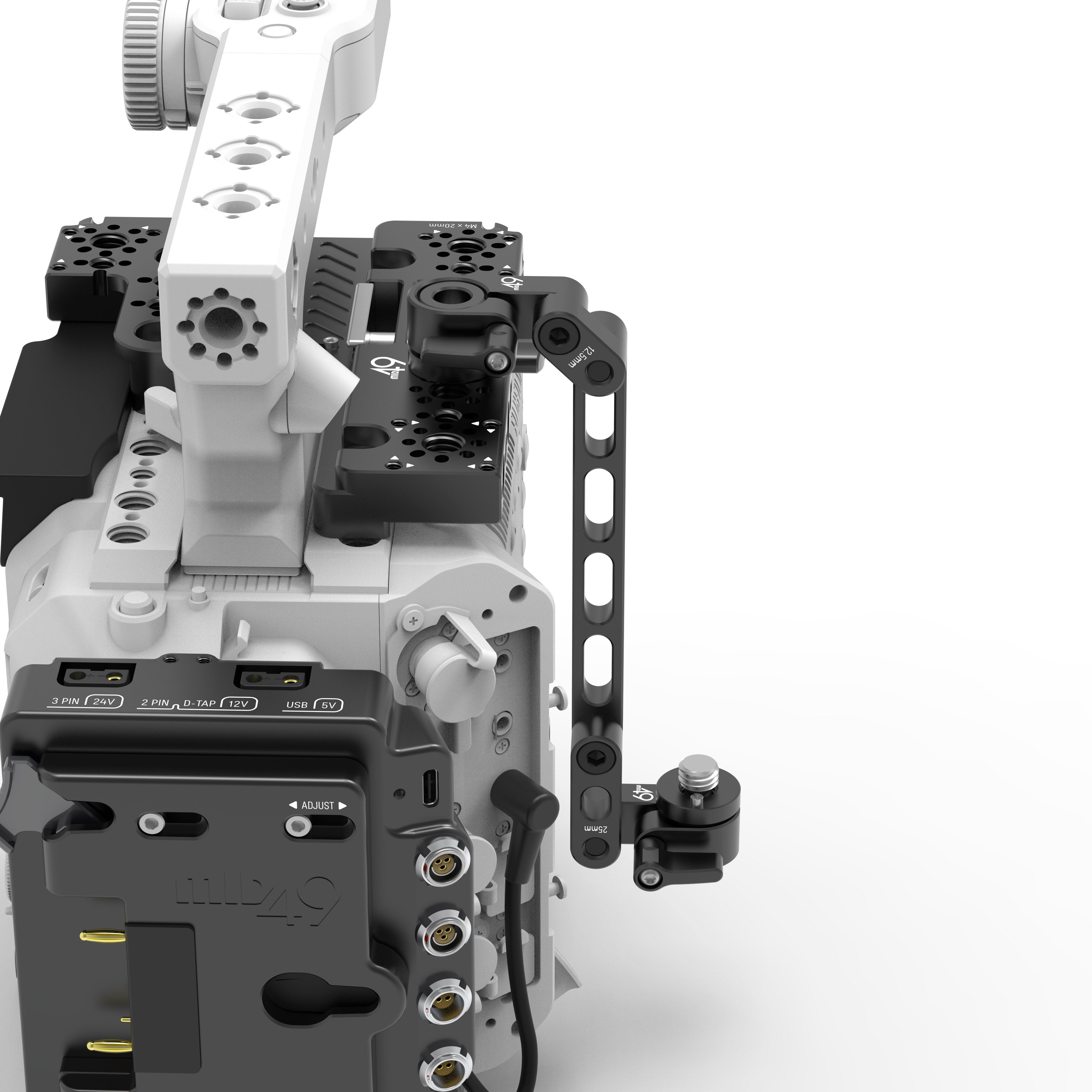

Install the bottom spud on your camera or cheeseplate and the top spud on your monitor or accessory, then link them together with a Micro Rosette Arm.

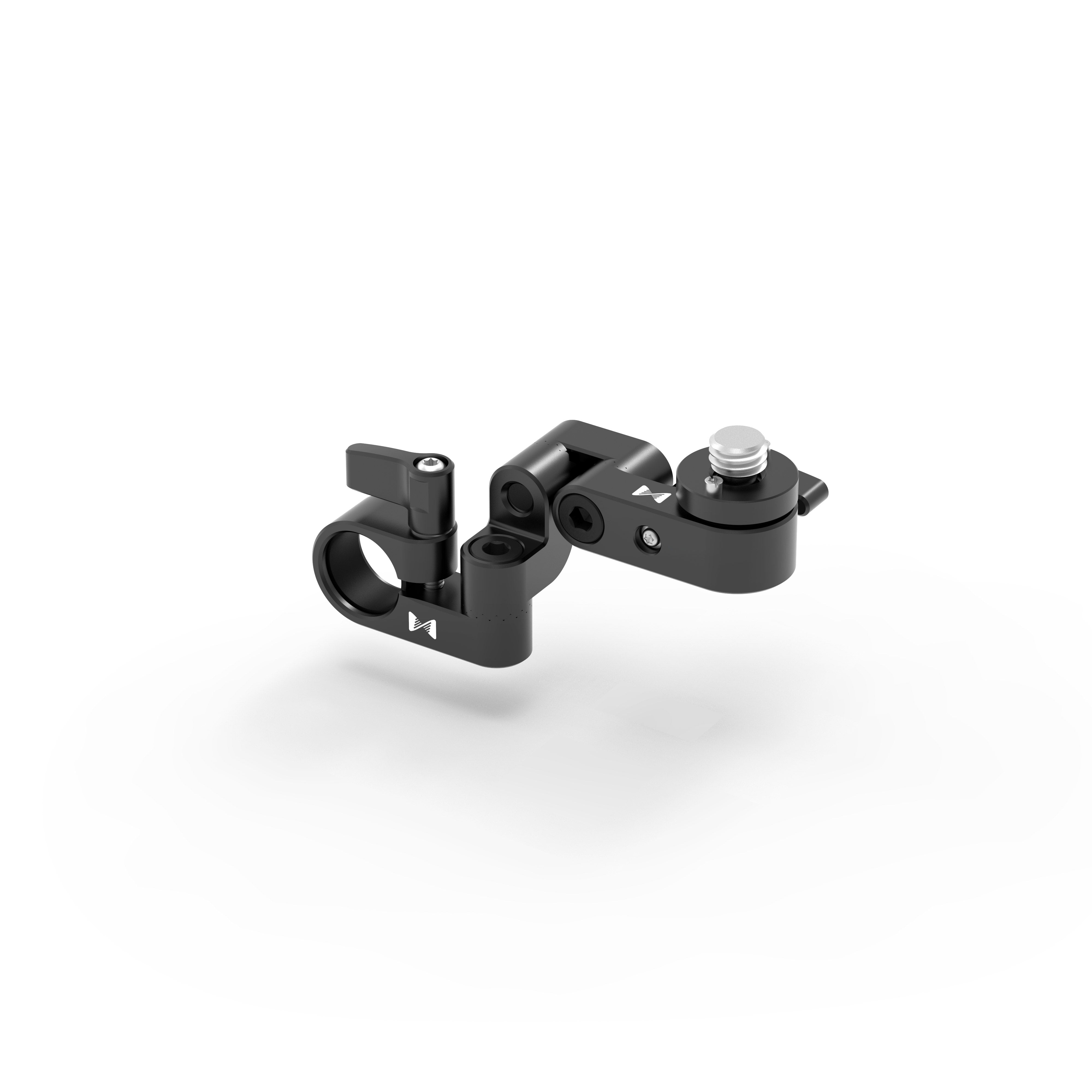

Micro Rosette to TWIST Mount clamps have a variable friction design, so you can grab and twist the arm or accessory without loosening a thumbscrew.
Included ARRI 1/4-20 Spud has removable 3mm locating pins in ARRI standard 10.4mm spacing. Pins can also be installed with 15mm spacing, which is found on some 3rd party products.
The 3/8-16 Spud has removable 3mm locating pins in ARRI standard 15mm spacing.

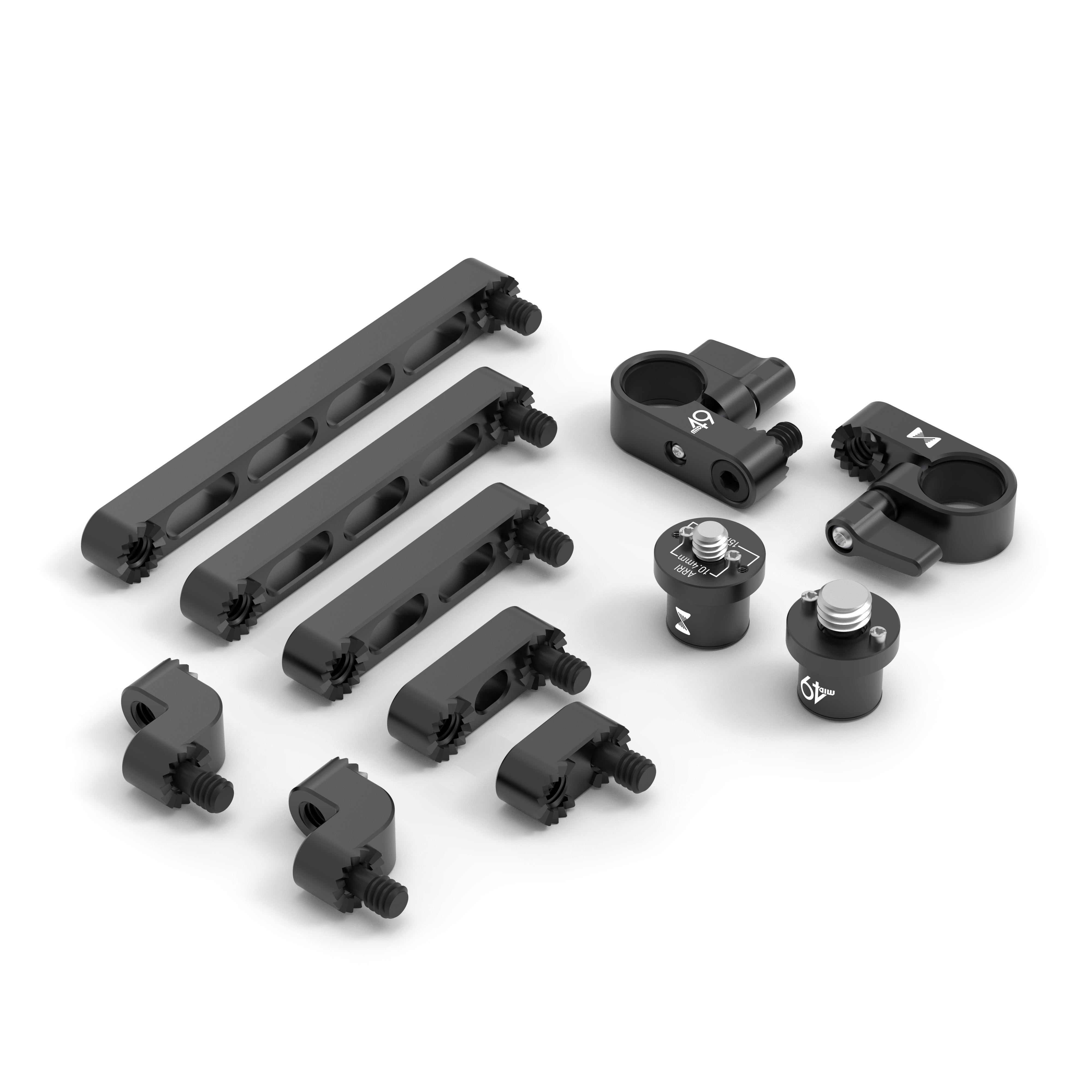

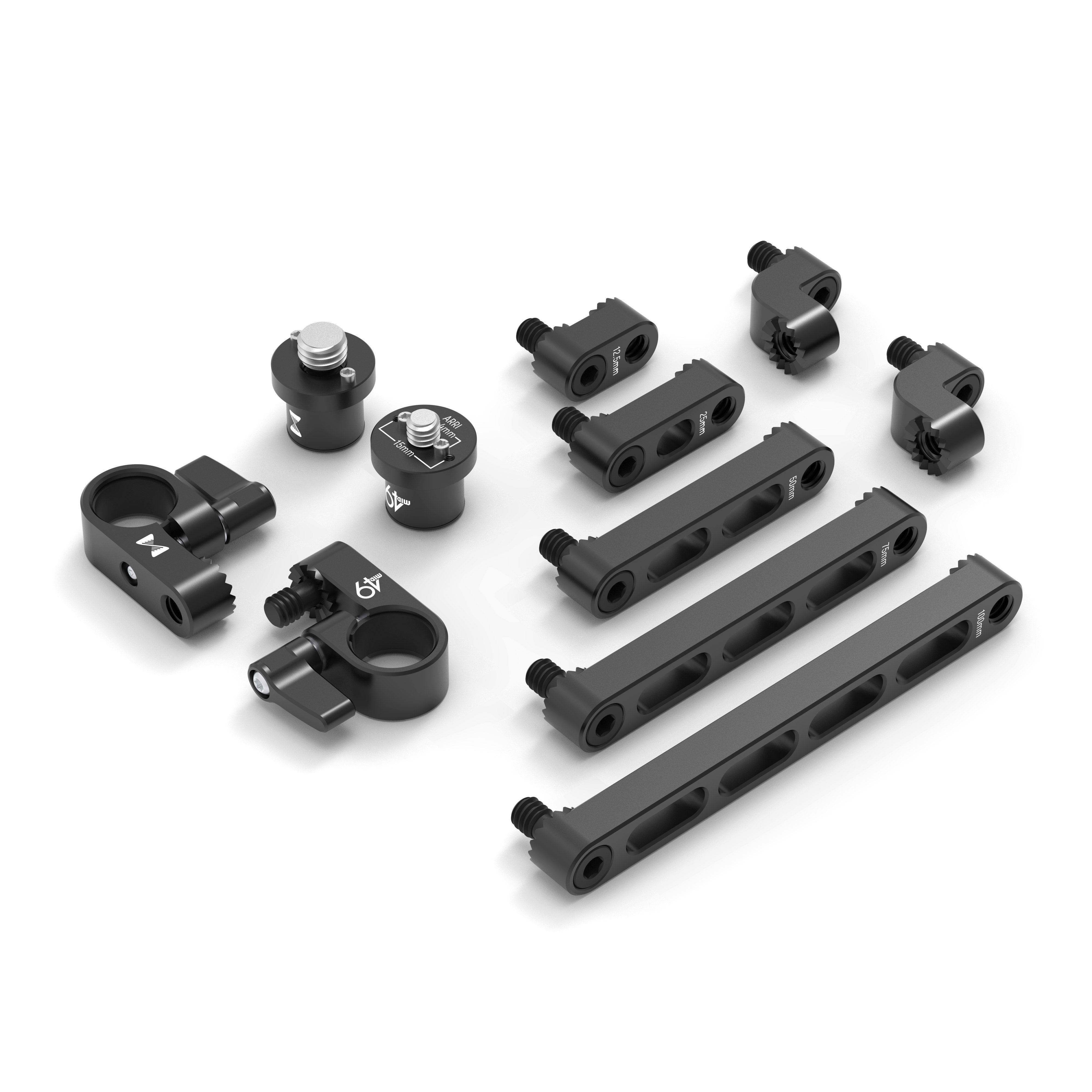

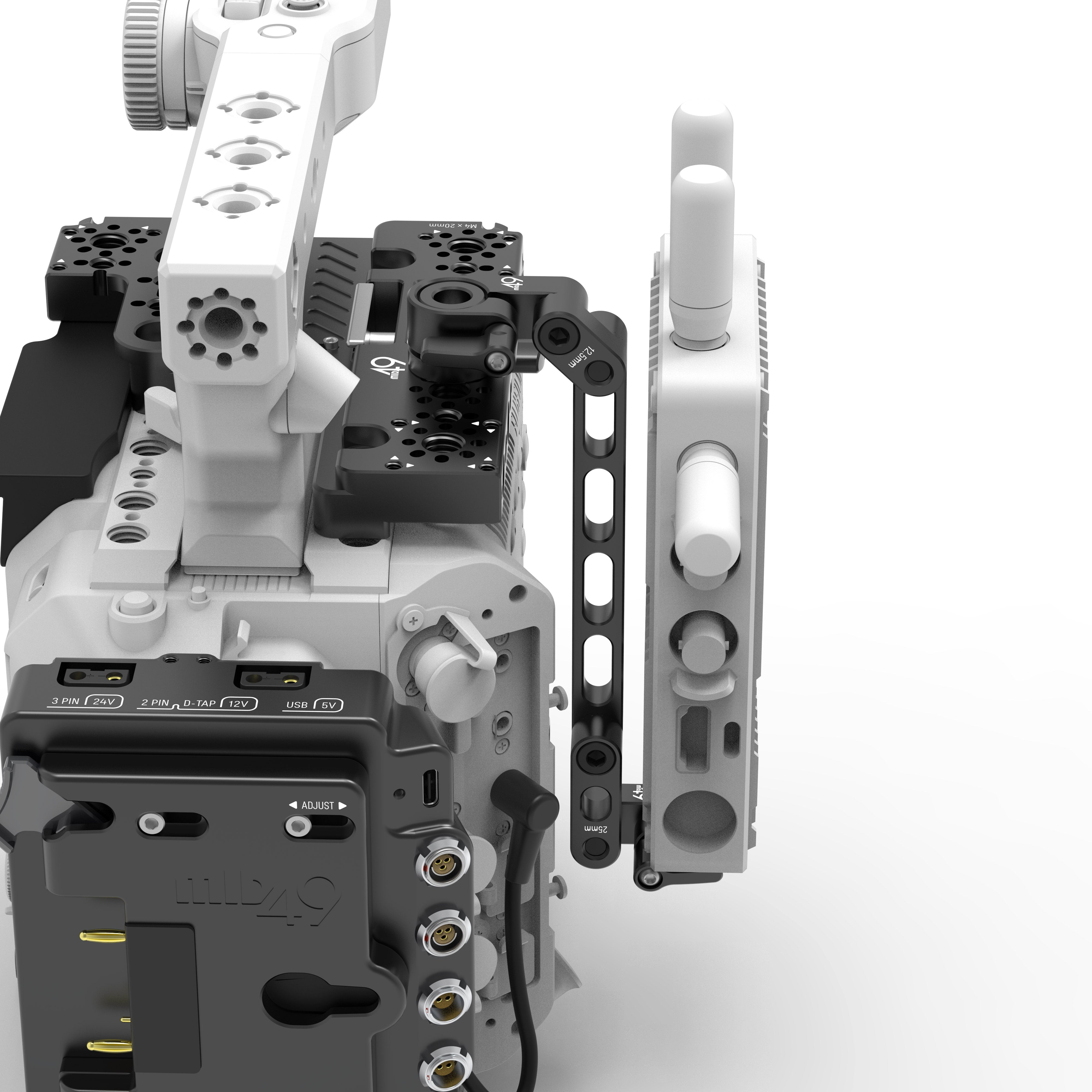

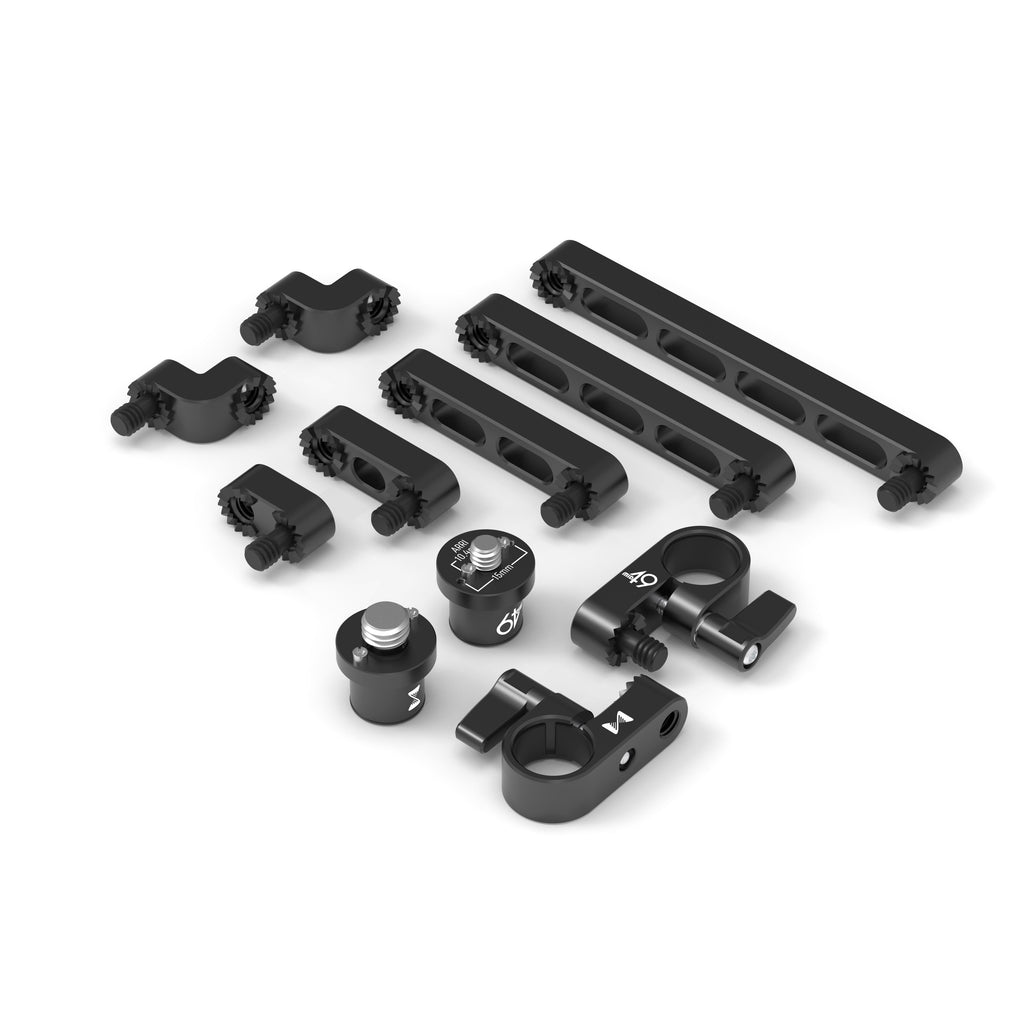

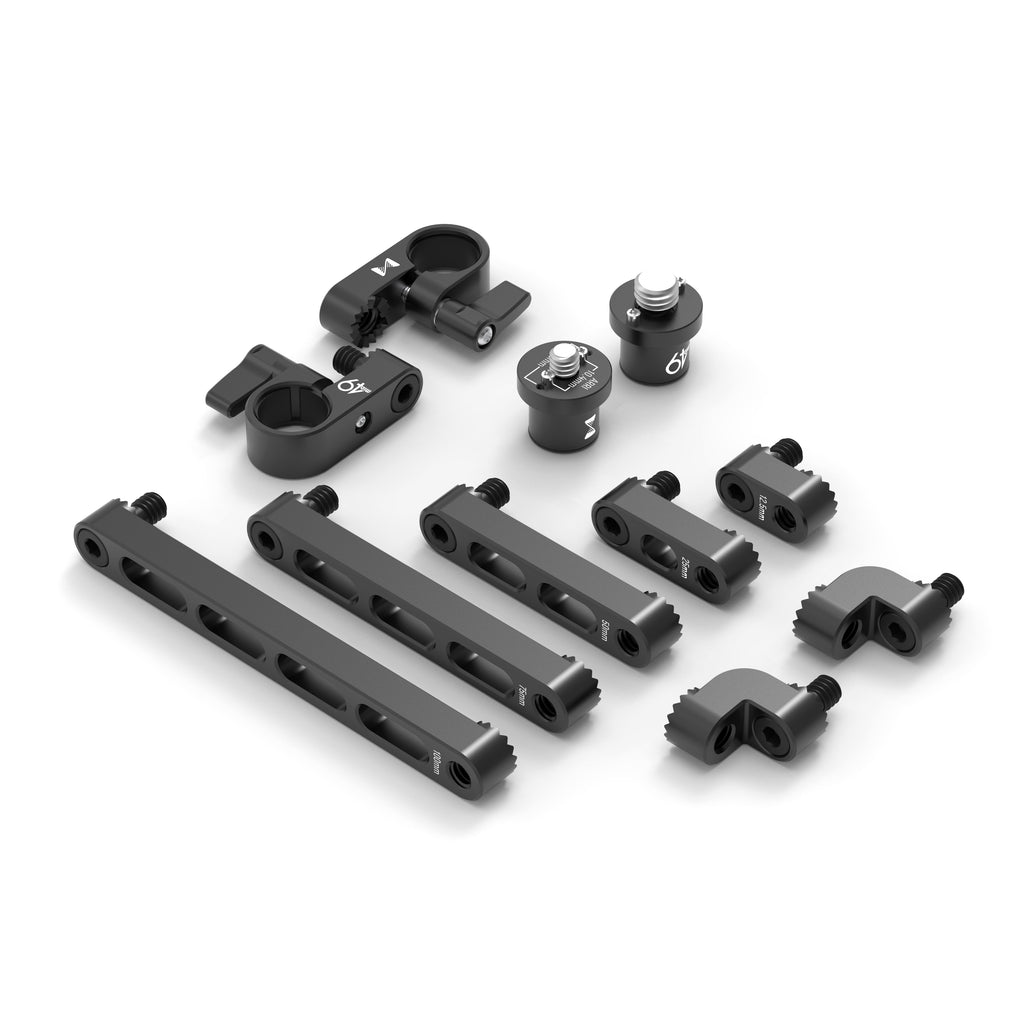

Extension arms have serrated teeth to allow for angled configurations in increments of 22.5º, a captive 1/4-20, and lengths of 12.5mm, 25mm, 50mm, 75mm, and 100mm.

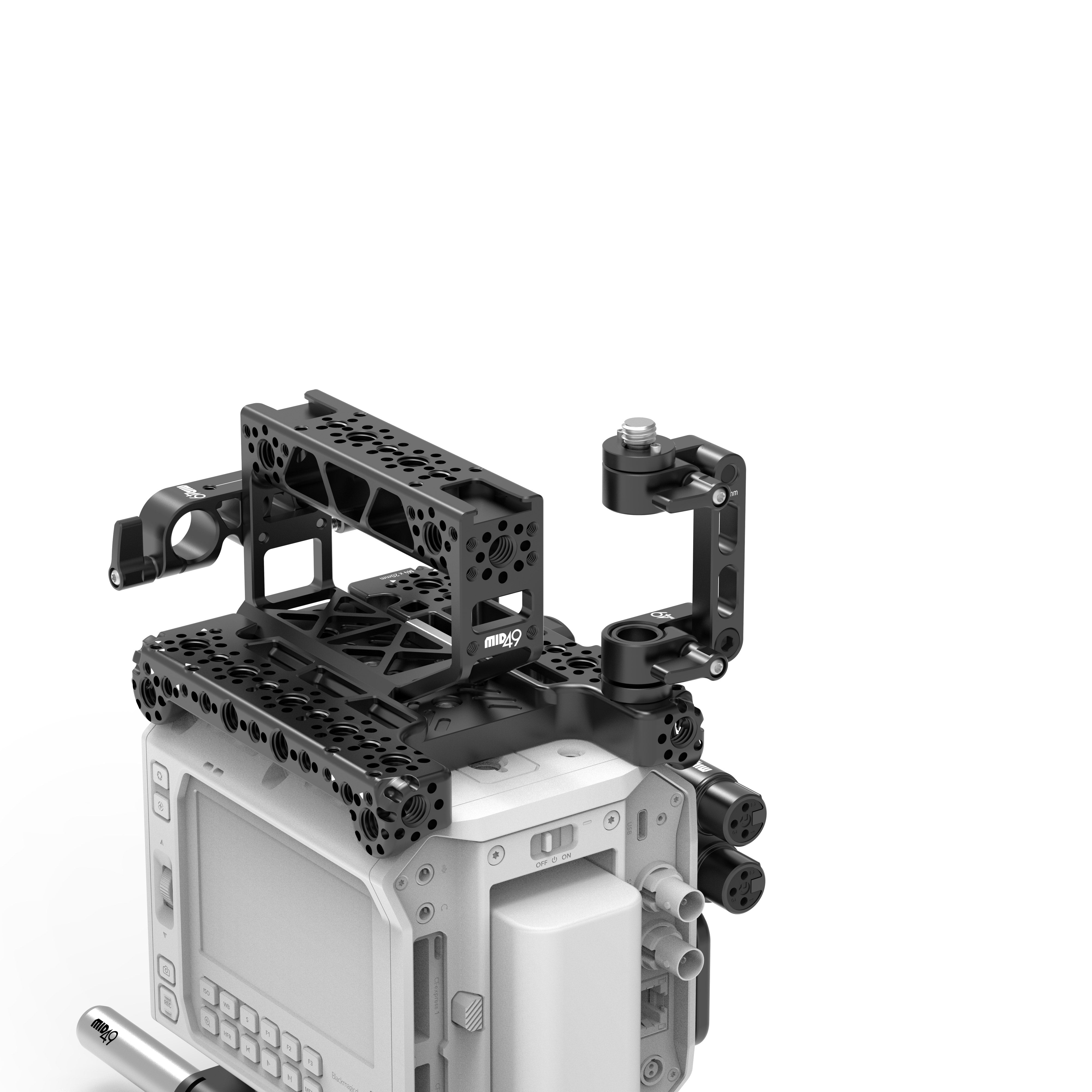

Two 90º bend pieces are also included for off-axis configurations.
